Widely Used Low Noise Nail Machine, Automatic Nail Making Machine Hot Sale in Nigeria/Algeria/Egypet/Ethiopia
Xuchang Hongshuo Machinery Co., Ltd.- After-sales Service：Video Technical Support, Online Support etc
- Warranty：2 Years
- Transport Package：Wooden Cases or Sea Worthy
- Specification：low carbon steel
- Trademark：hongshuo
- Origin：China
Base Info
- Model NO.：Z94-5.5C,4C,3C,2C,1C
- Production Capacity：200PCS,Month
Description
Basic Info.
Model NO. Z94-5.5C/4C/3C/2C/1C Production Capacity 200PCS/MonthProduct Description

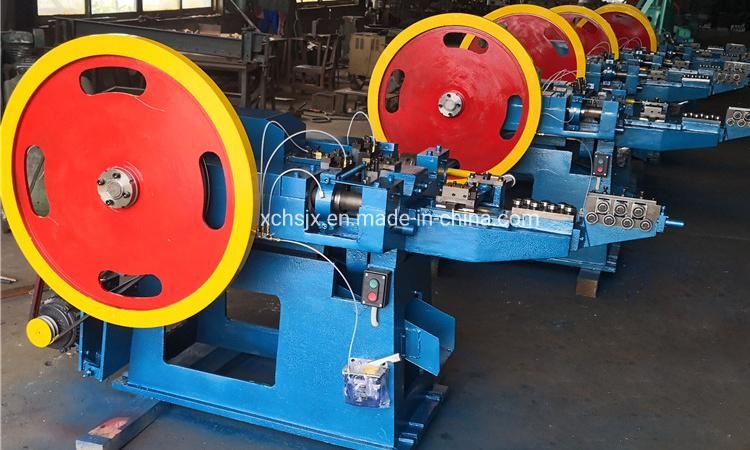

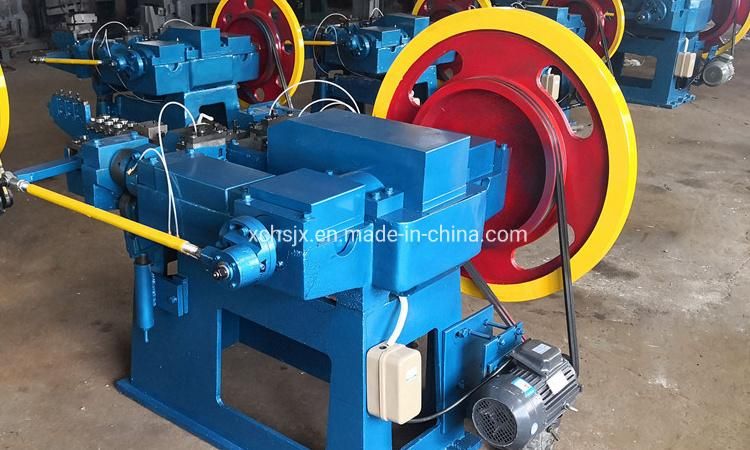

Product Photos
Product Description
This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.
Product Parameters
| Model | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Max. dia. of nail | 5.5mm | 4.5mm | 3.5mm | 2.8mm | 1.6mm |
| Min. dia. of nail | 3.8mm | 2.8 mm | 1.8 mm | 1.2 mm | 0.9 mm |
| Max. Length of nail | 150mm | 100mm | 75mm | 50mm | 25mm |
| Min. length of nail | 80mm | 50 mm | 30mm | 16mm | 9mm |
| Motor power | 5.5kw | 4kw | 3kw | 2.2kw | 1.5kw |
| Nail making speed | 220pcs/min | 260pcs/min | 320pcs/min | 380pcs/min | 450pcs/min |
| L*W*H | 2.5*1.6*1.5m | 2.2*1.6*1.65m | 2.0*1.4*1.4m | 1.7*1.3*1.4m | 1.5*1.3*1.2m |
| Weight | 2.1tons | 1.8 tons | 1.5 tons | 1.15 tons | 0.8 ton |
| Output | 2000kg/8h | 1500kg/8h | 800kg/8h | 500kg/8h | 80kg/8h |

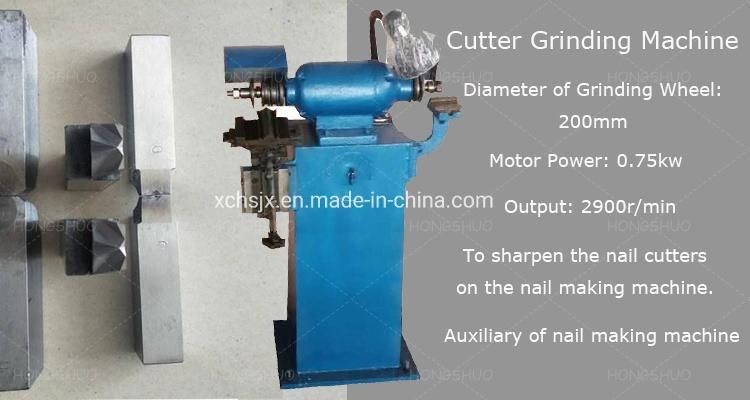

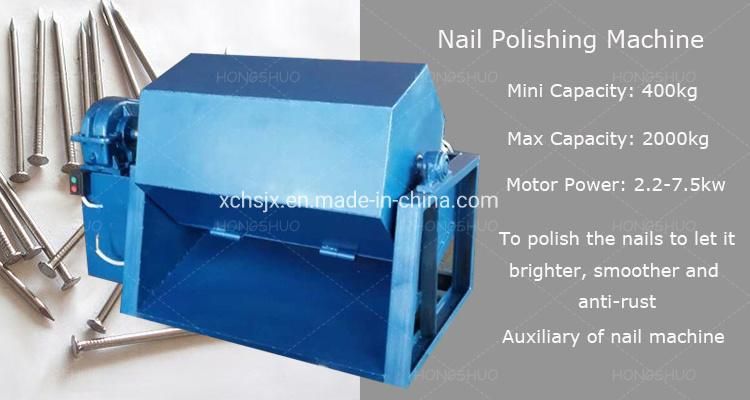

Auxiliary Equipment

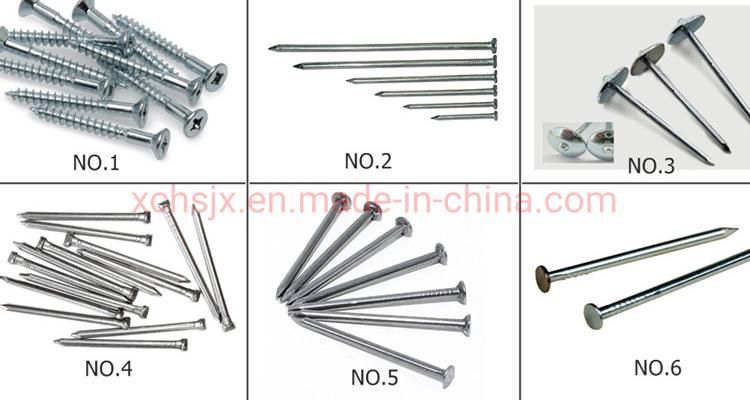

End Product
Company Overview
Remarks:
1. The payment terms: 30% deposit by T/T, 70% balance should be paid before shipment.
2. Delivery time: 10days after receiving 30% deposit.
3. Warranty time: Two years (wearing parts are not included in the warranty scope.)
