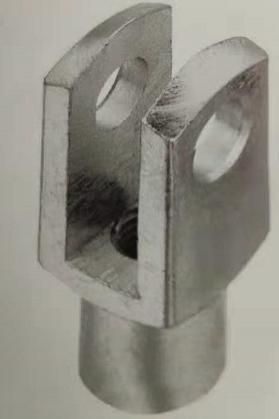

• Model NO.：GC4-20
• Material：Low Carbon
• Application：Metal Processing Machinery Parts
• Transport Package：0
• Specification：diameter: 0.625 inch male thread: M10RH
• Trademark：0
• Origin：Made in China
• Production Capacity：100000

ModelM ThreadS1L1L2
-0.16
+0.3L3
-0.15
+0.7S2
±0.3l1
±0.5l2
±0.4l3
±0.2WeightGC4x8M4x0.74884821865GC4x16M4x0.7481648291667GC5x10M5x0.8510105926107.59GC5x20M5x0.8510205936207.513GC6x12M6x1612126103112915GC6x24M6x1612246104324921GC8x16M8x1.258161681442161237GC8x32M8x1.258163281458321254GC10x20M10x1.5102020101852201574GC10x40M10x1.51020401018724015116GC12x24M12x1.751224241220622418121GC12x48M12x1.751224481220864818175GC14x28M14x21428281424722822.5178GC14x56M14x214285614241015622.5258GC16x32M16x21632321626833224282GC16x64M16x216326416261156424411GC18x36M18x2.51836361830943627390GC20x40M20*2.520404020341054027550
PROUDCT DESCRIPTIONS:
1,Standard:DIN 71752/DIN IOS8140;
2,Code for thread:regular thread,left-handed-LH;fine-pitch thread-FG;fine-pitch thread,left-handed-FGLH;
3,Radius or 45° bevellin(at manufacture's choice)manufacturer's;
-Material:1.Low Carbon steel 1020;2.Alternative:Stainless steel 304
-Surface protection:Polished and oiled;Optional:electroplated galvanized ,passivated in white-blue or yellow.
