• Model NO.：18D
• HS Code：8463300000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. 18D HS Code 8463300000 Production Capacity 10 Sets/Month

Product Description

1. General description
This machine is used to drawΦ0.15-φ0.5mm copper wires.

2. Technical parameter

No.	Item	Specification
1	Inlet diameter	Max Φ1.6mm
2	Outlet diameter	Φ0.15-Φ0.5mm
3	Max speed of drawing	25m/s  (Φ 0.25mm)
4	Tower capstan diameter	Φ200mm
5	Capstan diameter	Φ200mm
6	Number of die	18
7	Outer Diameter of die	Φ25mm
8	Spooling bobbin size	PND250
9	Main motor power	15kW (AC)
10	Power of motor for double take up	2.2kW (AC )X2
11	Machine dimension	1700×1500×2700mm
12.	Anneal unit power	60V,400A (DC)

 3. Machine components

No.	Item	Quantity
1	Payoff stand	1 set
2	Main drawing machine with annealing	1 set
3	Steam generator	1 set
4	Electric control and operating desk	1 set

4. Detailed introduction:
4.1 Payoff stand1) Dimension of Payoff (mm) : 300 * 300 * 6502) Type: Over head4.2 Main drawing machine
1) Type: slip type.18-die copper wire drawing machine
2) Body structure: Body welded from Q235 plate molding, via annealed to remove internal stress, then by precision milling machine.
3) Inlet wire position on the left side of machine body panel, with 6 inlet wire holes. Outside installation sump.
4) Shaft material by 40CrMo steel, quenched HRC25-27, to ensure removal of internal stress, and improve the rigidity of the workpiece, with the Department by grinding to ensure concentricity and roundness balance.
5) The machine drives transmission by flat belts.

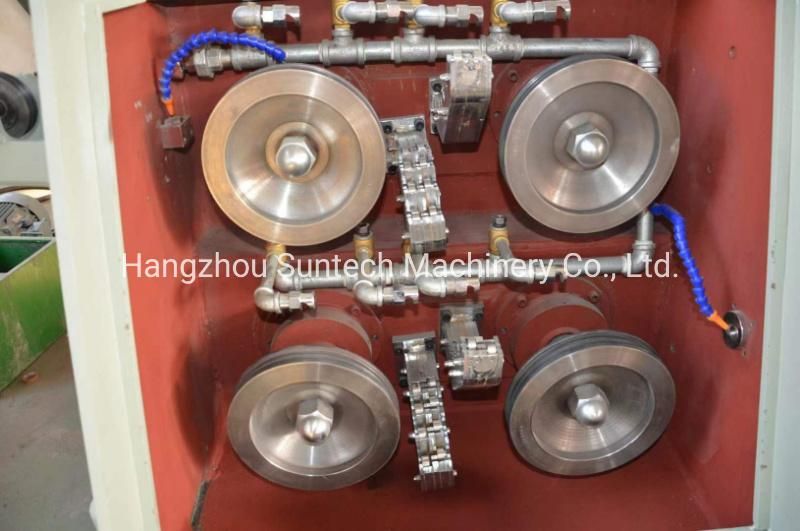

6) Using spray ceramic Capstan, double slot 4 layers 4 units and final Capstan single layer one unit.
7) First eye mold as an independent mold,the 2nd to the 17st eyes mode are pig iron casting, the body is small, increasing the lead to take working space.
8) Capstan and lubrication of wire drawing dies, at the top install movable pipe joints, does not affect the threading operation.
9) The drawing emulsion trough is provided with doors made of stainless steel, which prevent lubricant from overflowing.
10) Lubricant equipment:
Working pressure: 0.2 ~ 0.4 Mpa
Temperature: ≤30ºC
Rate of flow: 25 ~ 30(m3/h)
4.3 Annealing device
1) Type: vertical DC annealing, speed tracking automatically
2) Diameter of annealing inlet wire :Φ0.15mm-Φ0.5mm
3) Max linear speed of annealing: 20m/s
4) 3pieces-Diameter of annealing nickel-conducting ring: 200mm.
5) The stretching force of softening conductor is even and stable and reaches the international requirement of the stretching rate.
6) Annealing is a two-period process: preheating period and annealing period
7) Softening room is protected by steam with hand-operated pressure regulating valve.
The pressure of steam: 0.2Mpa
The dosage of steam: 15kg/h
8) Equipped with air-drying device which is hand-operated.
Working pressure: 0.6~0.7 Mpa
Flow quantity: 300 L/min
9) Annealing cooling adopts water circulatory cooling. Heat exchanger is cooled by the wire.
Flow: 25 m³/H
Working pressure of water: 0.2-0.4 Mpa
4.4   Φ250Double take-up
1) Spooling bobbin size: PND200~PND280
2) Max. take-up speed: 20m/s
3) Take-up motor: 2.2KW (AC)X2
4) 90W Belt-type synchronous motor cable, stability and fast response.
5) Traverse pitch is fixed.
6) Arm cushion detection, automatic correction coiling, tension can be adjusted according to wire diameter.
7) Uniaxial Quill nut is fixed spool.
8) Brake is pneumatic butterfly type.
 5. Electrical control system

No	Item	Brand
1	PLC	SIEMENS
2	Frequency converter	INOVANCE
3	Low-voltage apparatus	SCHNEIDER

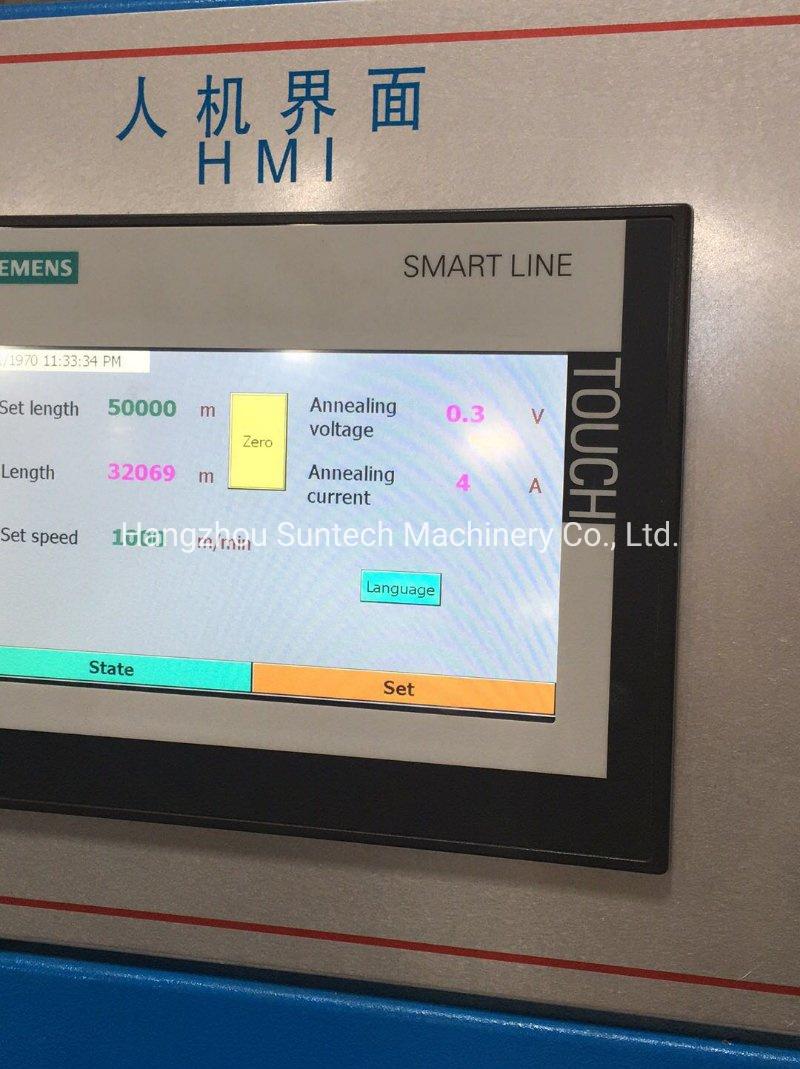

4	Touch screen	SIEMENS
5	BEARING	NSK, JAPAN
6	Motor	SIEMENS

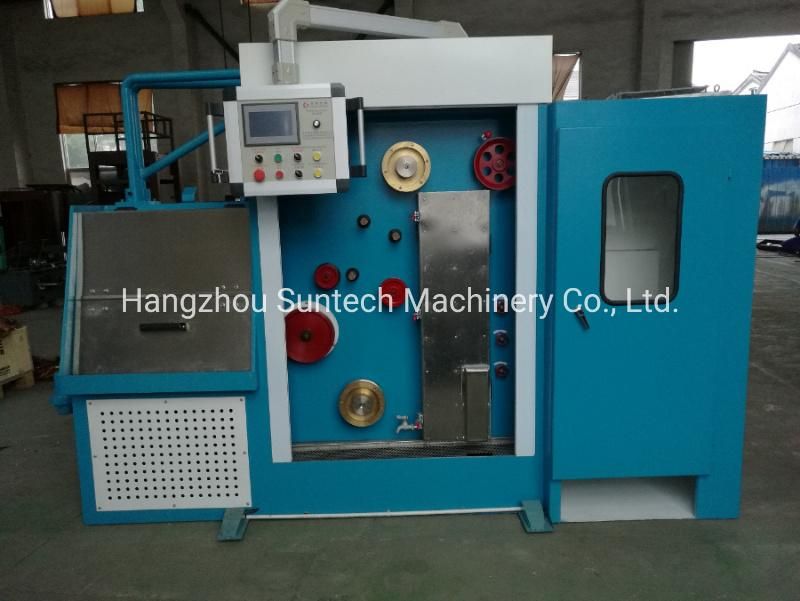

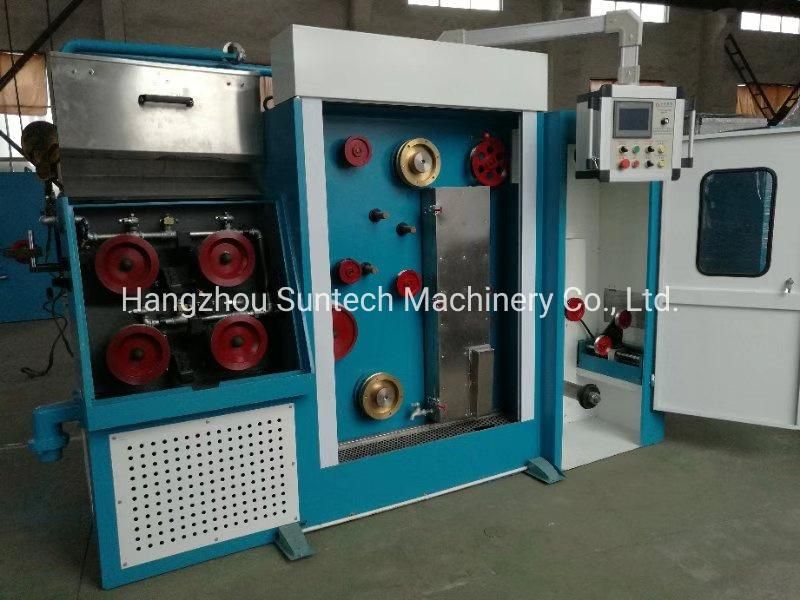

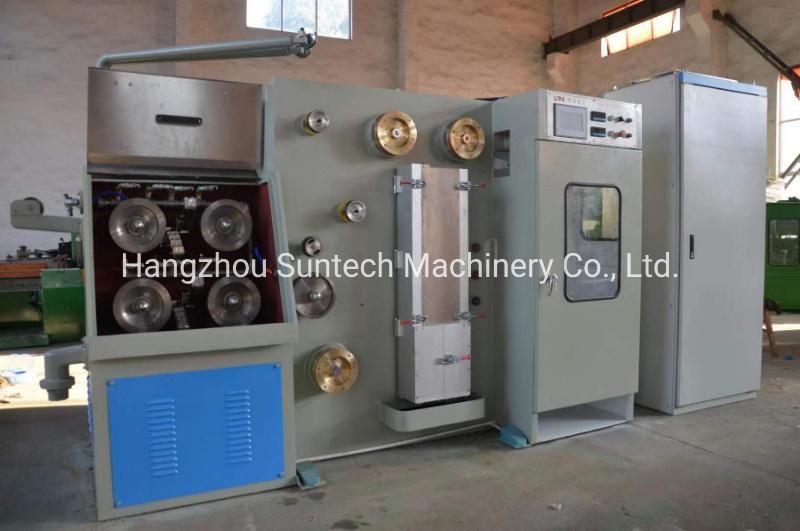

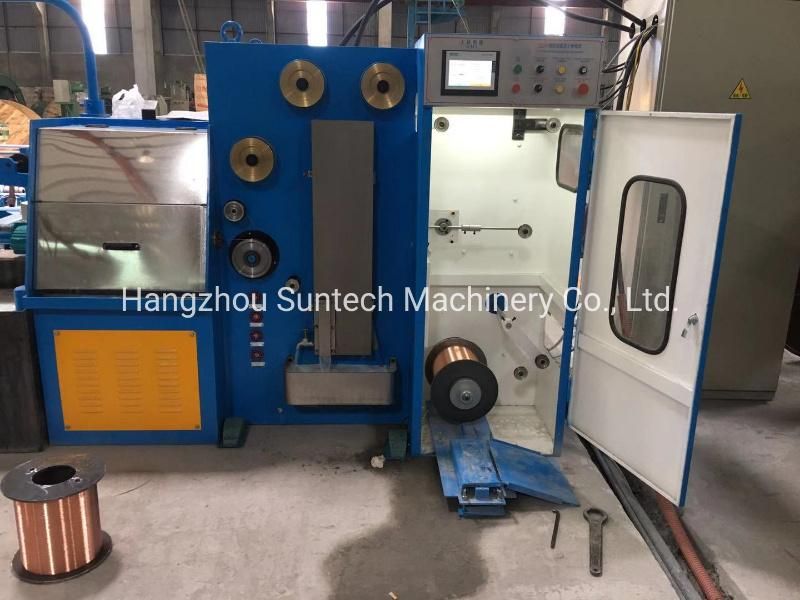

5. Reference photos:







6. Packaging & Shipping

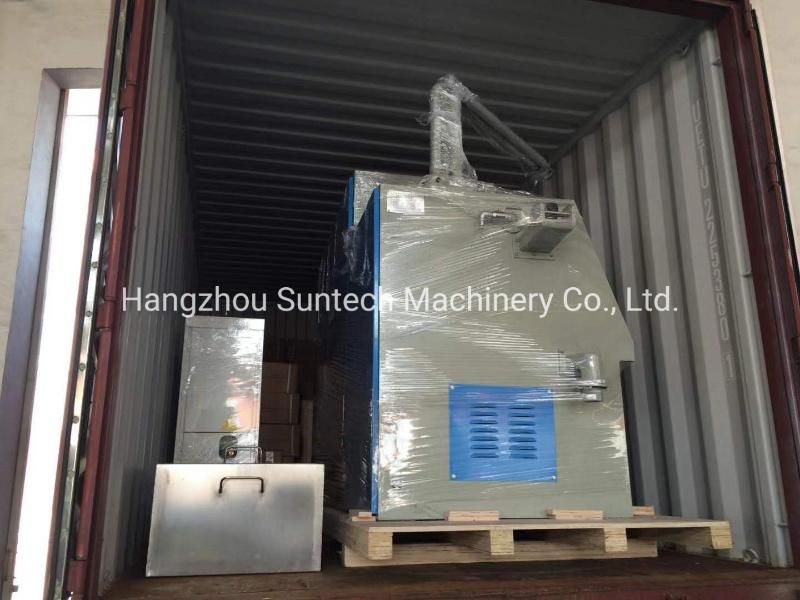

We can pack it by pallet, or according to the customers' specific requirements.

7. Our Services
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
1. Correct operating mode
2. Correct maintenance way
3. Remove simple problem

8. RFQ:
Dear customer,
Thanks for your viewing.
For better recommendation, pls tell us the follow information when sending us inquiry.
1. Wire material
2. Inlet and outlet wire diameter
3. Spool size for take up

Thanks and best regards
