• Model NO.：ESR-3050x2.5E ESR-3050x3.5E
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• length：3050 mm
• thickness：2.5,3.5
• Power：4.0 kW 5.5 kW
• Packing dimension (mm：384X82X142 cm 384X82X142 cm
• N.W./G.W. (kg)：1696 ,1986 kg 1958 ,2248 kg
• Color：optional
• delivery：20 days
• Usage：rolling forming machinery
• Function：electirc slip roll machine
• Product Name：Rolling Forming Machinery (ESR-3050X2.5E ESR-3050X
• Transport Package：Plywood Case
• Specification：3050 mm length
• Trademark：Lzuhong Brand
• Origin：China
• HS Code：8462299000
• Production Capacity：500 Pieces,Months

Basic Info.

Model NO. ESR-3050x2.5E ESR-3050x3.5E Customized Customized Advantage Easy to Maintenance Condition New length 3050 mm thickness 2.5/3.5 Power 4.0 kW 5.5 kW Packing dimension (mm 384X82X142 cm 384X82X142 cm N.W./G.W. (kg) 1696 /1986 kg 1958 /2248 kg Color optional delivery 20 days Usage rolling forming machinery Function electirc slip roll machine Product Name Rolling Forming Machinery (ESR-3050X2.5E ESR-3050X Transport Package Plywood Case Specification 3050 mm length Trademark Lzuhong Brand Origin China HS Code 8462299000 Production Capacity 500 Pieces/Months

Product Description

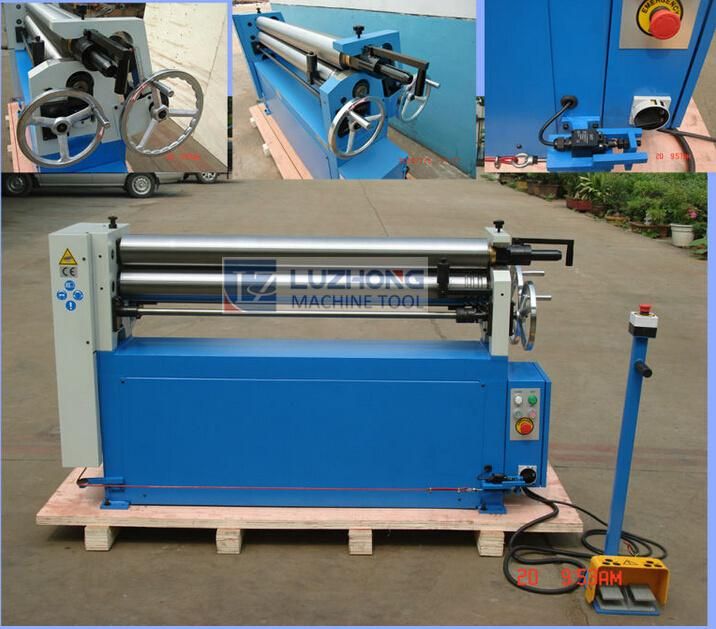

Rolling Forming Machinery (ESR-3050x2.5E    ESR-3050x3.5E Electirc Slip Roll Machine )

Features:
1. Standard series wire core groove
2. Top roll swing out across cam lock
3. Supplied with conical bending feature
4. Fixed top roller, adjustable lower and rear rollers
5. Asymmetrical roll bending machine with 3 high strength steel rolls
6. Electric lifting of back roller
7. Digital indicator of back roller position
Specification:

Model	ESR-2550x2.5E	ESR-2550x3.5E	ESR-3050x2.5E	ESR-3050x3.5E
Max. rolling thickness	2.5 mm	3.5mm	2.5mm	3.5 mm
Ma. Rolling width	2510 mm	2510 mm	3010 mm	3010 mm
Dia. of roller	140 mm	150 mm	160 mm	170 mm
Min. rolling dia.	160 mm	170 mm	180 mm	190 mm
Motor power	3.0 kW	3.0 kW	4.0 kW	5.5 kW
Roller speed @50 Hz	6.4 rpm	6.4 rpm	6.4 rpm	6.4 rpm
Roller speed @60 Hz	7.8 rpm	7.8 rpm	7.8 rpm	7.8 rpm
Packing size	334x82x142 cm	334x82x142 cm	384x82x142 cm	384x82x142 cm
N.W./G.W.	1508 /1750 kg	1529 /1771 kg	1696 /1986 kg	1958 /2248 kg

Accessories:
Standard accessories:
Electric lifting of back roller
Digital indicator of back roller position
Optional accessories:
N


 Product Line:



Rolling Forming Machinery (ESR-3050x2.5E    ESR-3050x3.5E Electirc Slip Roll Machine )
All of our machines are subject to strict quality control.Especially in the production process.



The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:



1.High strength Casting making .

2.Processing production.

3.High precision quenching process.

4.Assembling process.

5.Spray paint process.

6.And also the finished product come out .



FAQ:



1.Why choose us ?



We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.

We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)

We go the full 24-hour performance and accuracy test before shipment.



2.What machines can be available in your factory?



We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .



3.What certifications you have ?



We have certifications like:CE certifications

CO certifications

ISO certifications and also CIQ certifications and so on .



4.What payment terms you can accept?

Mostly using TT.

But LC also available



5.What services you can offer ?



Warranty for one year .

English manual and video for machine using and maintenance.

OEM,ODM is available in our factory.

24 hours online technical service

Engineers available to service machinery overseas

Free customers training in our plant.
