• Model NO.：CY-EZ4
• Speed Accuracy：<5rpm
• Accelerated Speed：100~9999rpm,S
• Warranty：One Year
• Transport Package：Wooden Box
• Specification：8 inch
• Trademark：CY
• Origin：Zhengzhou
• HS Code：851410900
• Production Capacity：210 Sets Per Month

Basic Info.

Model NO. CY-EZ4 Speed Accuracy <5rpm Accelerated Speed 100~9999rpm/S Warranty One Year Transport Package Wooden Box Specification 8 inch Trademark CY Origin Zhengzhou HS Code 851410900 Production Capacity 210 Sets Per Month

Product Description

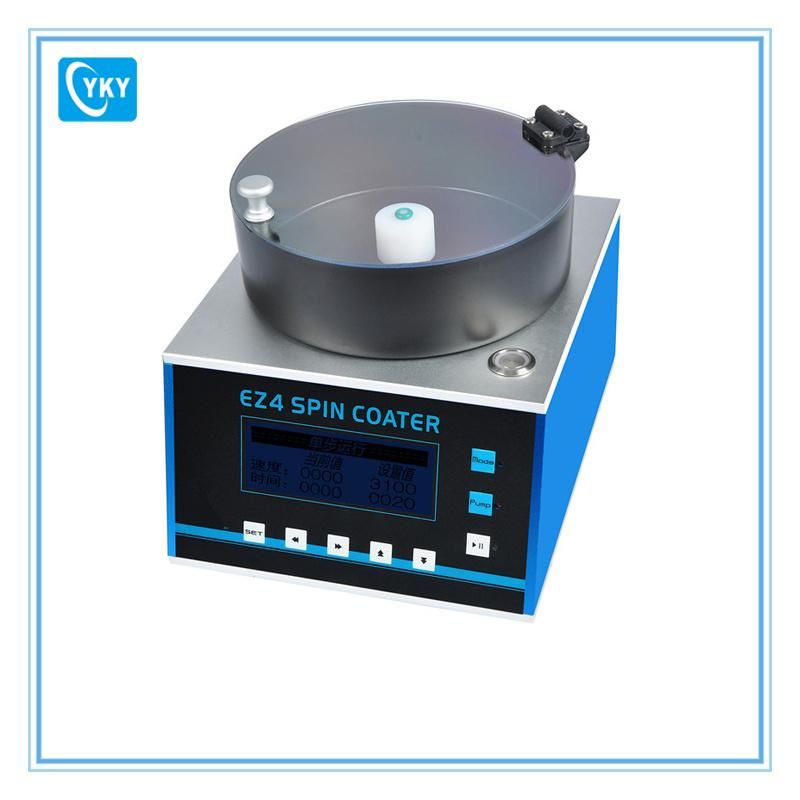

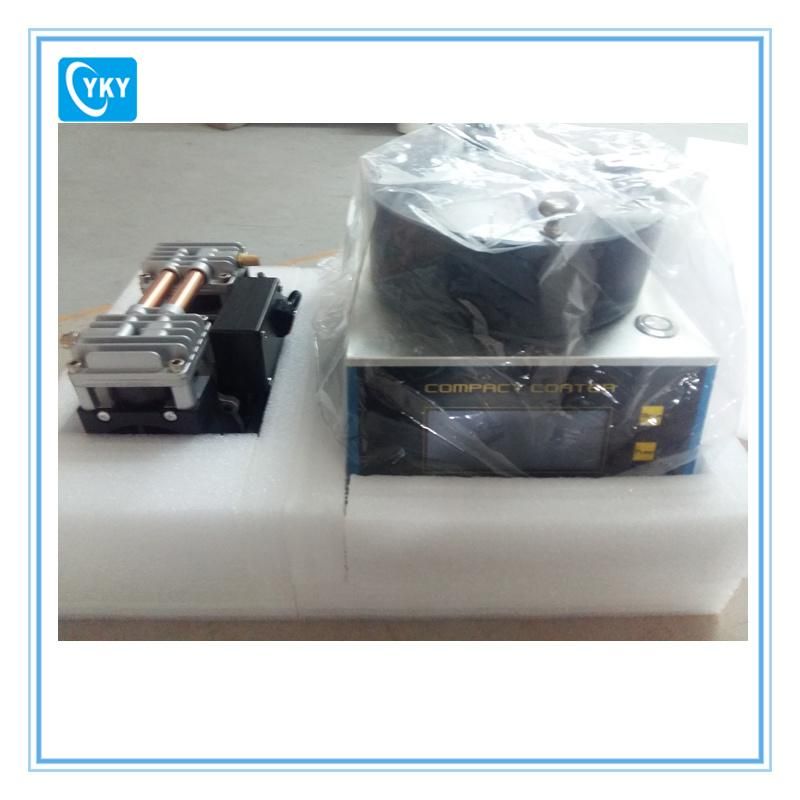

Compact vacuum spin coater with oilless vacuum pump CY-EZ4
CY-EZ4 is CE certified compact spin coater with vacuum chucks designed for easy and quick coating via
sol-gel for wafers up to 4" diameter.The spinning speed is variable from 100-10000rpm with two programmable segments

1.75w brushless dc motor,single chip microcomputer control

2.High-definition display

3.Pre-set single or multi-step coating operate

4.Prevent glue blocking design

5.PP anti- corrosion chamber, replaceable

6.HDPE vacuum adhesive disc


Model No.	EZ4
Chamber dimension	200mm
Maximum sample	10mm-100mm
Speed range	100~9999rpm adjustable
Accelerated speed	100~9999rpm/s
Speed resolution	1rpm
Speed accuracy	< 5rpm
Control	5 sets programmable control,each sets with 5 steps
Motor power	Brushless DC Motor 75w
Working voltage	AC 110-220V, 50Hz
Outer dimension	250*210*200mm

Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized
lab equipment.Welcome you come to visit us.
