• Model NO.：550ton
• Transport Package：Plastic Package
• Specification：7.7*2.2*3.1
• Trademark：Longhua
• Origin：Anhui, China(Mainland)
• HS Code：8454301000
• Production Capacity：30set,Sets Per Month

Basic Info.

Model NO. 550ton Transport Package Plastic Package Specification 7.7*2.2*3.1 Trademark Longhua Origin Anhui, China(Mainland) HS Code 8454301000 Production Capacity 30set/Sets Per Month

Product Description

 Longhua Die-Casting Machine Company,founded in Bengbu,Anhui Province of China in 1982, is a professional high-tech enterprise engaged in the design,manufacture and sales of cold chamber die casting machine and die-casting peripheral equipment.

This die casting  machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection  rate over 4M/s, and minimum boosting time less than 30ms.

The die casting machine is superior in performance high in productivity and smooth in operation. It is advantageous in technology in China.

Specification of LH550 ton Cold Chamber Die Casting  Machine Aluminium

Items	Unit	Specification 550T
Hydraulic Working Pressure	MPa	14
Clamping Force	KN	5500
Space Between Tie Bars	mm	760*760
Tie Bar Diameter	mm	¢140
Die Opening Stroke	mm	580
Injection Force(intensify)	KN	480
Plunger Launch Distance	mm	250
Injection Position	mm	0  --  220
Plunger Diameter	mm	¢70----¢90
Injection Stroke	mm	580
Casting Pressure (intensify)	MPa	124/95/75
Casting Fiange Protrusion	mm	15
Casting Fiange Diameter	mm	165
Max Casting Area Under 40Mpa	CM2	1250
lnjection Weight(Al)	Kg	7.1
Die Height(Min--Max)	mm	300~800
Ejector Force	KN	240
Ejector Stroke	mm	140
Motor Capacity	Kw	22
Machine Dimensions  (L*W*H)	m	7.7*2.2*3.1
Referential Machine Weight For Uplifting	T	22
Oil Tank Capacity	L	1200

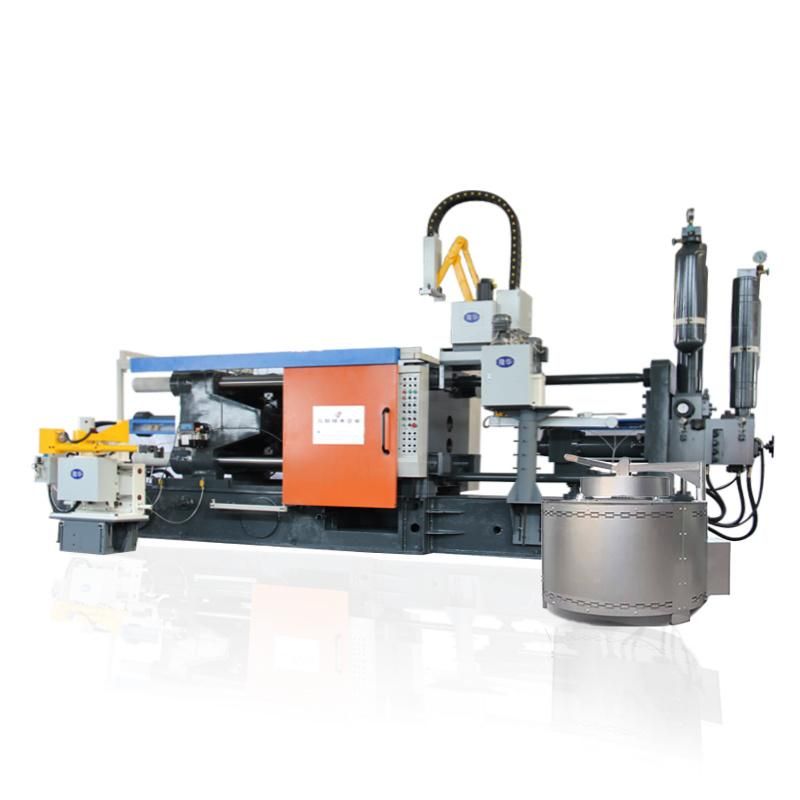

LH-550T cold chamber die casting machine

1. Easy to handle

- Completely automatic process cycle and analysis function

- Permanent process monitoring via sensors

- Extensive security installations



2.Excellent performance

- High efficiency and reduced scrap

- High quality casting of complex and large parts

- Extremely stable value of the machine

- Multi-shift operation possible


 3.Flexible

 - Small or large casting clusters

- Non-ferrous metals including zinc, aluminium, bronze and brass alloys

- Moulding chamber easily adaptable for shell-, sand- and block moulds.

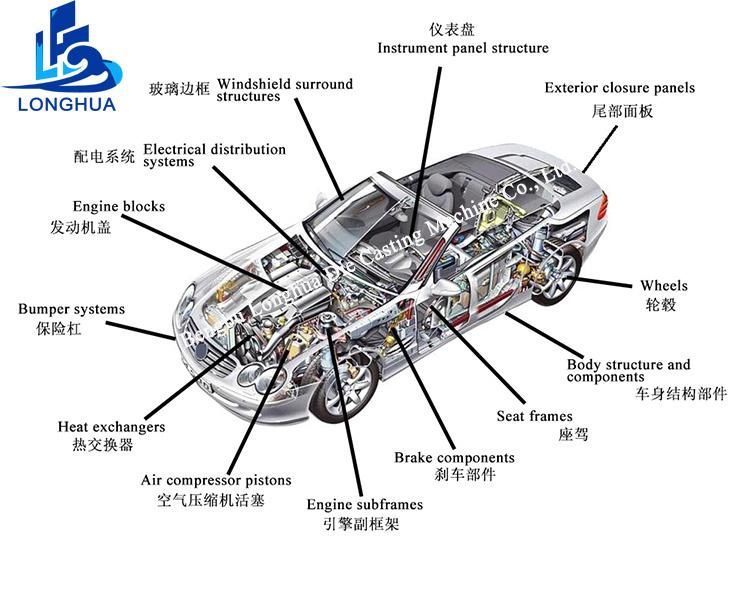

Die casting machine can produce auto parts

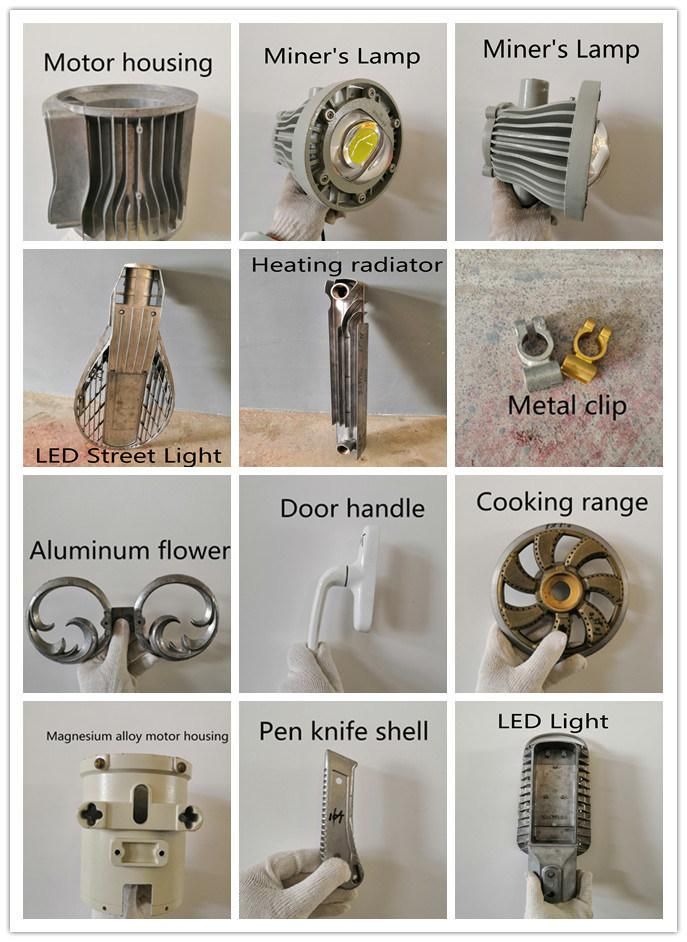

Die castings produced by our machine


Customer feedback-support overseas die casting machine training
