• Model NO.：RBF-63S
• Production Capacity：100sets,Year

Basic Info.

Model NO. RBF-63S Production Capacity 100sets/Year

Product Description

Product Description
Automatic multi-station Cold Bolt Former is a specialized machine tool with high efficiency and automation among forging machinery. Cold forging technique and automatic cold forging formers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the formers also are widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.

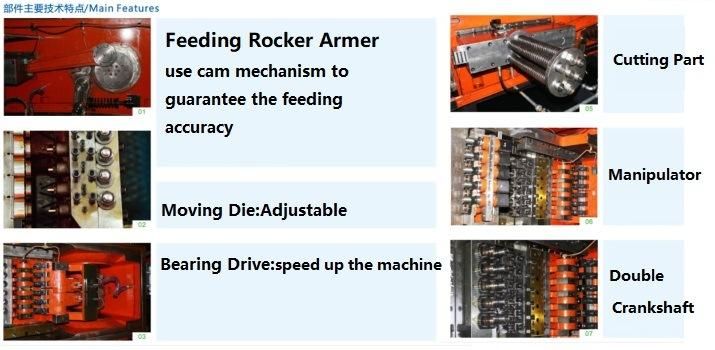

Machine Details

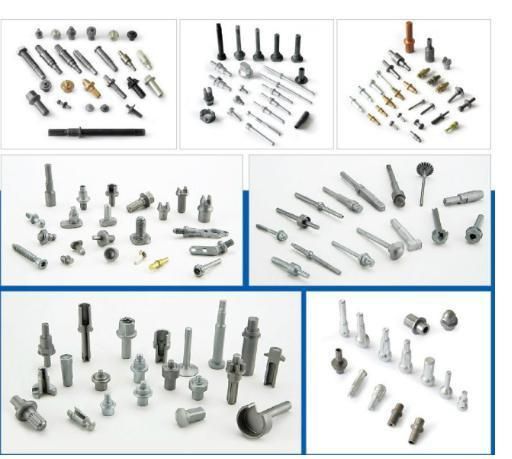

Product Scope



Specification

Model:RBF-63S	Specification
FORGING STATION	3
FORING FORCE  KGS	38000
MAX.CUT-OFF DIA. MM	8
MAX.CUT-OFF LENGTH MM	80
SPEED RANGE PCS/MIN	130-230
P.K.O STROKE  MMM	12
K.O. STROKE MM	65
MAIN SLILDE STROKE MM	110
MAIN MOTOR KW	11
CUT-OFF DIE MM	30*45
PUNCH DIE MM	40*90
MAIN DIE MM	50*85
DIE PITCH MM	60
WEIGTH KGS	9000
NORMAL BOLT DIA. MM	3-6
SHANK LENGTH OF BLANK MM	10-65

Our Company

Our company comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation,now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.

  We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service,our main products include wire drawing machine,Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.

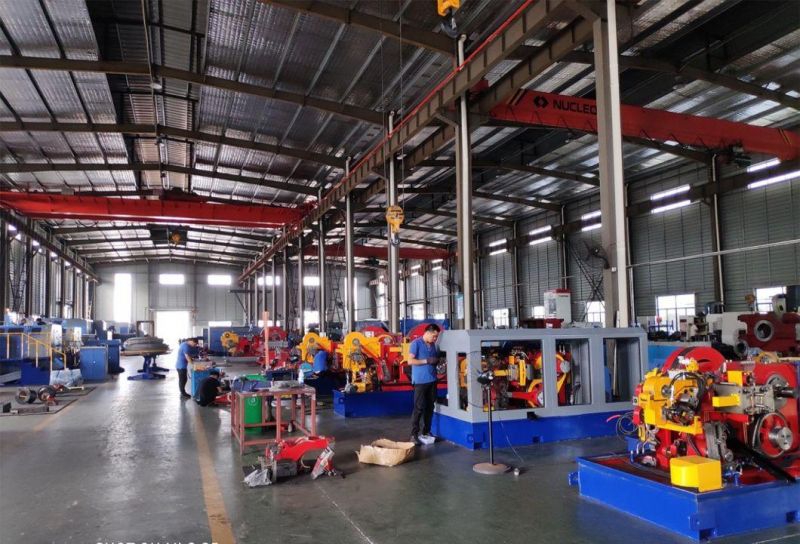

  With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and we invested in some fastener equipment manufacturers and built our own bolt maker,mesh belt furnace and zinc plating line factories.We do these factories' foreign market developing and have received highly praises from a lot of customers.

  We have established reputation in countries such as India,  US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
