• Model NO.：COLO-191S
• Weight：50kg
• Voltage：110V,220V
• Power(W)：50kw
• Warranty：1 Year
• Model：Hopper Feed Unit
• Transport Package：Wodden Case
• Specification：standard
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1000PCS

Basic Info.

Model NO. COLO-191S Weight 50kg Voltage 110V/220V Power(W) 50kw Warranty 1 Year Model Hopper Feed Unit Transport Package Wodden Case Specification standard Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 1000PCS

Product Description

Intelligent Electrostatic Powder Coating  Spray Equipment

Manual coating systems COLO-191S
Intelligent Function Powder Coating Equipment
Gives perfect coating results,

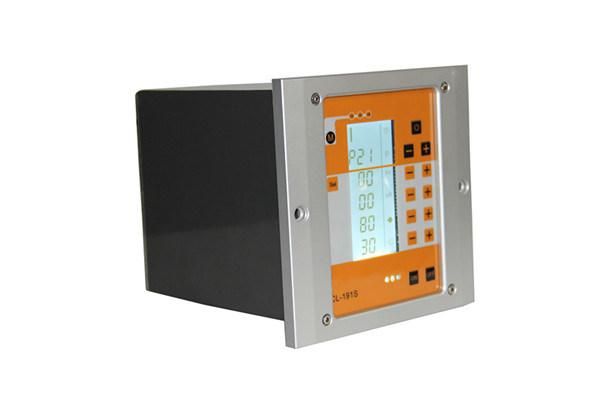

New, easy-to-use all-digital controller with LED displays






Character: all data same with
Optiflex ,but with new display design ,new compact design
Carton size:123x80x49cm
G.W:55kg




Special features

1.NEW ACCURATE DESIGN
2.SUPERIOR PERFORMANCE
3.OPTIMUM COATING RESULTS
4.DIGITAL AIR FLOW TECHNOLOGY
5.POWDER IS MORE STABLE
6.MORE UNIFORM
7.BETTER ATOMIZATION
8.Up to 20 coating programs can be stored in the control unit

Technical parameter

Power range	220v
Frequency	50/60HZ
Temperature range in use	-10   +50
Gun weight:	500g
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (  adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Maximum compressed-air consumption	13.2 m3/h

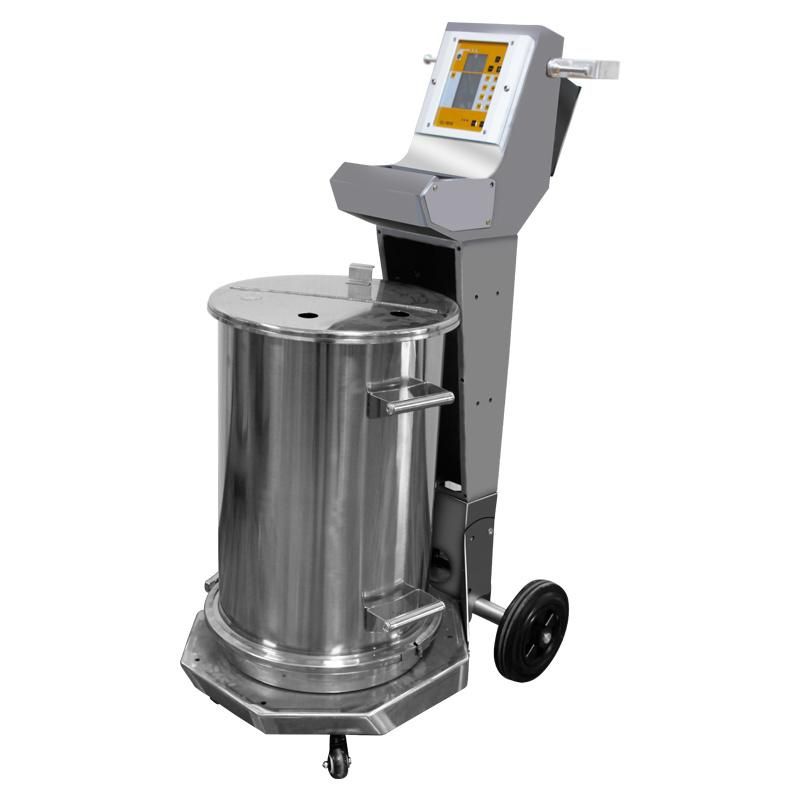

Colo-191S manual powder coating unit- Efficiency and flexibility in perfect design
The new manual unit combines functionality and extraordinary design. All parameters can easily and quickly be entered in the control The manual unit gives perfect coating results. The powder feeding is carried out directly from the original container - optionally out of the 60l stainless steel container.

Flexibility: The manual system can be transformed into a hopper feed model or double systm-model with vibration table. By mounting the small wheels, the manual system can be used and positioned in small places



Best Handling:
Intuitive user guidance: The logical layout of the control elements make adjusting recipes fast and clear.
Up to 20 coating recipes can be saved creating endless possibilities to set parameters to fit your individual needs.
Quick color changes by using a pre-programmed button to initiate the process. The position of the suction
tube and the coupling for the powder hose
Light and modern design. Its robust construction and reliable quality output, is the perfect solution for
optimal manual coating.

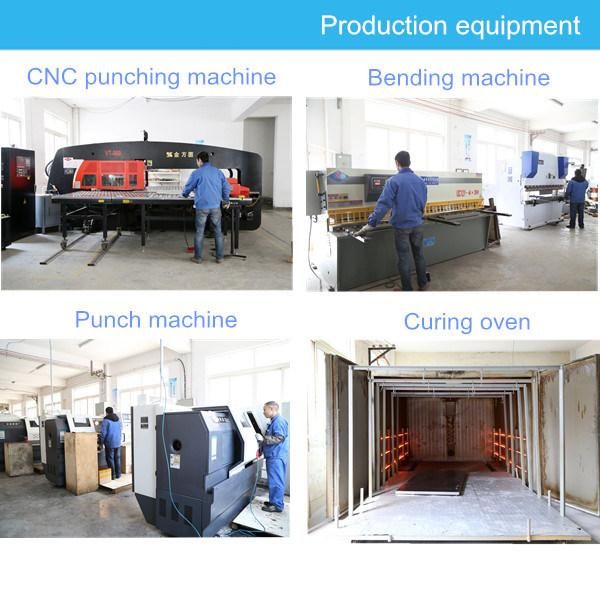

Production equipment


Our Packaging& Shipping




We are manufaturer and exporter of powder coating equipment. Other model machine please contact as bellow:
