4 Axis CNC Plasma Cutting Machine with Rotary Metal Plate and Tube Cutting

Jinan Remax Machinery Technology Co., Ltd.
  • Customized：Customized
  • Layout：Horizontal
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Power Source：Electric
  • Cutting Mode：Plasma Cutting
  • Plasma Power：Huayuan 200A

Base Info

  • Software：Starcam or Fastcam
  • Motor：Stepper or Servo
  • Transmission：Rack Transmission
  • Running Accuracy：≤ 0.005 mm
  • Electrical Components：Schneider
  • Lathe Bed：Welded Steel
  • Cutting Gas：Air
  • Transport Package：Fumigation Wooden Box
  • Trademark：Remax
  • Origin：China
  • HS Code：8456401000
  • Production Capacity：60PCS,Month

Description

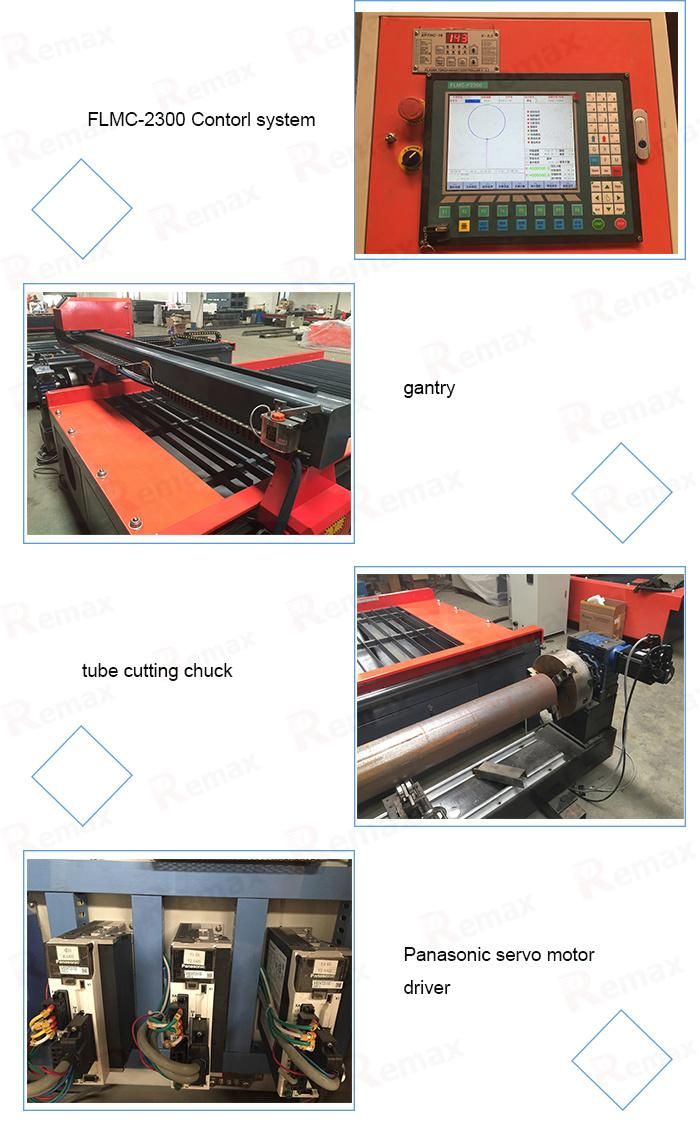

ModelCNC plasma tube cutting machineEffective cutting width(X axis)1300mmEffective cutting width(Y axis)2500mmPlasma powerHypetherm 125AEletric componentsSchneidercontrol systemFLMC-2300XPlasma cutting speed50-6500mm/minCutting torch lifting distance150mmSpeed setting error≤±5%Max idle running speed12000mm/minTorch height controller accuracy≤±1.0mmLongitudinal line accuracy±0.2mm/10mDrvierPanasonic servo motor and driverGear boxHubei planetDrive MethodRack and square rails for X Y Z axisMoving Precision0.01mm per stepMachine Voltage220V 50/60hz ,Single phase Plasma power voltage 380V 50/60hz ,3 phasePlasma cutting thickness1-30mmLength of one side±0.5mmDiagonal error|AD-BC| ±0.5mmError of returning to base point±0.2mm4 Axis CNC Plasma Cutting Machine with Rotary Metal Plate and Tube Cutting
