• Model NO.：KF-X1
• Condition：New
• Name：Aluminium Profile Powder Coating Machine
• Application：Any Metal Surface
• Voltage：220V,110V
• Frequency：50-60Hz
• Max Voltage：100kv
• Gun Weight：500g
• Packaging：Wooden Case,Carton
• Delivery：1-3 Working Days
• Payment：100% in Advance
• Item：Powder Coating Machine
• Transport Package：Carton
• Specification：123x80x49 cm
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：800sets,Year

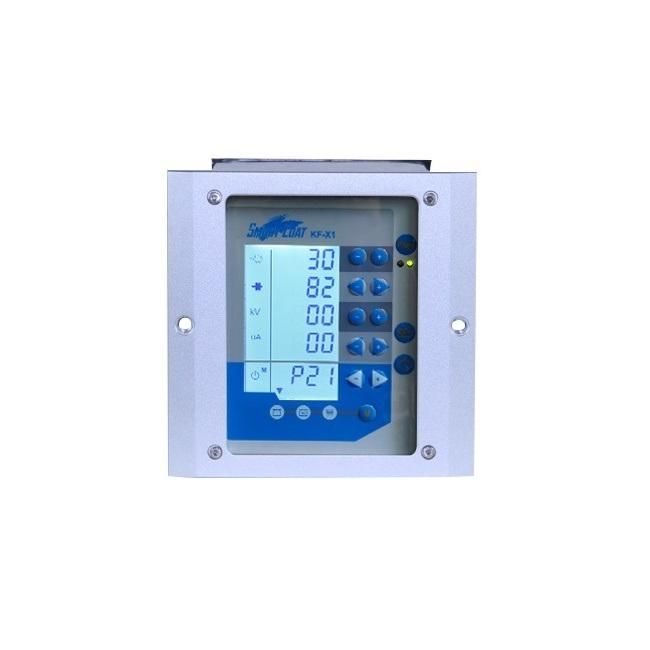

Powder Gun Controller of KF-X1 Powder Coating Equipment

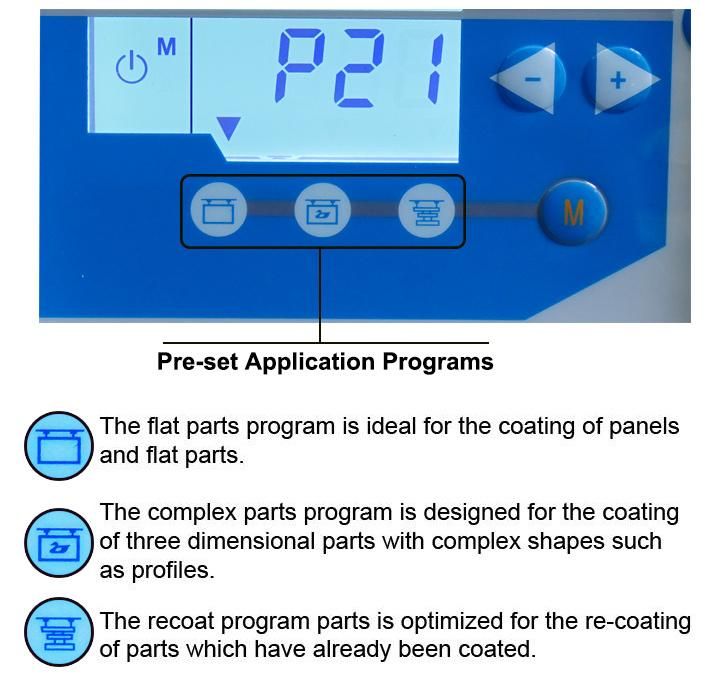

1. Three preset standard programs for powder coating flat parts, complex parts and recoat jobs.

2. Support to store coating programs up to 20, features convenient to spray the same type products next time.

3. Digital air flow technology for more accurate pneumatic data setting, ensures better atomization.

4. The precise powder output is able to control the thickness of coating film, results a consistent powder coating effect.

5. Voltage and current could be adjusted flexibly ( Voltage 0-100kV, Current Max.180μa ).

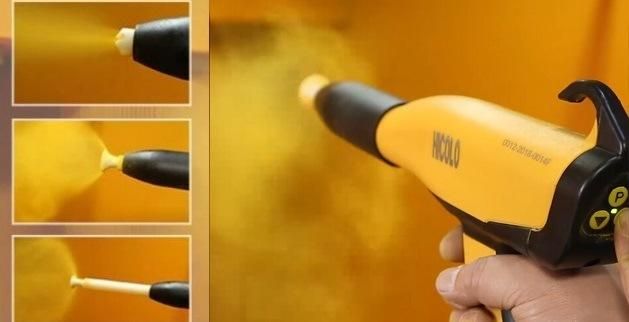

COLO-08 Powder Coating Spray Gun

1. Only 500g powder gun body maintains all practical functions, ergonomical design is able to reduce operators' fatigue from working long hours.

2. 100 kV manual spray gun maximizes powder charging capacity meanwhile ensures safe operation and efficiency during long lasting use.

3. Nozzles are made of non-stick materials, professionally designed to minimize powder accumulation as well as enhance penetration ability.

Technical Specifications of KF-X1 Powder Coating Machine



Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600 g/min
Max input air pressure	10 kg/cm
Optimum input-air pressure	6 kg/cm
Minimum input-air pressure	4 kg/cm
Maximum water vapor content or compressed	1.4 g/Nm3
Maximum oil vapor content of compressed air	0.1 ppm
Maximum compressed -air consumption	13.2 m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180μA
Polarity	negative

Why KF-X1 powder coating equipment is an excellent model?

1. Pre-set coating programs and storable programs are easy for beginners and powerful for experienced users.

2. Digital valve controlled function provides accurate regulation of powder feed and atomization, which meets your higher coating requirements.

3. Flexible control of all processing parameters (kv, amperage, feed air, dosing air) by digital allows to get optimal mode, significantly avoids Orange Peel and Faraday Cage effect.

4. All components are proved to be optimal performance, such as COLO independently developed spray gun, powder pump, nozzles, etc.

5. Our professional powder coating system makes it easier and quicker for any powder coating application jobs.

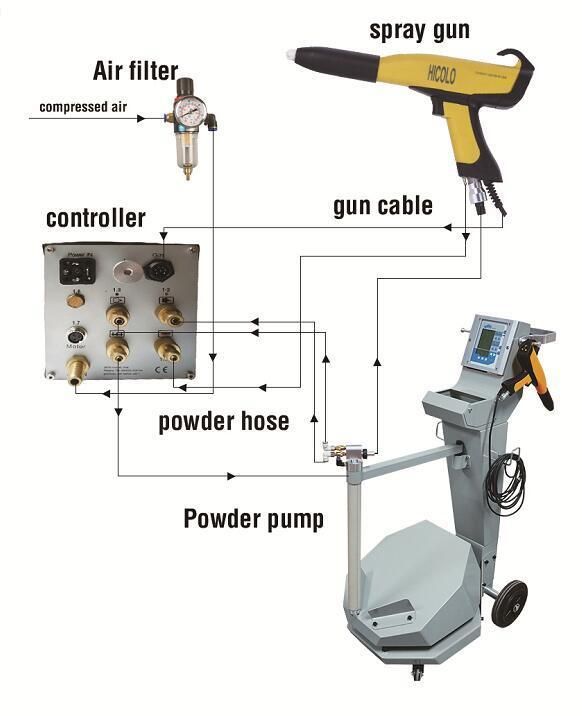

Connection Diagram of KF-X1 Powder Coating Machine
