• Model NO.：OURS-2014
• Voltage：380V,220V,110V
• Warranty：1 Year
• Size：as Per The Client
• Transport Package：Standard Container
• Specification：CE, SGS, ISO
• Trademark：jsours
• Origin：China(Mainland)
• HS Code：8424200000
• Production Capacity：20 Sets,Year

Basic Info.

Model NO. OURS-2014 Voltage 380V/220V/110V Warranty 1 Year Size as Per The Client Transport Package Standard Container Specification CE, SGS, ISO Trademark jsours Origin China(Mainland) HS Code 8424200000 Production Capacity 20 Sets/Year

Product Description

Aluminium Powder Coating Plant in Powder Coating Line

Product advantages:
1. Corrosion resistance
2. High efficiency
3. Prolong the life of workpiece
4. Lower cost

Operating principle:
The powder coating machine sprays the powder paint on the surface of the workpiece which will adsorb on the surface evenly to powder coatings under the effect of static electricity. And the powder coatings will level and solidify under high-temperature baking to the final coating. This technology is superior to others in the field of mechanical strength, adhesive force, corrosion resistance and aging resistance.

Technological process:
Loading--Predegreasing--Degreasing--Water rinsing 1--Water rinsing 2--Surface conditioning--Parkerising--Moisture drying--Natural cooling--Powder spraying--Powder curing--Natural cooling--Unloading


Main parts of powder coating line:

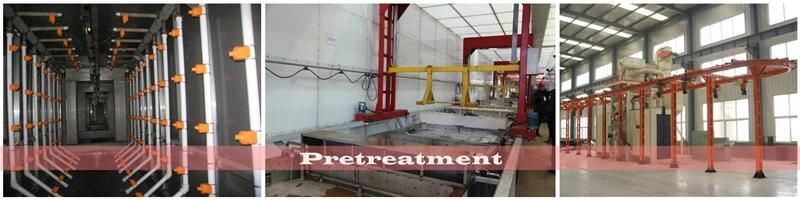

*Pre-treatment system : Sand-blasting, Shot blasting and dipping pre-treatments are available;

*Drying oven: Drying oven which is used for drying the water after pre-treatment is designed according to customer actual conditions. Electricity, gas, diesel are all available for the heating energy; *Curing oven: Tunnel curing oven, bridge type curing oven, Electric power heating curing oven, Gas-heating curing oven, Diesel heating curing oven, High-temperature and lower-temperature curing ovens are available for fitting your sole factory;

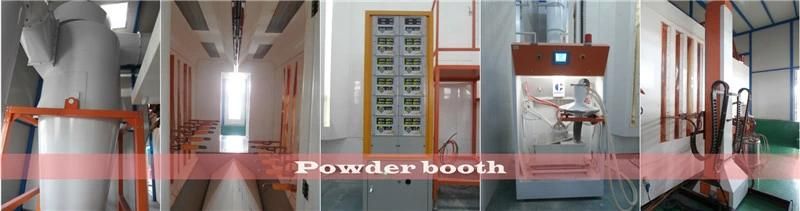

*Powder coating spray system: Automatic spray reciprocator , Manual spray equipment and Semi-auto (Auto-spraying with manual repairing spraying) are for your choice; *Powder recycling system: Cyclone equipment and cartridge filters is customized and introduced according to actual requirement by customer;

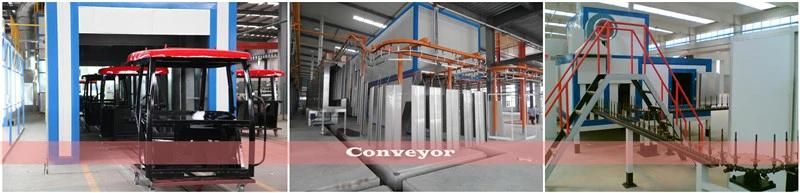

*Conveying system: Various design according to different requirement by customer on the basis of customers' workpiece and output information, including plate conveyor, chain conveyor, overhead conveyor, etc.

*Buyer Feedback:
We are professional in electrophoretic painting line project as customized. To provide you more details and quotation, would you pls let me know the following information:
1. What is the max. and min. size of workpiece? Would you pls send us some pictures?
2. What is the max. weight of  the workpiece?
3. How many workpieces will you paint per day? How many working hours is it per day?
4. What is your available space for this coating line project?
5. What is the heating source?(Natural gas, LPG, diesel oil, electricity)
6. Do you need to change colors frequently?
7. What is the curing condition (180-200ºC in 15-20mins, or 200ºC in 10mins?)
8. What kind of pretreatment system do you use (spray pretreatment or dipping type)?

If you are interested in our products, pls don't hesitate to contact us, we will give you the most professional reply and support within a short time.
