• Model NO.：OURS-2014
• Dimension：as Per The Client
• Weight：as Per The Client
• Warranty：1 Year
• Power：50-200kw
• Transport Package：Standard Container
• Specification：CE, SGS, ISO
• Trademark：jsours
• Origin：China(Mainland)
• HS Code：8424200000
• Production Capacity：6-7 Sets,Year

Basic Info.

Model NO. OURS-2014 Dimension as Per The Client Weight as Per The Client Warranty 1 Year Power 50-200kw Transport Package Standard Container Specification CE, SGS, ISO Trademark jsours Origin China(Mainland) HS Code 8424200000 Production Capacity 6-7 Sets/Year

Product Description

Electrostatic Powder Coating Line with Fast Color Change System

Product advantages:
1. Operation under normal temperature
2. Simple structure with high-performance
3. Highly efficient process automation

Operating principle:
The workpiece is the positive electrode and the paint atomization device is the negative electrode which is connected with Negative High Voltage, thus high-voltage electrostatic field appears between the two poles, then the paint sprayed by the gun is electrified. The paint covers the workpiece and flow to the surface of the workpiece with certain direction along the power line, which creates the uniform membrane with strong adhesive force.

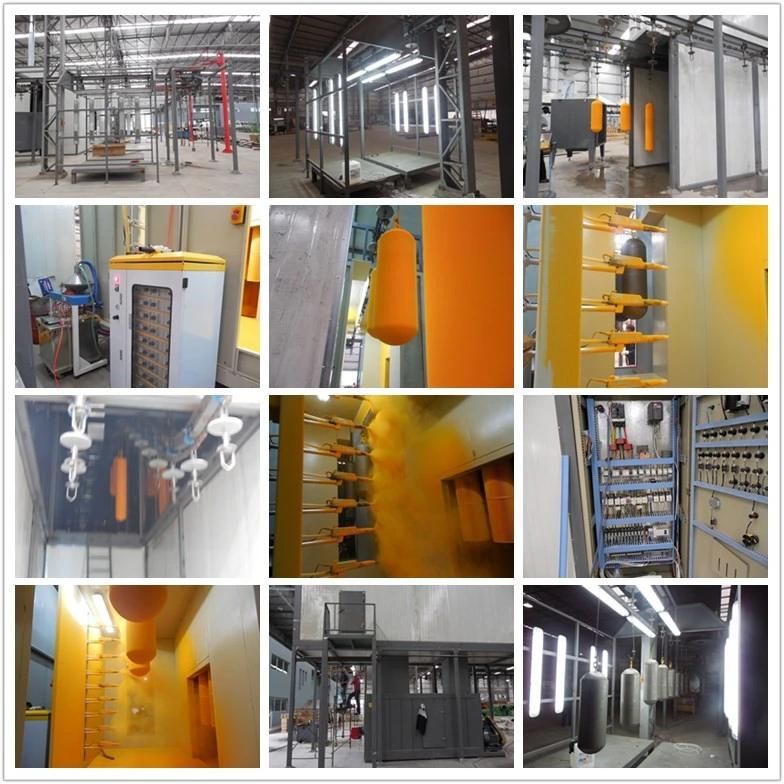

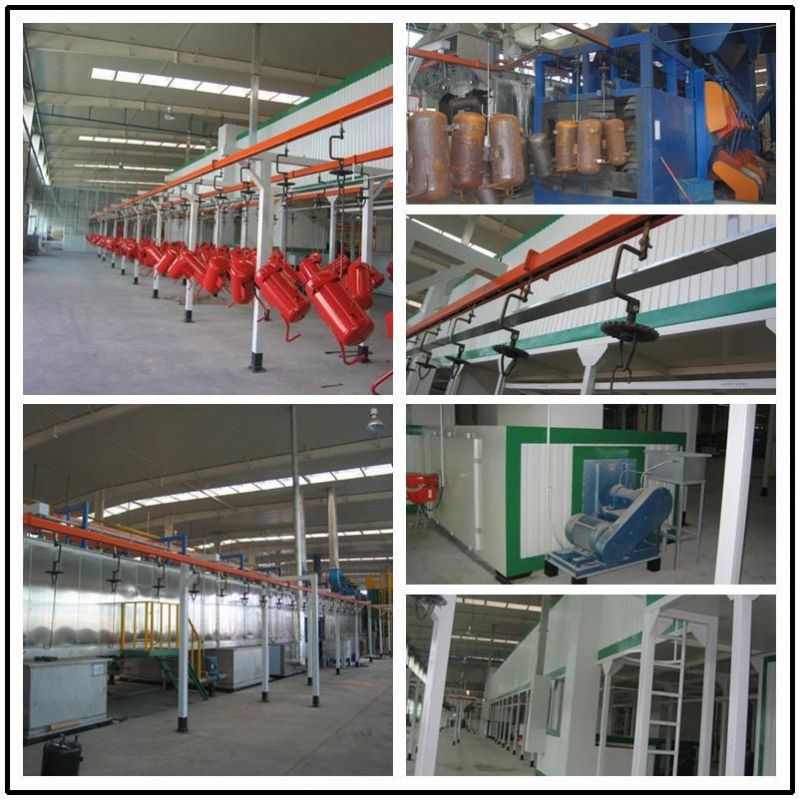

Main parts of the full line:
1. Pretreatment device
2. Powder coating gun
3. Electrostatic control equipment
4. Powder supplying system
5. Recovery system
6. Powder spraying booth
7. Auxiliary systems

No.	Item	Description
1	Voltage	60-90 KV
2	Power	10-20μA
3	Velocity pressure	0.30-0.55 MPa
4	Atomizing pressure	0.30-0.45 MPa
5	Pressure for cleaning the gun	0.5MPa
6	Fluidization pressure of powder-supplying barrel	0.04-0.10 MPa
7	Space between the spraying mouth and the workpiece	150-330mm
8	Speed of conveying chain	4.5-5.5m/min

If you are interested in our products, pls don't hesitate to contact us, we will give you the most professional reply and support within a short time.
