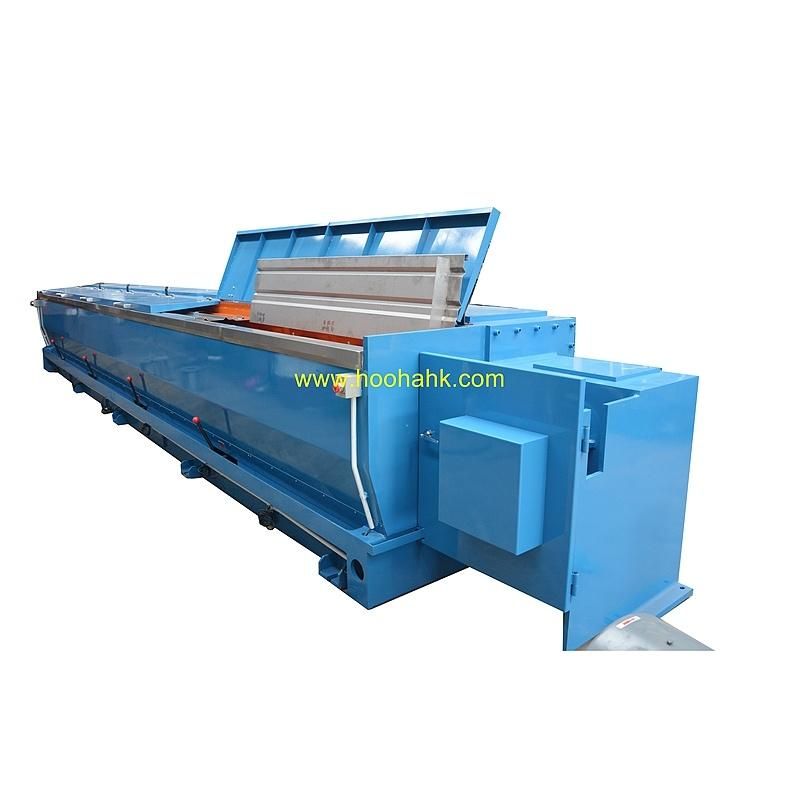

• Model NO.：DL350-9
• Max. Number of Block：21
• Certification：REACH, RoHS, ISO
• Condition：New
• Certificate：ISO
• Motor：Germany-Siemens
• Bearing：Japan-NSK
• Inverter：Siemens
• Electric Element：Siemens and Omron
• Control Box：PLC Siemens
• Inlet Diameter：8mm
• Outlet：2.6,3.5
• Line Speed：1500 M,Min
• Service：Install,Program,Train
• Transport Package：Plastic Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8479400000
• Production Capacity：3 Sets,Month

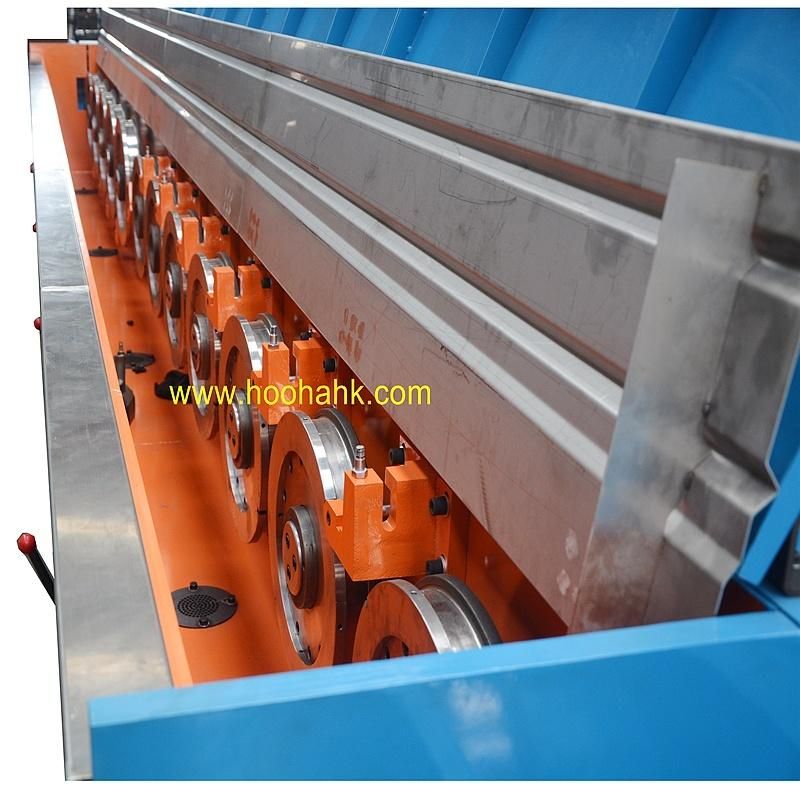

Technical parameterModelZLT350/9Control systemdigital buttonpower controldual inverter wire inlet dia2.6-3.5mmwire finished diameter1.0-2.76mmmax wire speed 1200m/minmax dies No.9transmission typegear drivemechanical elongation25%+16.7%drawing capstantungsten carbideconstruction of the machine body casting+steel plate welding and annealingcapstan diameterMax 350mmfix speed capstan diameter350mmspool bobbin sizeSN500 SN630 optionbobbin loading unloading typedual shafts conetraversing unitAC reducer motor and timing beltmain motorAC55kw(6P)spool motorAC11kwrevise systemrevise system automatic control of take up by PIDtension controltension control buffer rod with air cylinder and rocket armmax loading capacity250kg(SN500) or 500kg(SN630)lubrication typelubrication by full immersionlubrication capacity100L/minbrake disk type brakelubrication type for bearing pump enforce oilannealing control3 poles DC current outputannealing capacity150KVAannealing voltagemax 65Vannealing current2500Apower source380V/50/60Hztotal power77kw+150KVAsteam dosage10-12m³/h, 0.2-0.3Mpa with 9kw steam generatorcooling water consumption15-20m³/h 0.2-0.25MPaair consumption20-30m³/h 0.4-0.6MPamachine dimension14*3.5*4Mgross weight7000kg

Team of HOOHA serviceNameeducationPositionMainly responsible for projectSpecializing in project Industry working history ( year )zanyang XiecollegeGeneral EngineerThe total project design and planning power cable machine15xioahua HucollegeVis general engineerThe total project design and planning net cable,data cable machine10Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25xiuwu ChencollegeGeneral EngineerThe total project design and planning copper drawing machine15lixin YuancollegeEngineerThe project design and planning coppwer wire making technical16zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10haipin LiUniversityEngineering director Marketing and salesproject consulting 8sen YangUniversityEngineering translatorMarketing and salesproject consulting 5

HOOHA Team Delivery



FAQ
Q1:What is your main brand for the electrical and mechanical parts?
A:China famous brand and taiwan brand

Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like

Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge

Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge

Q5:Could you do the design for the whole plant
A: Yes , we can

Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .

Q7:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.

Q8:How long the guarantee ?
A: one year and charge for repair the whole life.

Q9: Do you have a video tips for the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi /HOOHA WIRE MACHINE
