• Model NO.：CNC
• Cutting Mode：Gas Cutting
• Model：CNC Series Cutting Machine
• Cutting Source：Plasma,Flame,Gas Cutting
• Flame Cutting Speed：1000 mm,Min
• File Support：Dwg,Dxf

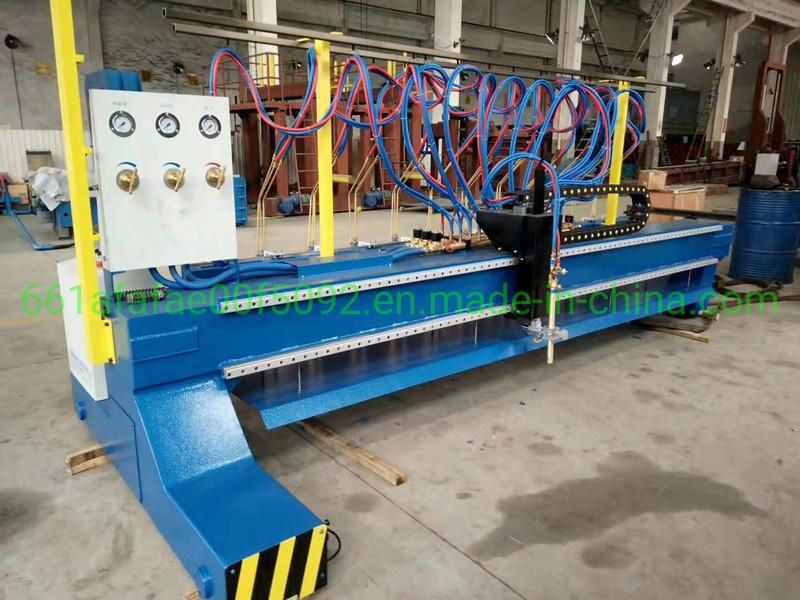

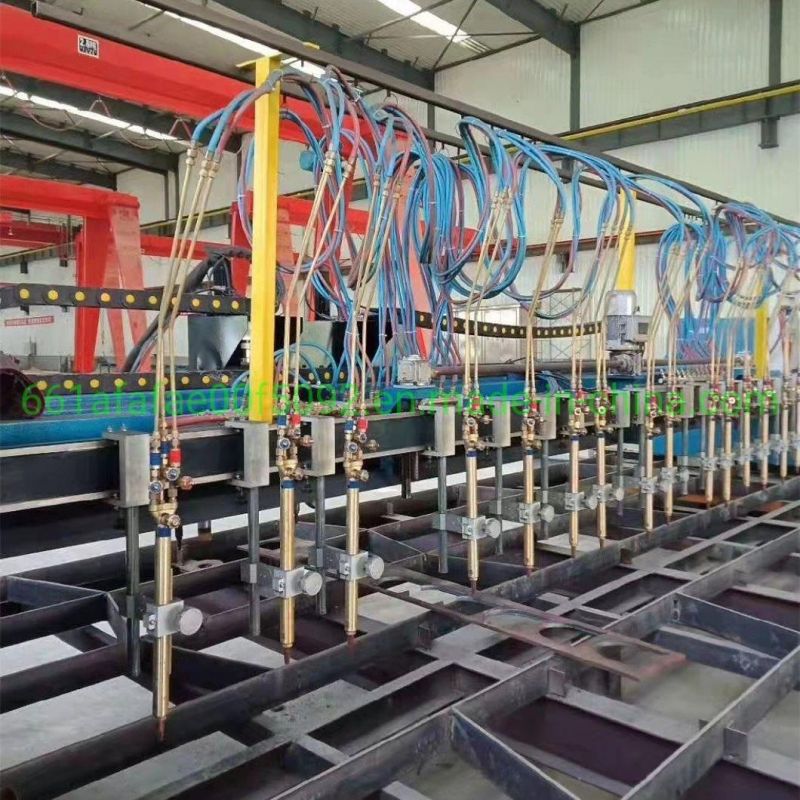

• Gas Strip Cutting Quantity：6,9 Cutting Heads or Customized
• Control System：F2300b
• Control Mode：CNC Control
• Effective Cutting Area：3000 mm*8000 mm or Customized

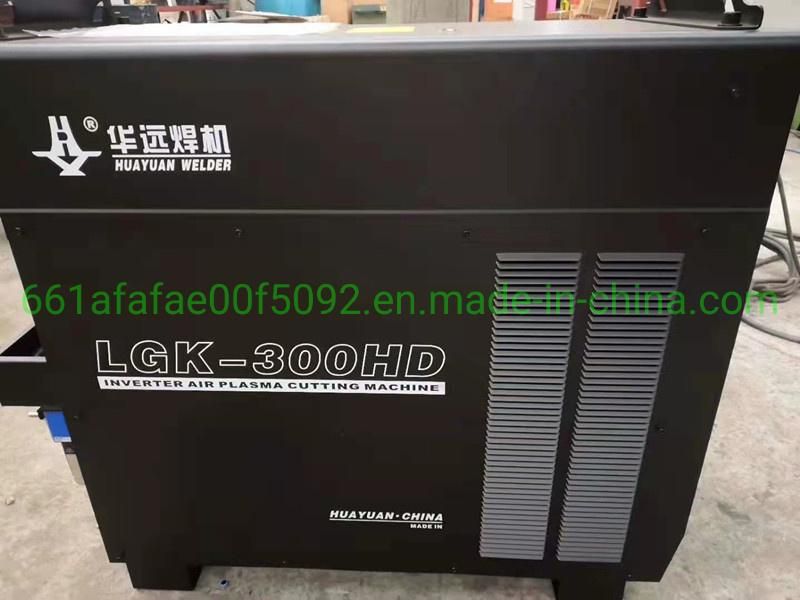

• Cutting Power：China Lgk or USA Hypertherm
• Power：380 V~440 V
• Plasma Cutting Speed：3500 mm,Min
• Plasma Cutting Thickness：1-30 mm According to Clients Plasma Cutting Source
• Optional：Flame or Flame and Plasma Cutting
• Flame Cutting Thickness：6-200 mm
• Colour：Customized
• Transport Package：Standard Package
• Specification：Flame Acetylene Gas or Liquefied CNC cutter
• Trademark：Lemar
• Origin：Wuxi, China
• HS Code：8461909000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. CNC Cutting Mode Gas Cutting Model CNC Series Cutting Machine Cutting Source Plasma/Flame/Gas Cutting Flame Cutting Speed 1000 mm/Min File Support Dwg/Dxf Gas Strip Cutting Quantity 6/9 Cutting Heads or Customized Control System F2300b Control Mode CNC Control Effective Cutting Area 3000 mm*8000 mm or Customized Cutting Power China Lgk or USA Hypertherm Power 380 V~440 V Plasma Cutting Speed 3500 mm/Min Plasma Cutting Thickness 1-30 mm According to Clients Plasma Cutting Source Optional Flame or Flame and Plasma Cutting Flame Cutting Thickness 6-200 mm Colour Customized Transport Package Standard Package Specification Flame Acetylene Gas or Liquefied CNC cutter Trademark Lemar Origin Wuxi, China HS Code 8461909000 Production Capacity 1000 PCS/Year

Product Description

CNC cutting machine is currently the mainstream trend of enterprise steel plate processing, which can indeed help enterprises improve the market competitiveness of their products.

The advantages of CNC cutting machine compared to manual cutting are as follows:

1. The cutting time is short and the cutting speed is fast, especially saving the time of measuring the positioning point of the cutting pattern
2. The CNC cutting machine can cut complex graphics, and the manually cut graphics are very simple
3. CNC cutting machine can effectively help enterprises save material costs
4. The CNC cutting machine can make effective use of leftover materials. The longer the usage time, the higher the value of the material saved
5. Improvement of cutting effect



Specifications:

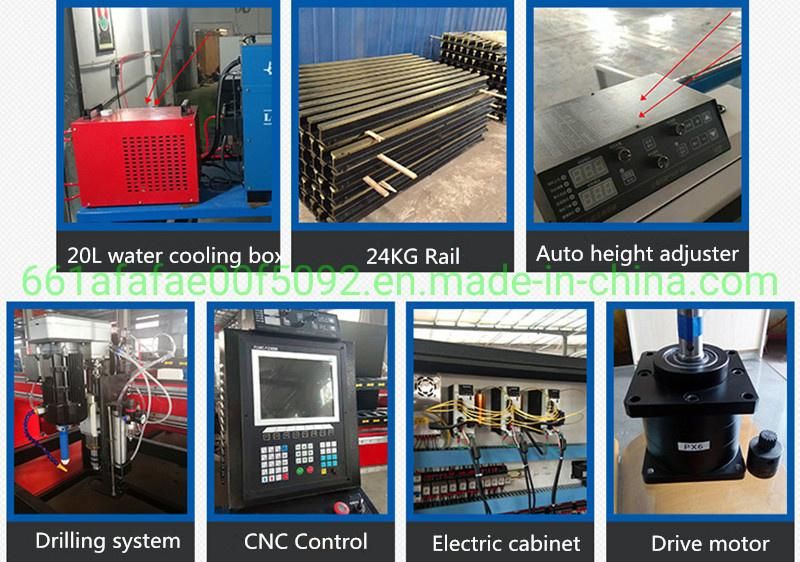

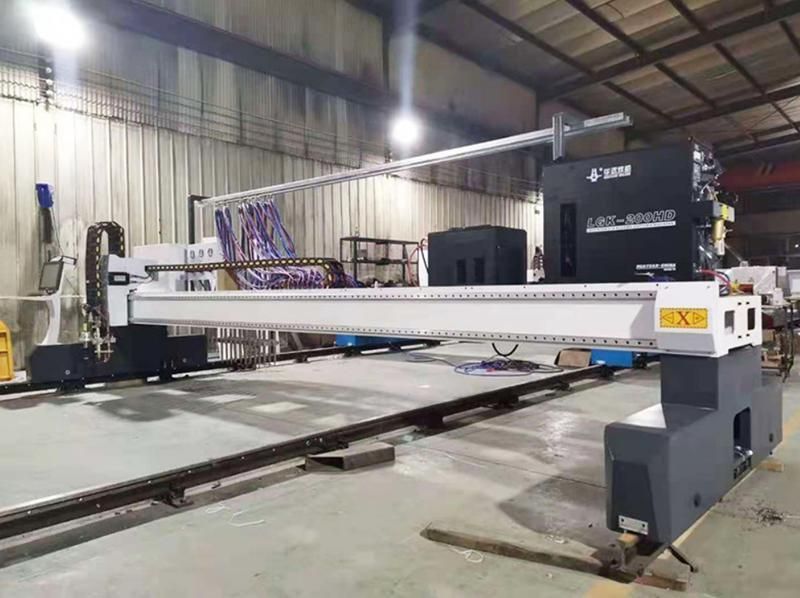

CNC Cutting machine Rack form	Gantry frame structure
Rack Features	The whole is treated by tempering and sandblasting
Rail spacing	3000-9000mm
Rail length	According to customer requirements
Rail model	24KG/38KG
Drive mode	Servo double side drive
CNC System	Beijing StarCAM,Jiaotong University,Hypertherm
CNC Flame torch	According to customer requirements
Drive system	Mitsubishi or Japan Panasonic servo
Reducer system	Germany Neugart
Lateral mechanical transmission	Precision rack and pinion and linear guide
Longitudinal mechanical transmission	Precision rack and pinion
Transverse pipeline drive	Drag chain
Longitudinal pipeline transmission	Engineering towline
Cutting software	FASTCAM
CNC Control system	FL2300B

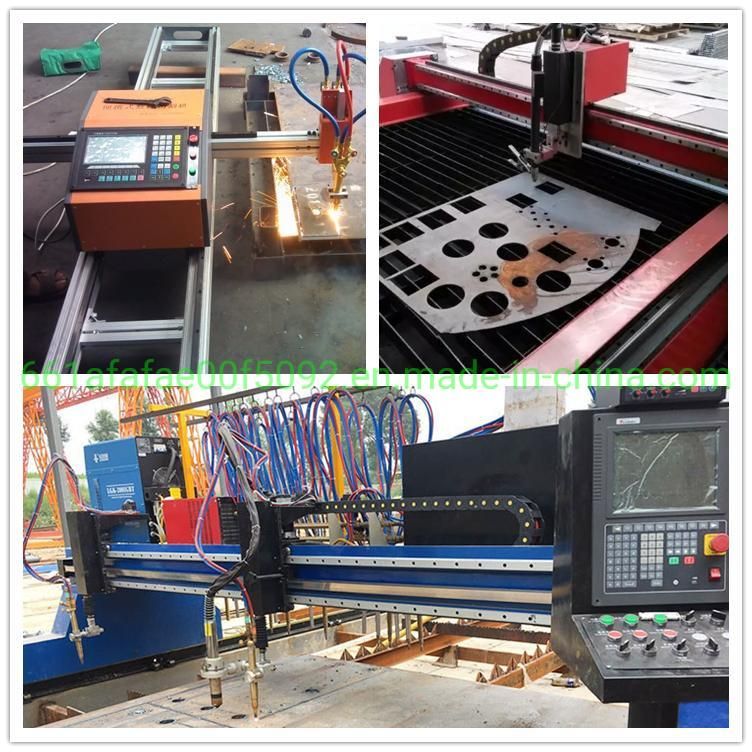

Classification of CNC cutting machines:

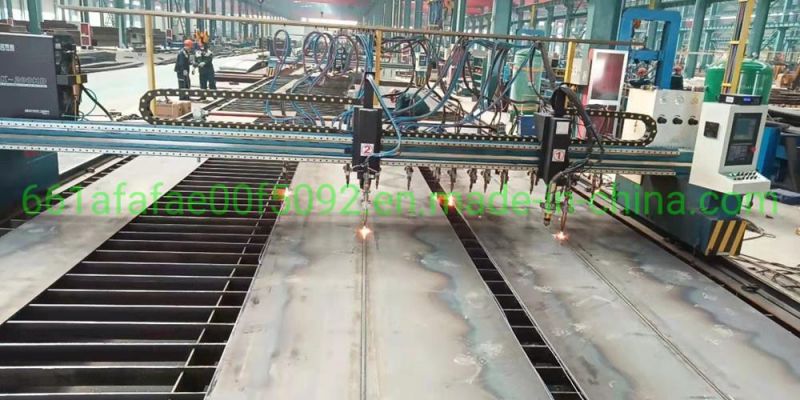

Gantry CNC flame cutting machine (bilateral drive)

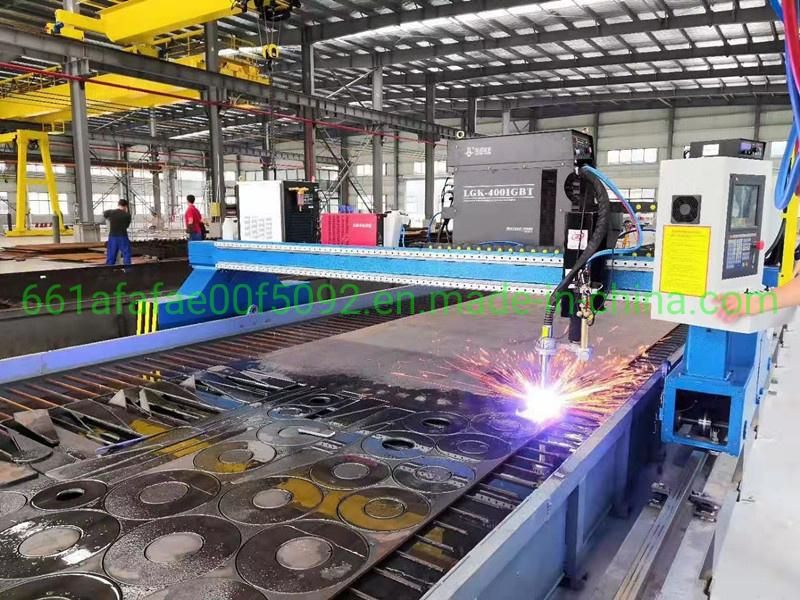

Gantry CNC plasma cutting machine (bilateral drive)
Desktop Plasma CNC Cutting Machine (Dual Drive)
Portable CNC Flame Plasma Cutting Machine (Single Side Drive)



Structure Features:

1. The frame of CNC Gantry type Flame oxy fuel cutting machine adopts fully welded structure, which is sturdy and reasonable, easy to operate and durable.
2. Fast cutting speed and high precision. The cutting opening is small and neat, and there is no slag drop phenomenon. On the basis of the traditional numerical control system, the control method for cutting has been improved to avoid secondary trimming.
3. CNC Plasma Flame strip cutting machine is suitable for low carbon steel plate, copper plate, iron plate, aluminum plate, galvanized plate, titanium plate and other metal plates.
4. The CNC system configuration is high. Automatic arc ignition, stable performance, arc ignition success rate of more than 99%.



Why choose us?

WUXI LEMAR MACHINERY EQUIPMENTS CO.,LTD is a high-tech enterprise specializing in automatic welding equipment and H-beam equipment. It has many years of production experience in the welding industry. , Practical and professional equipment that can meet the user's personalization.

Products are widely used in pressure vessels, petrochemicals, power plants, heavy machinery, ships, steel structures and other industries.

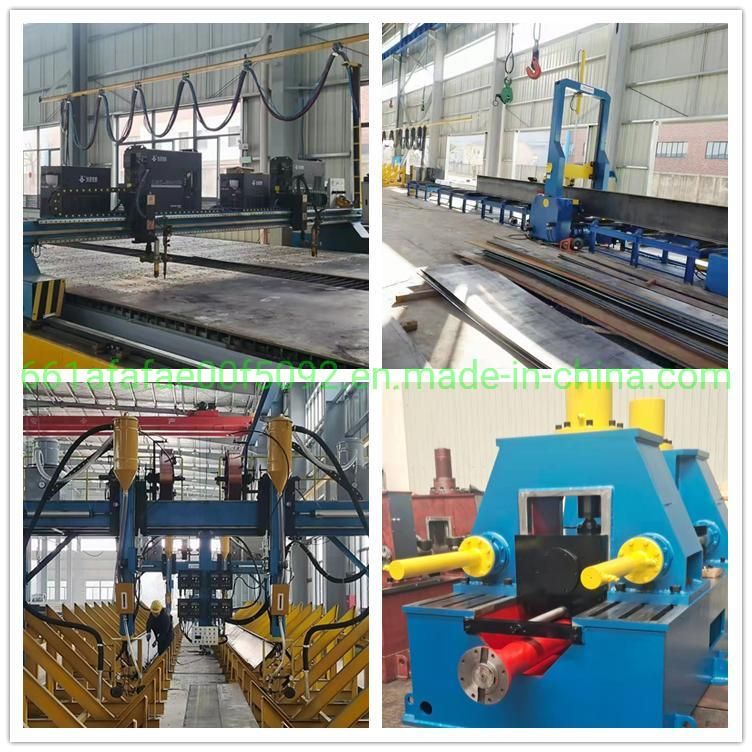

The main products are:
H-beam welding equipment (H-beam assembly machine-steel structure gantry submerged arc welding machine-H-beam T-beam hydraulic straightening machine-H-beam shot blasting machine)
CNC cutting equipment (CNC plasma cutting machine, CNC flame cutting machine, CNC portable cutting machine, CNC desktop cutting machine)

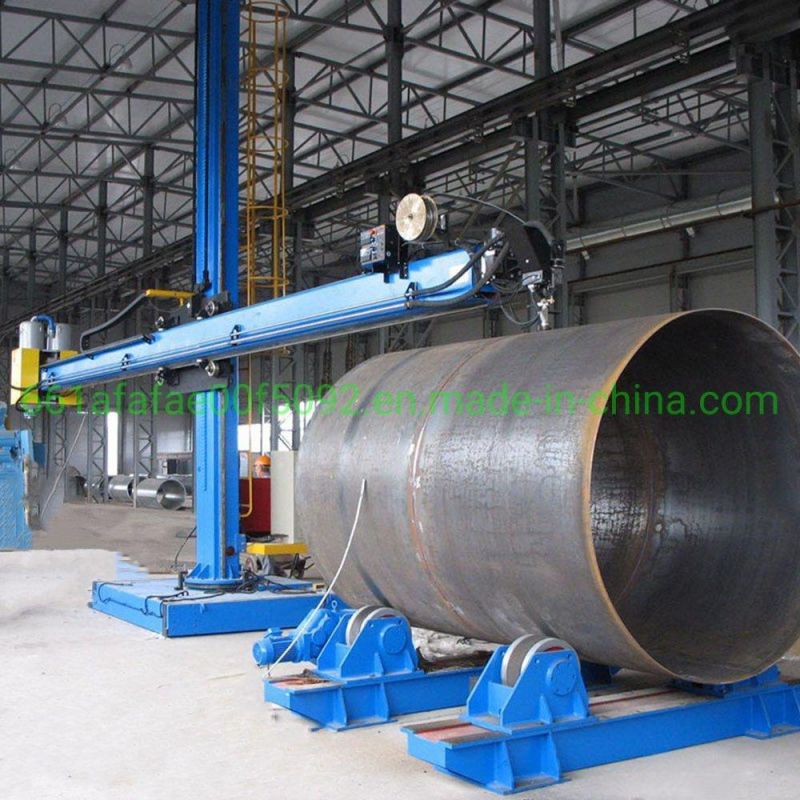

Welding Auxiliary Machines (Welding Manipulator, Welding Roller Frame, Welding Positioner)
