• Model NO.：CNC 3000
• Cutting Mode：Gas Cutting
• Model：CNC-3000
• Cutting Source：Flame Acetylene Gas or Liquefied Gas
• Control Mode：CNC

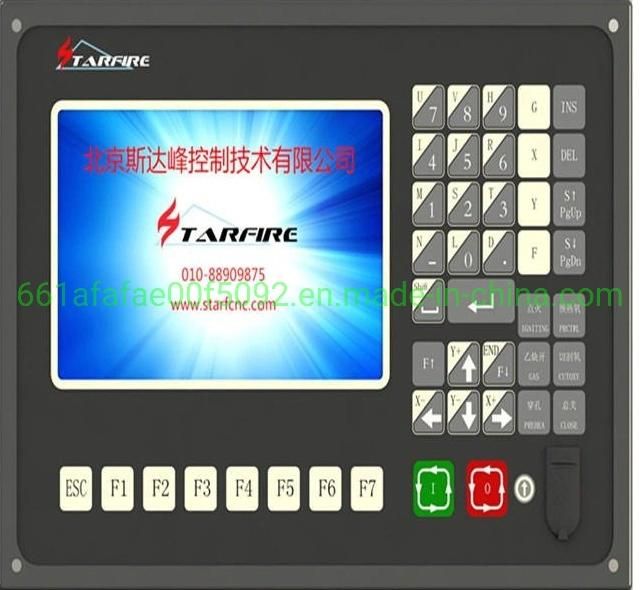

• Control System：F 2300 B
• Plasma Cutting Speed：3500 mm,Min
• Weight：1500 Kg
• Motor Type：Servo Motor
• Flame Cutting Speed：1000 mm,Min
• Input Voltage：380 V~440 V 50,60 Hz
• Core Components：Bearing, Gear, Motor
• Cutting Power：China Lgk or USA Hypertherm
• Nesting Software：Fastcam
• Driven System：Full-Digital AC Servo System
• Horizontal Guide Rail：Double Axle Core Linear Guide Rail
• Control System Language：Chinese,English
• Transport Package：Standard Package
• Specification：Flame Acetylene Gas or Liquefied CNC cutter
• Trademark：Lemar
• Origin：Wuxi, China
• HS Code：8461909000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. CNC 3000 Cutting Mode Gas Cutting Model CNC-3000 Cutting Source Flame Acetylene Gas or Liquefied Gas Control Mode CNC Control System F 2300 B Plasma Cutting Speed 3500 mm/Min Weight 1500 Kg Motor Type Servo Motor Flame Cutting Speed 1000 mm/Min Input Voltage 380 V~440 V 50/60 Hz Core Components Bearing, Gear, Motor Cutting Power China Lgk or USA Hypertherm Nesting Software Fastcam Driven System Full-Digital AC Servo System Horizontal Guide Rail Double Axle Core Linear Guide Rail Control System Language Chinese/English Transport Package Standard Package Specification Flame Acetylene Gas or Liquefied CNC cutter Trademark Lemar Origin Wuxi, China HS Code 8461909000 Production Capacity 1000 PCS/Year

Product Description

Wuxi Lemar Machinery Equipments Co.,Ltd specializes in the research and development of sheet metal cutting machines, with various products and support for customization.

Our company produces portable plasma flame cutting machines, CNC gantry plasma flame cutting machines, and automatic CNC drilling machines.

Specifications:


No.	Item	Specification
1	Cutting method	Flame acetylene gas or liquefied gas

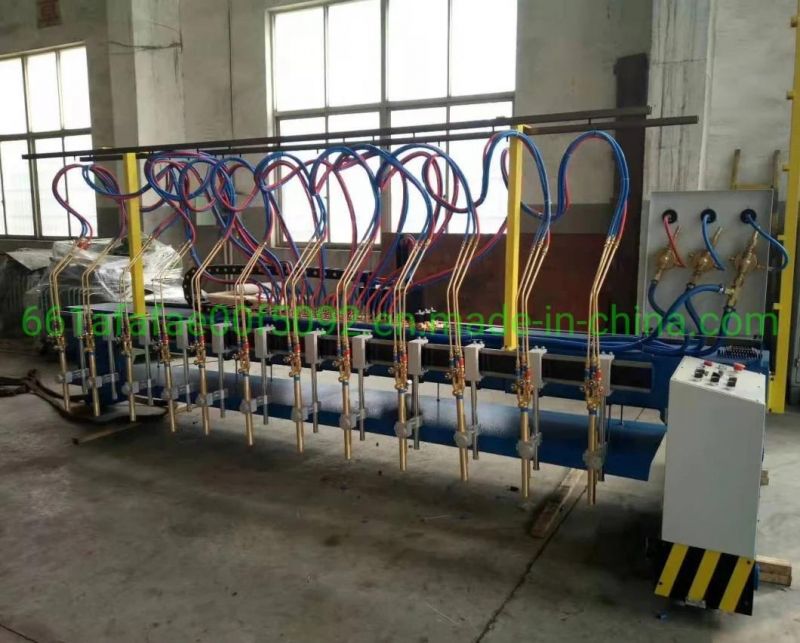

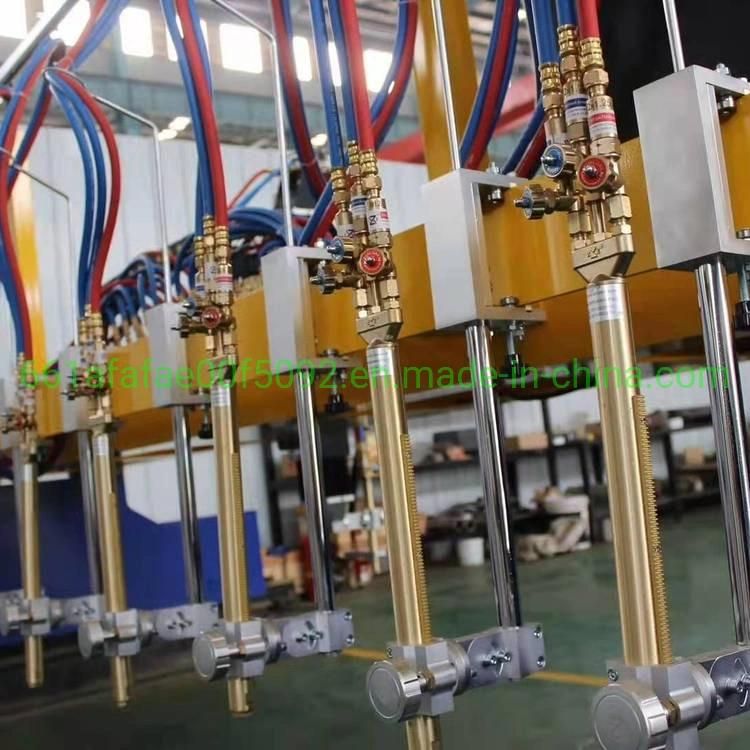

2	Configuration	Automatic ignition multi-head straight CNC cutting machine with cutting torch
3	Drive	Single/Double drive servo motor
4	CNC cutting Suitable material	Carbon steel, Manganese steel
5	Automatic height adjustment system	Optional
6	Separation height adjustment stroke	150mm
7	Rail size	24KG or 38KG
8	Gauge	3-10 meters (according to customer requirements)
9	Effective working width	2-9 meters
10	Cutting plate width	80-9000mm
11	Flame cutting speed	50-1000mm/min
12	Return speed	6000mm/min
13	Cutting thickness	6-160mm
14	Input power	AC220V/380V 50HZ
15	Diagonal line difference	≤0.5mm
16	Intersection offset	≤0.5mm
17	Nesting software	StarCAM automatic nesting software (automatic co-edge, nesting).

Features:

1. The frame beam of the CNC cutting machine is processed by one-time milling of a large gantry milling machine to ensure the cutting accuracy


2. The flame cutting machine is suitable for cutting medium and thick plates, which can be cut to 200mm thickness plates


3. Heavy-duty frame structure, high-power Panasonic servo motor and precision reducer

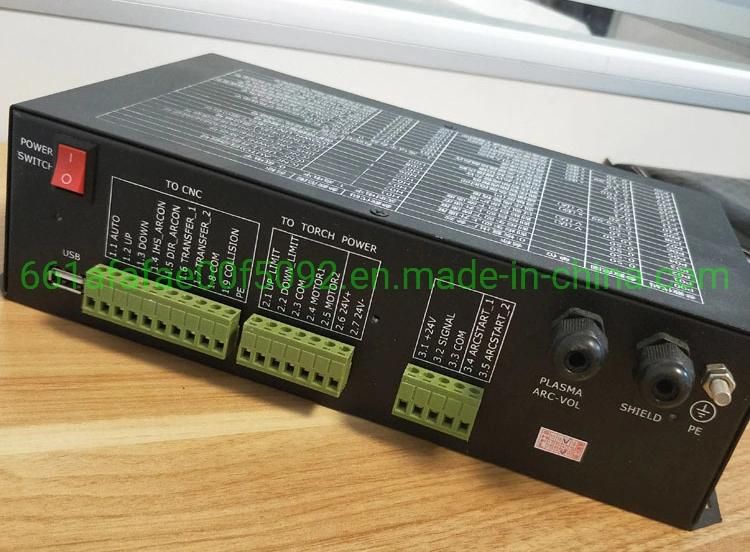

4. The arc voltage height adjustment of CNC Flame gas cutting machine gantry type has high control accuracy, stable performance, strong anti-interference ability, and prevents gun collision


5. The two cutting methods of flame and plasma cutting mode are converted to each other


6. According to the different signs of the cutting material, the preheating delay and the lifting and lowering delay of the gun can be set differently

7. Lifetime free upgrade of nesting software



Application fields of CNC cutting machine:

1. Medical field
2. The field of paper machinery
3. Automation field
4. Automotive field
5. Aerospace
6. New energy field
7. The field of metallurgical equipment
8. Steel structure production
