• Model NO.：JK-FS-2500G
• Control System：Panasonic PLC
• Raw Material：Ribbed Bar&Round Bar
• Welding Speed：45-60times,Min
• Voltage：220,380,415,440V
• Power Supply：120kw
• Machine Name：Reinforcing Steel Fence Mesh Welding Machine
• Transport Package：Plastic &Wooden Box
• Specification：CE, SGS, ISO
• Trademark：JIAKE
• Origin：Anping, Hebei, China
• HS Code：8463300000
• Production Capacity：4500kg

 Model DP-FM-2500A+ DP-FM-3000A+ DP-GW-2500B DP-GW-3000B Air cylinder type SMC 80 double-acting air cylinder SMC 90 single-acting bally air cylinder Wire diameter 3-8mm 5-12mm Longitude wire space 100-300mm 100-300mm Crosswire space Min.50mm Min.50mm Mesh length Max.12m Max.12m Mesh width Max.2500mm Max.3000mm Max.2500mm Max.3000mm Welding electrode Max.24pcs Max.31pcs Max.24pcs Max.31pcs Welding transformer 150kva*6pcs 150kva*8pcs 150kva*12pcs 150kva*16pcs Welding speed Max.100 times/min  Max.80-100 times/min Weight 5.2T 7T 8.5T 9.8T Main machine size 12.12*5.4*2.1m 12.13*6*2.1m 12.13*5.4*2.1m 12.13*6*2.1m

• NOTE: Our engineer can design a special specification machine according to your wire diameter, mesh hole size, and mesh width.

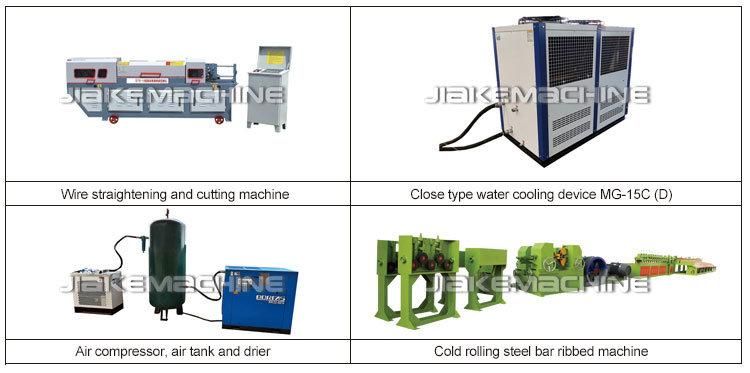

  Auxiliary Equipment



Wire straightening and cutting machine is to make pre-straighten and pre-cut cross wire use. So, the finished welded panel can be very flat and meet market demand.

Technical Parameters

 Model GT4-12 GT6-14 Type CNC type CNC type Wire diameter 4-12mm round bar, 4-10 rebar 5-12 (ribbed   bar 12mm)/   (round    bar 14mm) Cutting length 500mm-12000mm 500-12000mm Speed 45m/min 52m/min Straight motor 7.5kw / 11kw 11kw Cut motor 4kw 5.5kw Cut error ±5mm ±5mm Machine size 2.3*0.8*1.1m 2.1*0.8*1.1m Weight 1000kg 1200kg

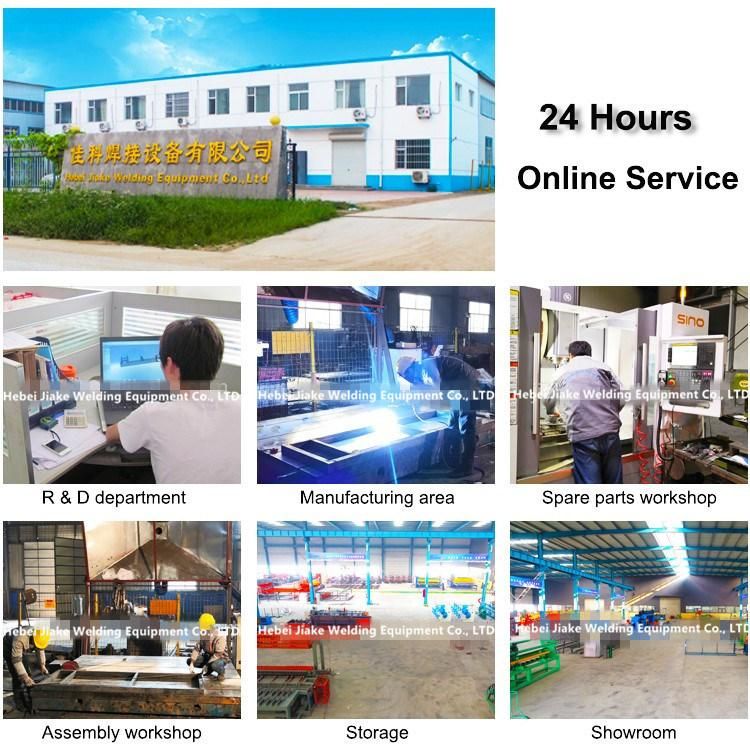

  About Us



Hebei Jiake Welding Equipment Co., Ltd. It's the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.





  FAQ

Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
