Fast PLC Control Iron Rod Wire Straightening and Cutting Machine

Hebei Jiake Welding Equipment Co., Ltd.
  • Type:Balance Roller Straightening Machine
  • Usage:Wire, Bar
  • Voltage:380V
  • Automatic Grade:Automatic
  • Principle:Small Deformation
  • Certification:ISO9001, CE

Base Info

  • Model NO.:SC2-5
  • Warranty:12 Months
  • Customized:Customized
  • Condition:New
  • After-Sale Service:Engineers Is Available for Installation Overseas
  • Wire Diameter:2-5 mm
  • Cut Length:6000 mm
  • Cut Error:1 mm
  • Speed:30 M,Min
  • Training Workers:Yes
  • Straightening Motor:1.5 Kw
  • Cutting Motor:0.75 Kw
  • Weight:150kgs
  • Dimension:1.2*0.4 *0.9 M
  • Transport Package:Wooden Pallet, Plastic Package in Container
  • Specification:CE, ISO9001
  • Trademark:JIAKE
  • Origin:Anping, Hebei, China
  • HS Code:8515180909
  • Production Capacity:25 Sets,Month

Description

Basic Info.

Model NO. SC2-5 Warranty 12 Months Customized Customized Condition New After-Sale Service Engineers Is Available for Installation Overseas Wire Diameter 2-5 mm Cut Length 6000 mm Cut Error 1 mm Speed 30 M/Min Training Workers Yes Straightening Motor 1.5 Kw Cutting Motor 0.75 Kw Weight 150kgs Dimension 1.2*0.4 *0.9 M Transport Package Wooden Pallet, Plastic Package in Container Specification CE, ISO9001 Trademark JIAKE Origin Anping, Hebei, China HS Code 8515180909 Production Capacity 25 Sets/Month

Product Description

Fast PLC control Iron rod Wire Straightening and Cutting Machine

Fast PLC Control Iron Rod Wire Straightening and Cutting Machine




1. Technical data.
Model GY2-3.5GZ2.5-6GZ3-8GY6-12H
Wire diameter2-3.5mm2.5-6 mmCold rolled round bar/ ribbed bar 3-8mm.
Hot rolled round bar 5-8mm.
Hot rolled ribbed bar 5-6mm.
6-12 mm cold/ hot rolled round rod;
6-12mm cold/ hot rolled ribbed rebar
Cut length500-3000mm500-6000 mm700-6000 mm1000-12000 mm
Cut error±1mm±1 mm±1 mm±1 mm
Speed Max.60-80m/min90-120 m/minMax.120 m/minMax.70-130 m/min. Example, max.23tons/8hours for 10mm rebar.
Straightening motor4kw7.5 kw Frequency
adjust motor
13 kw37 kw
Cutting motor 1.5 kw, servo motor.Servo motor,7.5kw
Overall dimension7.2*0.8*1m9×0.6×1.2m15×0.8×1.1m18×0.8×1.1m
Weight600kg2500Kgs3500 Kgs
  1. Kgs

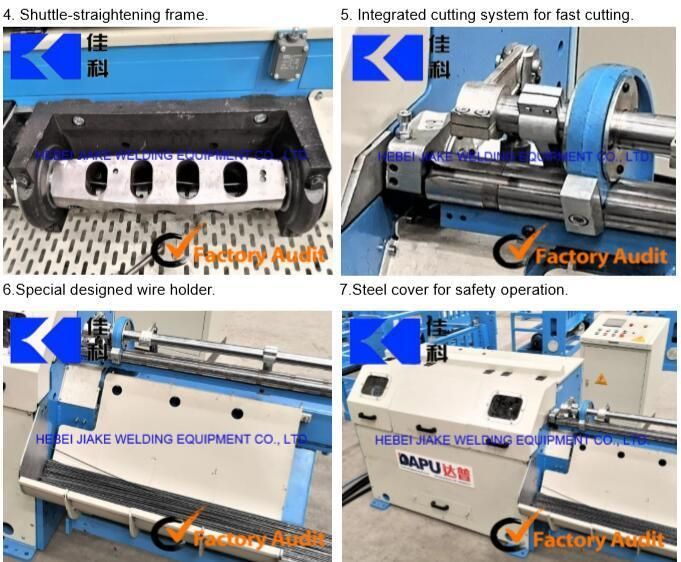

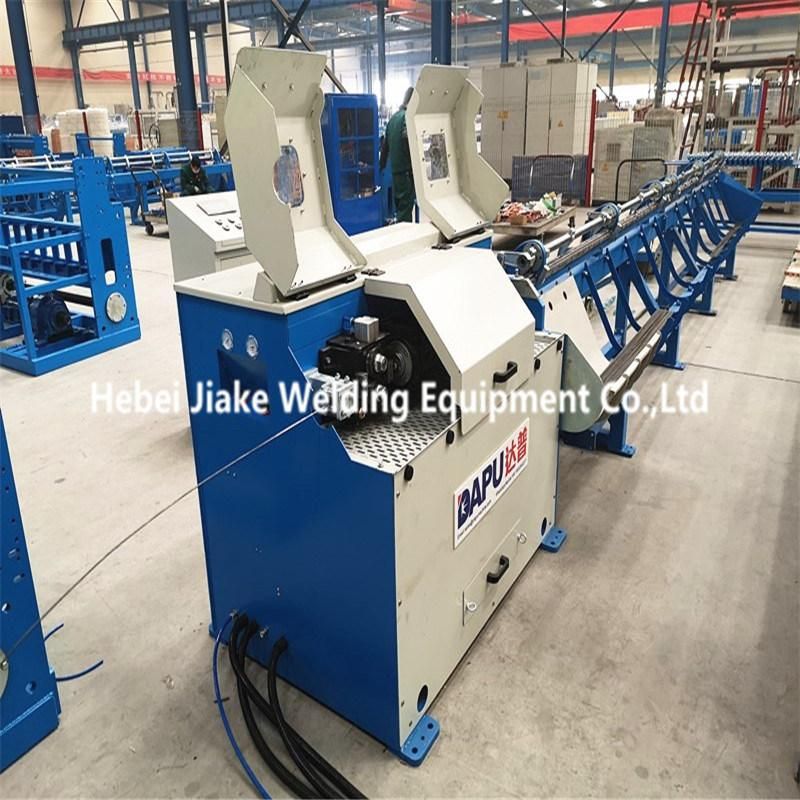

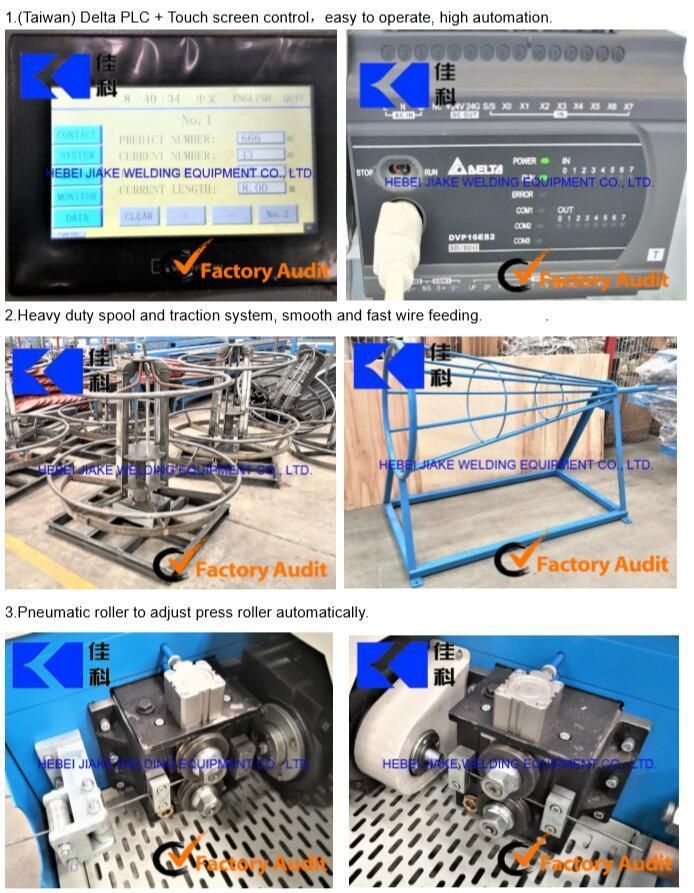

2. Photo display
Fast PLC Control Iron Rod Wire Straightening and Cutting Machine
Fast PLC Control Iron Rod Wire Straightening and Cutting Machine

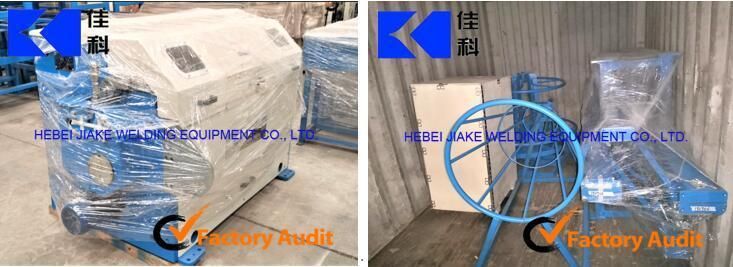

3. Machine loading
Fast PLC Control Iron Rod Wire Straightening and Cutting Machine



4. Related machine.

Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, razor barbed wire machine,wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine,steel fiber making machine etc.

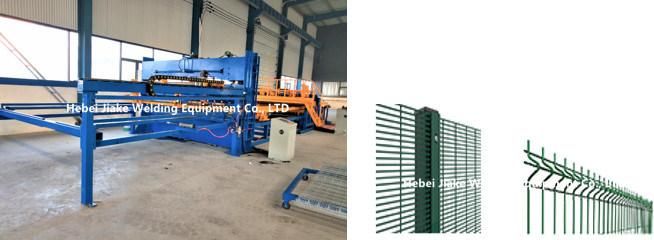

4.1 Fence mesh welding machine
Fence mesh welding machine is also called fence mesh welding line, security fence machine, anti-climb fence welding machine, and fence panel machine. It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.

ModelDP-FPWire diameter2.5-6mm
Line wire pitch50-300mmWelding torch48pcs
Cross wire pitchMin.12.7Welding speedMax.80 times/min
Welding widthMax.3mWelding transformer150kva*6/10pcs
Mesh lengthMax.4mMesh typepanel mesh

Fast PLC Control Iron Rod Wire Straightening and Cutting Machine

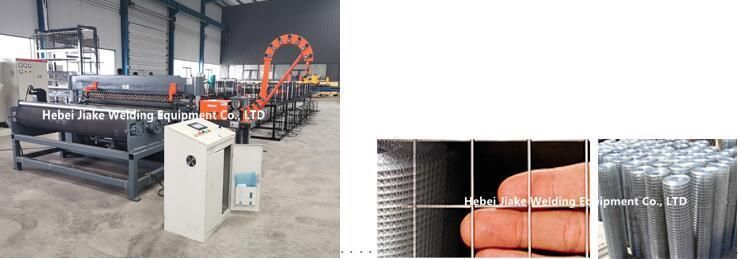

4.2 Welded wire mesh machine in roll
Welded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine, electric mesh welding line.
It's used to make construction mesh, wall mesh, animal cage, mining etc.
ModelDP-DNWWire diameter0.65-2.5mm
Line wire pitch6.25-150mm Cross wire pitch6.25-150mm
Mesh width0.9-2.5mm Main motor2.2kw/4kw/5.5kw/7.5kw
Welding transformer60-80kva*3/4/5/7/8pcsWelding speedMax.60-180 times/min
Weight2T/2.5T/3T/3.5T/4T Mesh typeroll mesh

Fast PLC Control Iron Rod Wire Straightening and Cutting Machine

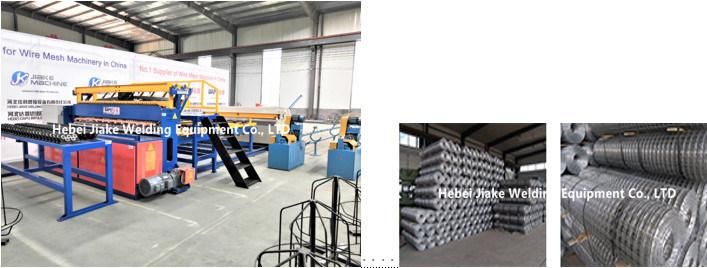

4.3 Roll BRC mesh welding machine
Roll mesh welding line,also called automatic welded mesh machine,welded wire mesh roll machine,used to make road mesh,reinforcing mesh,construction mesh etc.

ModelDP-FP-2500BNWire diameter2.5-6mm
Line wire pitch50-300mmCross wire pitchMin.50mm
Welding widthMax.2500mmRoll lengthMax.100mm
Welding speedMax.75 times/minWelding torch48pcs
Welding transformer150kva*6pcsMesh typeroll mesh
Fast PLC Control Iron Rod Wire Straightening and Cutting Machine

4.4 Pneumatic reinforcing mesh welding machine
Reinforcing mesh welding line,also called BRC mesh welding machine,construction mesh welding machine.with more than 20 years experience on desgin and manufacture,our BRC mesh welding machine is featured by high capacity,easy operation and precise control.

ModelDP-GW-2500Wire diameter3-12mm
Line wire pitch50-300mmCross wire pitchMin.12.7/25mm
Mesh lengthMax.12mMesh widthMax.3000mm
Welding torchMax.24/30/48/61pcsWelding transformer150kva*6/8/12/15pcs
Welding speedMax.80 times/minMesh typepanel mesh

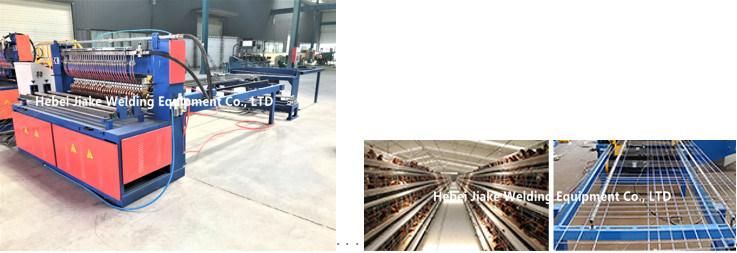

4.5 Chicken cage mesh welding machine
Chicken cage mesh welding machine,also called poultry cage mesh welding machine,breed aquatics welding machine.
It's used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh etc.

ModelDP-AW-1600EWire diameter2.2-3.5mm
Mesh widthMax.1600mmLine wire pitchMostly 50-300mm
Welding speedMax.1200 times/minCross wire pitchMin.20mm or custom
Welding torch25/30/32pcsWelding transformer125kva*3/4pcs
Weight2.5T/3T/3.2TMesh panelpanel mesh and roll mesh

Fast PLC Control Iron Rod Wire Straightening and Cutting Machine

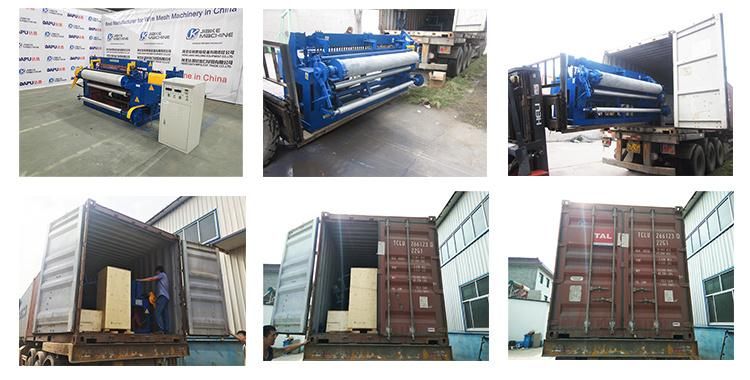

5. Loading photos.- Hebei Jiake Welding Equipment Co.,LTD
Jiake machine has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to more than 100 countries and regions including: Middle East, Kazakhstan, Vietnam, Philippines, India, Thailand, South Africa, Sudan, Polynesia, Russia and other countries and regions.
Fast PLC Control Iron Rod Wire Straightening and Cutting Machine

6. FAQ to Hebei Jiake Welding Equipment Co.,LTD

Q1Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q2How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

Q3Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q4What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q5: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.

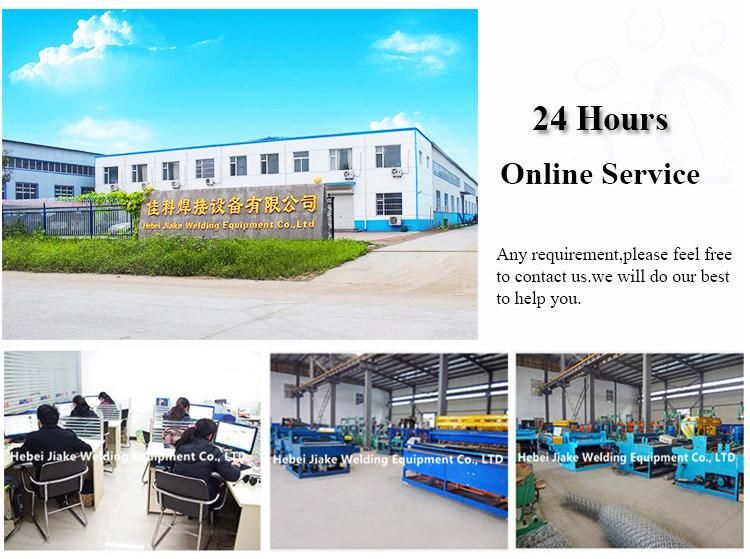

7. Our factory - Hebei Jiake Welding Equipment Co.,LTD
Hebei Jiake Welding Equipment Co., Ltd., founded in 2000, is located at the junction of Bejing, Tianjin and Shijiazhuang - Anping county, which is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery. Our company has been developing smoothly and quickly and now we have more than 100 employees. We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.
Our main products: 3D panel production line, steel bar mesh welding machine, CNC fence mesh welding equipment, EPS panel production line, 3D panel wire mesh machine (bevel inserting combination joint machine), reinforcing construction mesh (heat separate mesh) welding machine, welding equipment of mine sieve mesh, breed aquatics mesh welding machine, floor warming mesh welding machine, steel grating welding equipment, hexagonal mesh weaving machine, expanded metal machine, razor wire machine, Diamond mesh machine, pneumatic spot welding machine and straightening & cutting machine.
Fast PLC Control Iron Rod Wire Straightening and Cutting Machine


8.Our customers - Hebei Jiake Welding Equipment Co.,LTD
We stick to the business principle of "Favorable comments from high quality product and service", and thus we supply a whole-process service from product designing, developing, producing, installing and after-sales service for the clients with first-class techniques top-grade products. Our company has been awarded the title of "Credible and Reliable Product & Service Supplier" by numerous users. We also keep developing on basis of superexcellent management level and advanced development consciousness so as to bring our machinery to both domestic and overseas markets.We sincerely look forward to your cooperation in future and warmly welcome your arrival to build our common beautiful future.
Fast PLC Control Iron Rod Wire Straightening and Cutting Machine
