• Spocket：P-25.4
• Transport Package：Nude in Standard Container
• Specification：World
• Trademark：HKY
• Origin：China
• HS Code：84748010
• Production Capacity：500 Sets,Year

Basic Info.

Spocket P-25.4 Transport Package Nude in Standard Container Specification World Trademark HKY Origin China HS Code 84748010 Production Capacity 500 Sets/Year

Product Description

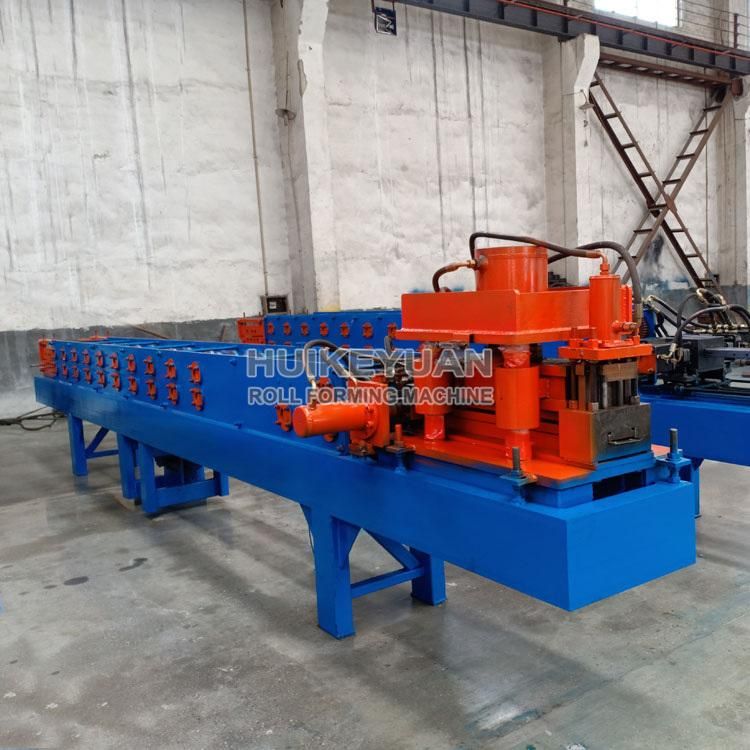

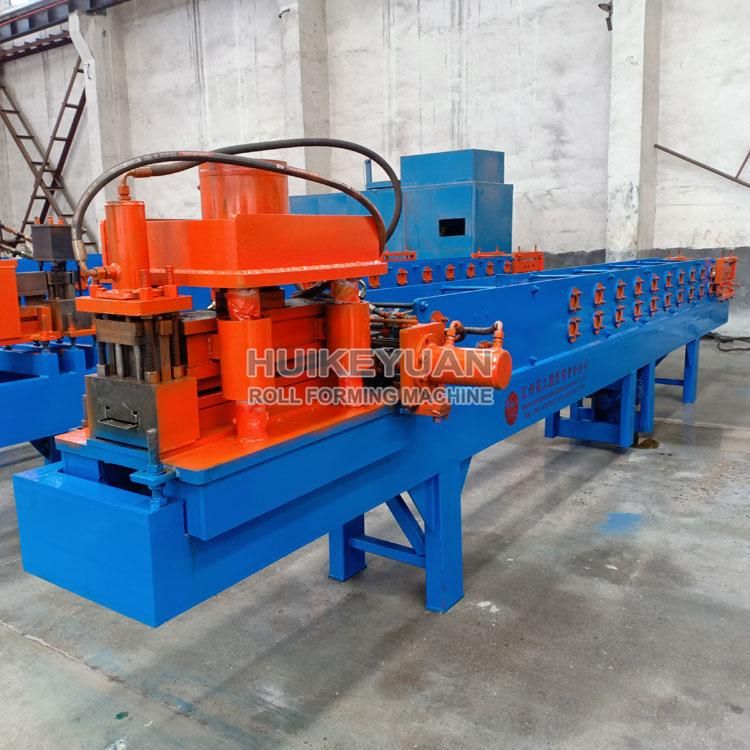

Sewing Frame Roll Forming Making Machine

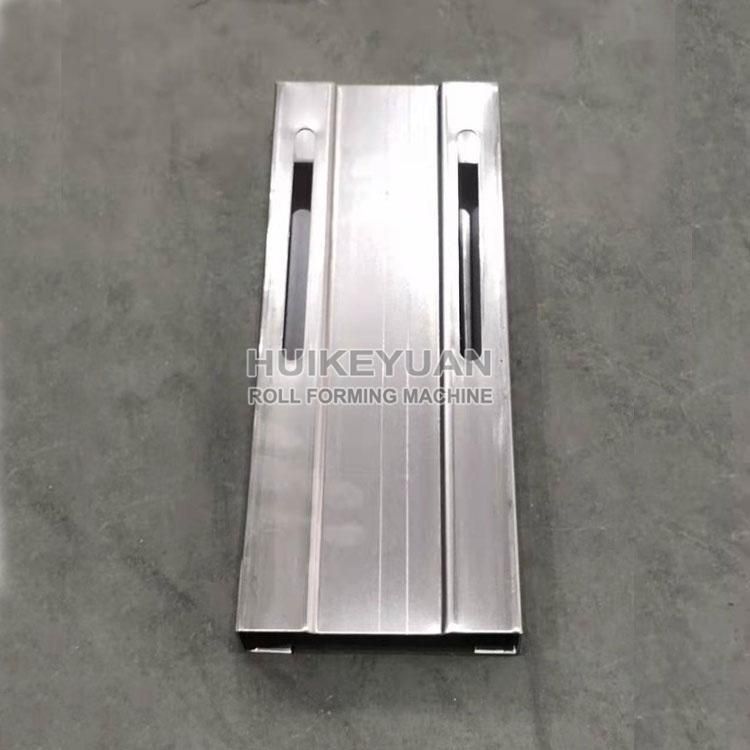

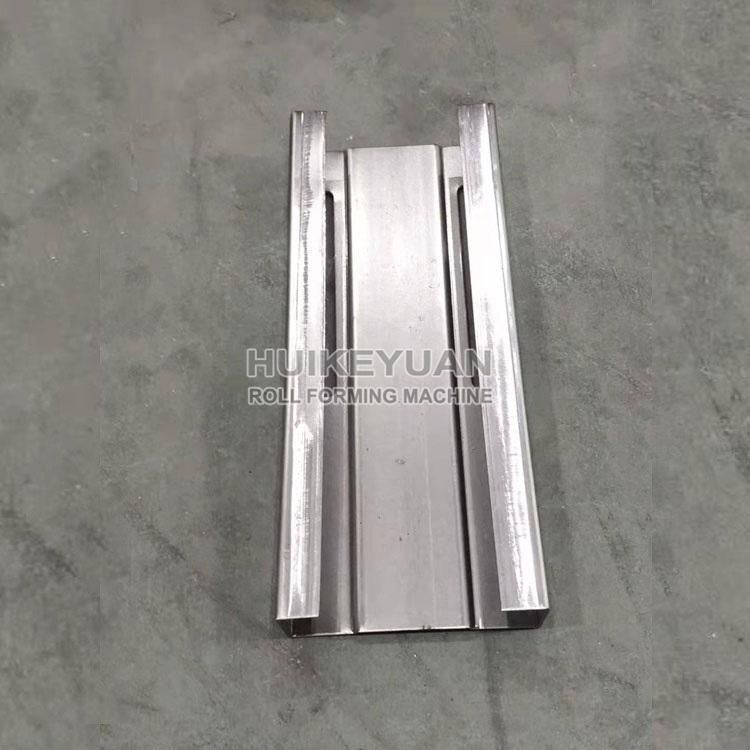

Profile Shape: C shape, U shape, L shape, Omega Shape.

Components: Feeding machine--Forming machine--Hydaulic cutting and punching device--Electric and Control system

Technical Parameters of stud and track forming machine:

1. Feeding Machine
1). Inner Diameter: 400mm-600mm
2). The largest width: 200mm
3). Capacity: 2500kg

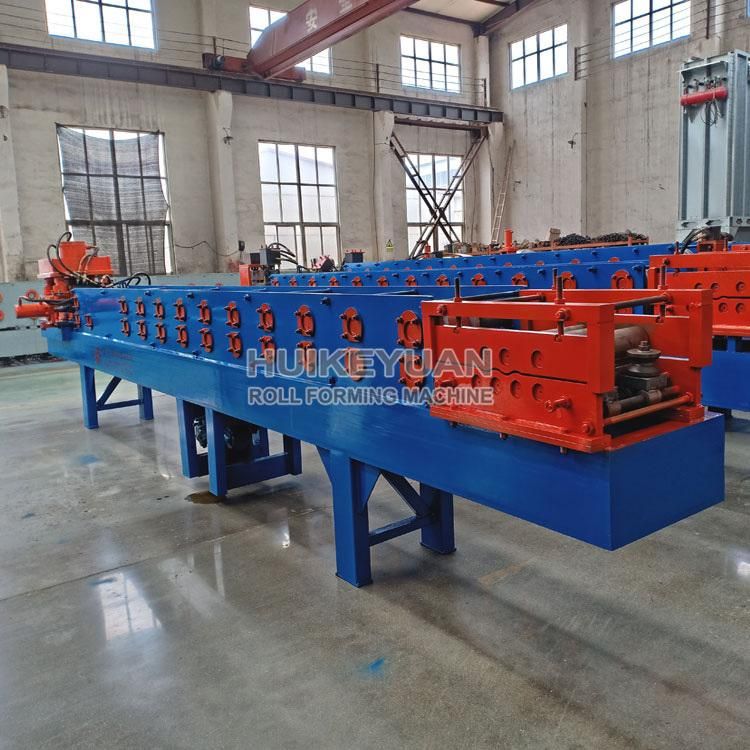

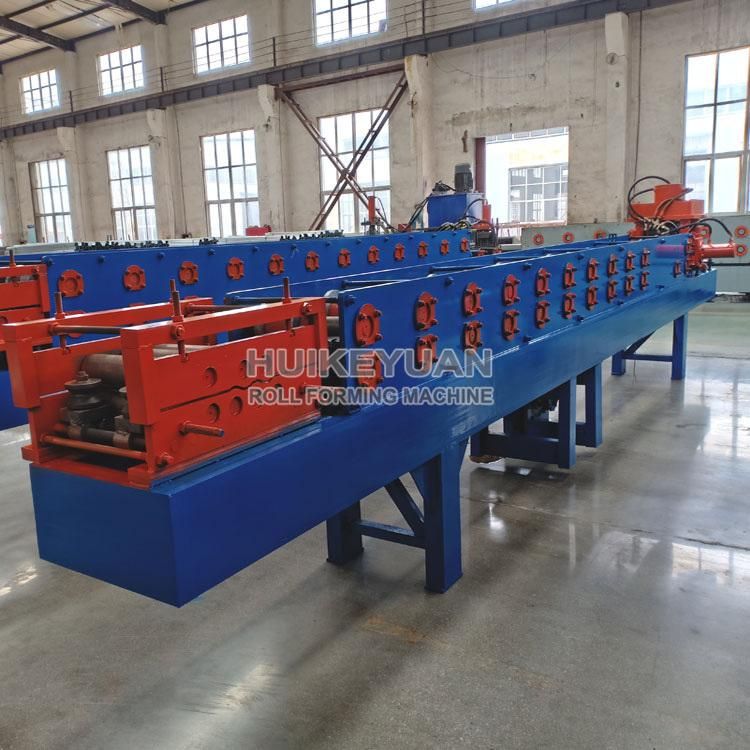

2. Forming machine
1). 10 rows
2). Material of principal axis: C45 steel Diameter: Φ 60mm
3). Roll Composite Mould: 1 set, Cutter: 5sets, Material: Cr12
4). Main Motor Power: 4Kw(Delta Taiwan frequency changer)
5). Forming Speed: 0-60m/min
6)Weight: About 4T
7)Size(L*W*H): 4500mm*700mm*900mm

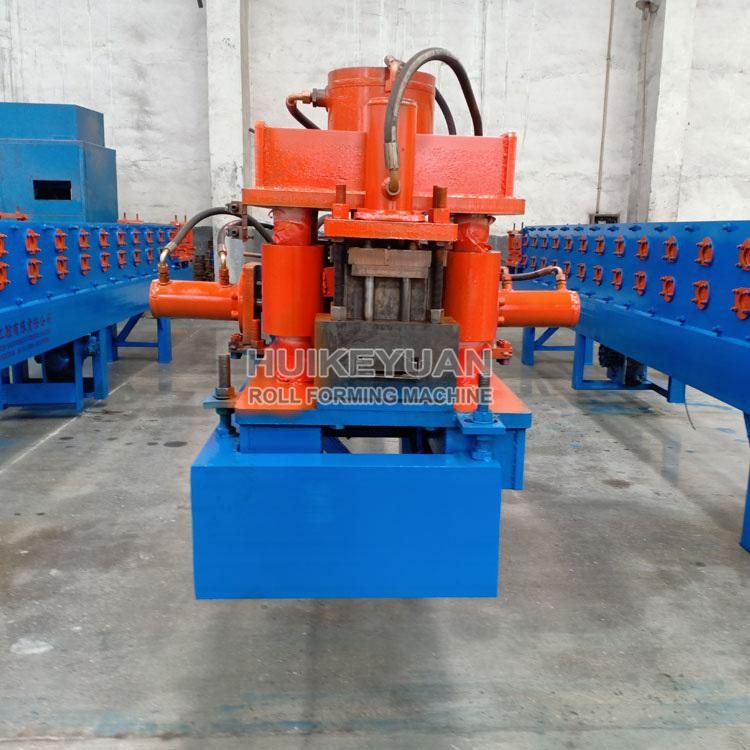

3. Hydraulic Cutter and Punching device
Hydraulic Track Cut Off, Power: 3KW

4. Control System
PLC touch screen control system with the whole line(Delta Taiwan)

We can also design and manufacture as per your request!

Advantage of our stud and track forming machines

High quality

Lower cost

Durableness

High efficiency

Reliable working

Low failure rate

Low energy consumption

Trouble free after sales service

Contact me:

Lisa Yang (Sales Manager)
BOTOU HUIKEYUAN ENGINEERING CONTROL CO.,LTD

Add: Fuzhuang Development Zone Botou City, Hebei, China

we warmly weclome you to visit our factory!
