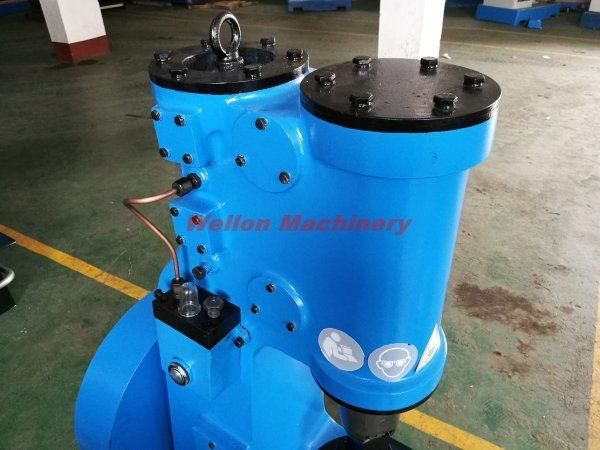

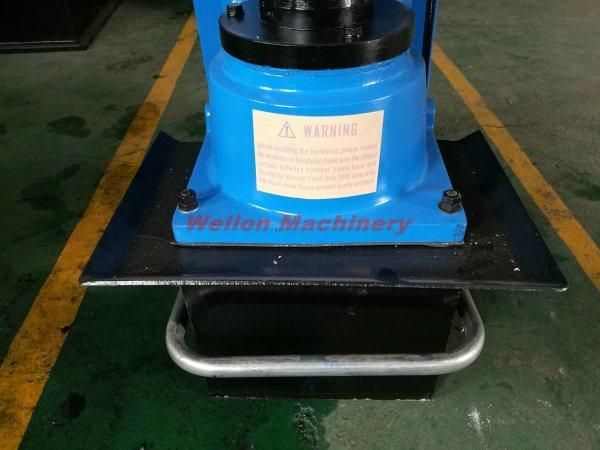

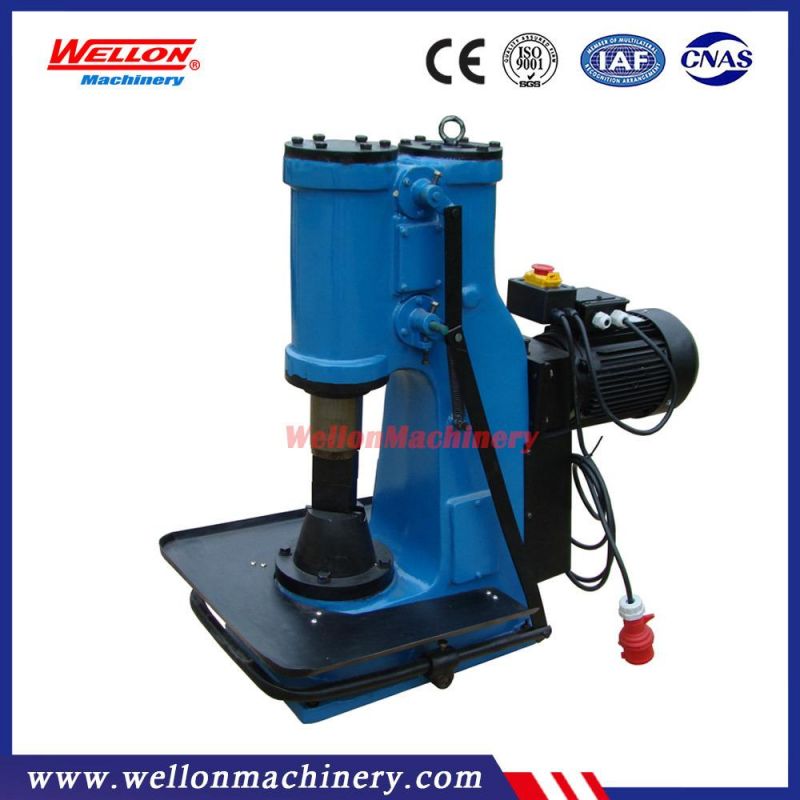

Pneumatic Forging Hammer C41-20 Air Hammer
Tengzhou Wellon Machinery Co., Ltd.- Type：Forging Operation
- Forging Forming Method：Free Forging
- Power Source：Pneumatic
- Feature：Precision
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：C41-20
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Beat Weight：20kg
- Packing Size(mm)：820X460X1100
- Transport Package：Wood Case
- Specification：CE ISO9001
- Trademark：WELLON
- Origin：China
- HS Code：8462109000
- Production Capacity：200PCS,Month
Description
Basic Info.
Model NO. C41-20 Customized Customized Advantage Use Widely Condition New Beat Weight 20kg Packing Size(mm) 820X460X1100 Transport Package Wood Case Specification CE ISO9001 Trademark WELLON Origin China HS Code 8462109000 Production Capacity 200PCS/MonthProduct Description
Performence Features:
1. Widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding,
bending and twisting.
2. Also used for forging in bolster dies
3. High quality, competitive price, easy to operate
Technical parameter:
| Model | C41-20KG |
| Beat weight(kg) | 20 kg |
| Max hit energy (kj) | 0.22 |
| Height of working(mm) | 200 mm |
| Beat times/minute | 270 /minute |
| Length of rectangular(mm) | 30X30 mm |
| Length of circular(mm) | ¢35 mm |
| Power (kW) | 2.2 kW |
| Speed of motor (rpm) | 1440 rpm |
| Weight of anvil block(kg) | 200 kg |
| Packing Size(cm) | 67X37X105 cm |
| N.W./G.W.(kg) | 500/560 kg |
