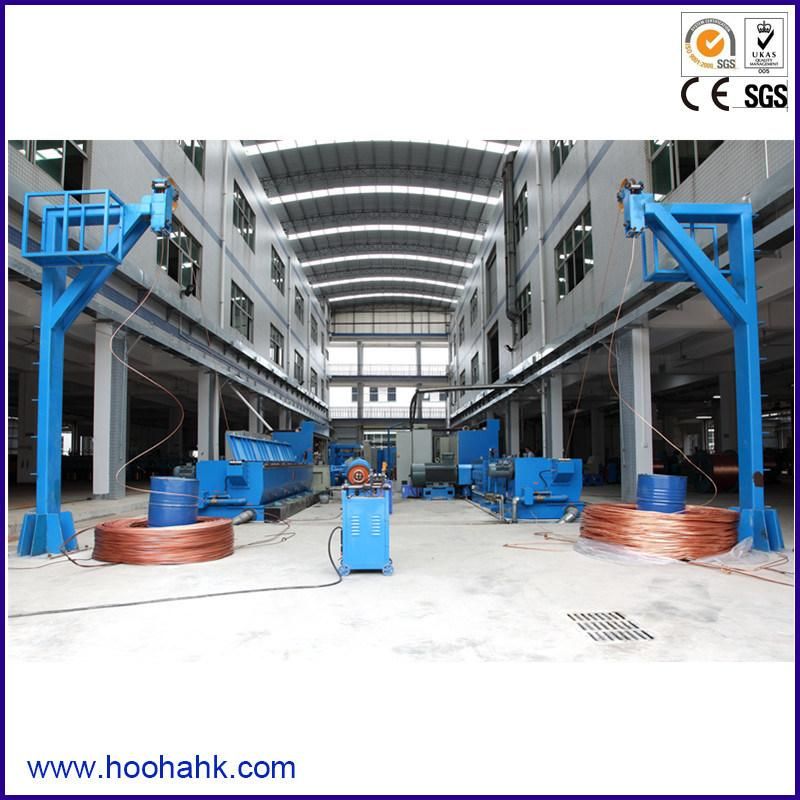

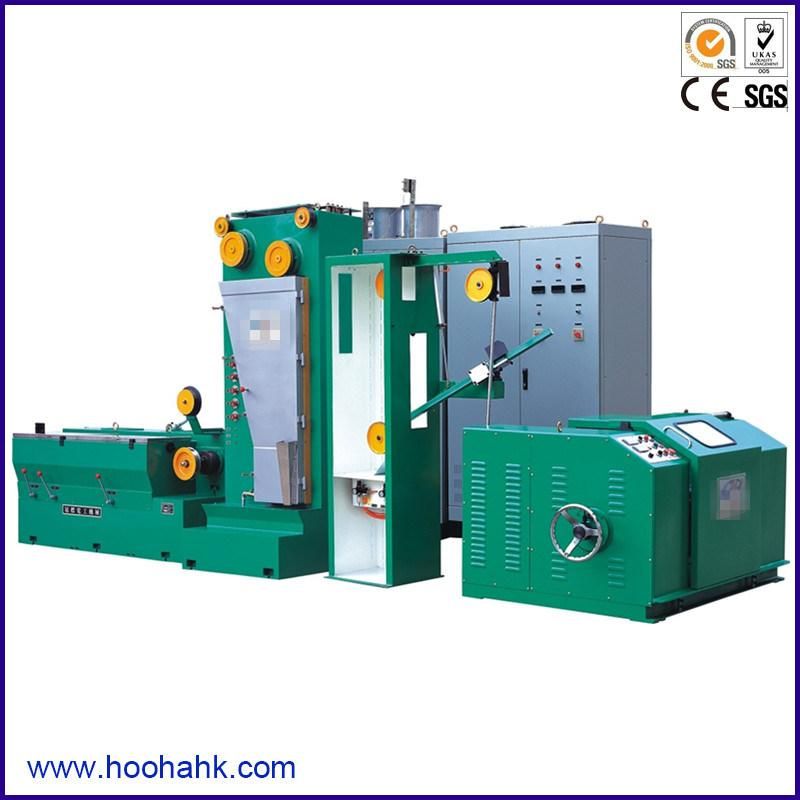

Copper Bar Cable Drawing Machine with Annealer
HOOHA Co., LIMITED- Type:LW Pulley Type Metal Drawing Machine
- Usage:Wire, Rope Wire, Prestressed Steel Wire
- Metal Material:Copper
- Outlet Diameter:0.1-1.2mm
- Max.Inlet Wire Dia.:8mm
- Block Dia.:500mm
Base Info
- Model NO.:ZLT250,21
- Max. Number of Block:21
- Certification:REACH, RoHS, ISO
- Condition:New
- Certificate:ISO
- Motor:Germany-Siemens
- Bearing:Japan-NSK
- Inverter:Siemens
- Electric Element:Siemens and Omron
- Control Box:International Standard
- Transport Package:Plastic Package
- Specification:CE ISO SGS
- Trademark:HOHA
- Origin:Dongguan
- HS Code:8479400000
- Production Capacity:3 Sets,Month
Description
wire drawing machine with annealingModel ZLT250/17 ZLT250/21 power control dual inverter wire inlet diameter 2.6-3.0mm 2.6-3.0mm wire finished diameter 0.4-1.2mm 0.4-1.2mm max wire speed 1800m/min 1800m/min max dies NO. 17 21 mechanical elongation 25%+18.7% 18.4%+15% construction of the machine boday casting+steel plate welded and annealed drawing capastan tungsten carbide fix speed capastan diameter 250mm drawing/take up motor AC55kw/AC11kw spool bobbin size SN500 SN630 option transmission type gear drive tension adjustment buffer rod with air cylinder and fix system automatic control of take up by PID max loading capacity 250kg(SN 500) or SN630 power supply 380V/50/60Hz lubrication capacity 100L/min lubrication type lubrication by full immersion brake disk type brake annealing capacity 85 KVA annealing voltage max 65V annealing current 1000A Steam consumption 10-12m³/h 0.2-0.3MPa coiling water consumption 12-18m³/h 0.2-0.25MPa air consumption 20-30m³/h 0.4-0.6Mpa dimensions 9*3*3.5M weight 7000kg
After service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
Contact us:
Jack Young
Http:hoohaco.en.made-in-china.com
http:hoohaco.en.made-in-china.com
Add:No.Beice District, Humen Town, Dongguan City, Guangdong Province,China
Why us?
1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Technical support and spare parts service.
6.Well-experienced in overseas to support customer with technical,training,operating.
7.Responsible and Good communication and customer service skills,and save time and human cost for customers.
8.Complete Foreign Trade Team.
9.Working efficiently,quickly response to customer needs.
Professional and Strong Manufacture and Sells TeamTeam of HOOHA service Name education Position Mainly responsible for project Specializing in project Industry working history ( year ) zanyang Xie college General Engineer The total project design and planning power cable machine 15 xioahua Hu college Vis general engineer The total project design and planning net cable,data cable machine 10 Chnaghong Cheng college Engineer Drawings and after-sales service Teflon,Optical fiber cable machine 25 xiuwu Chen college General Engineer The total project design and planning copper drawing machine 15 lixin Yuan college Engineer The project design and planning coppwer wire making technical 16 zhenghai Qiu college cable engineer After service cable making and cable factory management servie 15 jinxin Liu college Marketing engineer After service electrical engineer 7 xingguo Tang High school Electrical engineer After service electrical engineer 10 changqiang Li High school Maintain engineer After service machina maintain and install service 10 haipin Li University Engineering director Marketing and sales project consulting 8 sen Yang University Engineering translator Marketing and sales project consulting 5

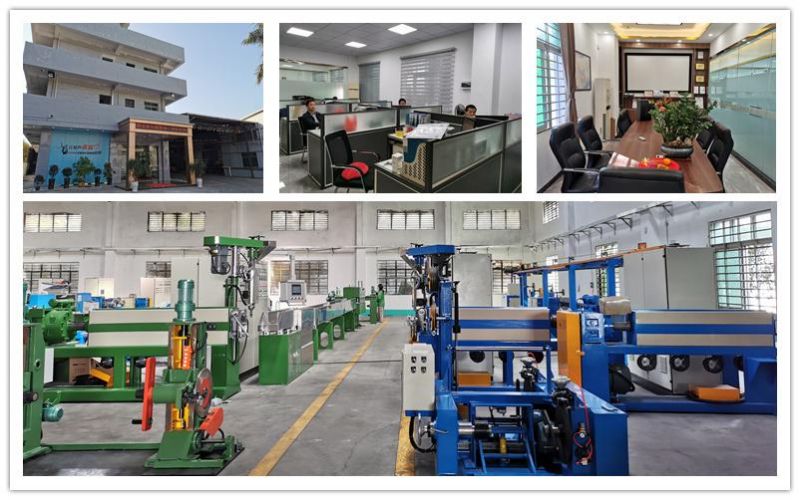

Factory & Workshop & Warehouse
FAQInstallation
(3 choices )a. HOOHA's Chinese installation team. b. HOOHA's overseas installation co-partners in your country. c. DIY Guide: HOOHA supports online guidance. How to Start Contact us and leave your contact email and phone number.
Video promotion link on Youtube:
https://hoohaco.en.made-in-china.com
After service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
Contact us:
Jack Young
Http:hoohaco.en.made-in-china.com
http:hoohaco.en.made-in-china.com
Add:No.Beice District, Humen Town, Dongguan City, Guangdong Province,China
Why us?
1.We are the cable equipment manufacturer.
2.Professional engineer,long-term to research and development for to cable equipment .
3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
5.Technical support and spare parts service.
6.Well-experienced in overseas to support customer with technical,training,operating.
7.Responsible and Good communication and customer service skills,and save time and human cost for customers.
8.Complete Foreign Trade Team.
9.Working efficiently,quickly response to customer needs.
Professional and Strong Manufacture and Sells Team
Factory & Workshop & Warehouse
FAQInstallation
(3 choices )
Video promotion link on Youtube:
https://hoohaco.en.made-in-china.com
