• Model NO.：as the drawing
• Material：Alloy
• Application：Metal Processing Machinery Parts
• Application Range：Continuous Annealing Line
• Production Method：Casting and Welding
• Property：Heating Resistance
• Transport Package：Woodern Case
• Specification：Export package
• Trademark：FANGLE
• Origin：China
• Production Capacity：20000 Tons,Year

Basic Info.

Model NO. as the drawing Material Alloy Application Metal Processing Machinery Parts Application Range Continuous Annealing Line Production Method Casting and Welding Property Heating Resistance Transport Package Woodern Case Specification Export package Trademark FANGLE Origin China Production Capacity 20000 Tons/Year

Product Description

Radiant tube for Continuous Annealing line
Description
Radiant tube is a very important tool for continuous annealing production line.In the continuous annealing furnace, gas is burned in the radiant tube.The heating radiant tube will heat the strip steel and furnace wall, it will eliminate the inner stress of strip steel and improve its mechanical property.As the temperature of radiant tube exceed strip steel 50-100 °C, it requires radiant tube with good high temperature resistance.
Commonly used material : GX40Cr28Ni48W5, GX40Cr25Ni35, and GX40Cr25Ni20.
Manufacture technique:
Our manufacturing facilities supply a wide variety of alloy tubes to the heat treating industry. We can produce tubes to your exact specifications. Our strict attention to material selection, joining specifications, and inspection procedures insures that the highest quality product is delivered.

• Cast or Wrought Available
• 3" Diameter and Larger
• Various Shapes (O-Tubes, S-Tubes, U-Tubes, W-Tubes, P-Tubes and Custom)
• Mounting Assemblies Available
• Most Alloys (ASME 309, 310, 330, 333, 253-MA, Inconel™, H-Grades and Others)
• Certified Welding Engineer On Staff

Design :  Various shapes of radiant tube according to the working condition.
Products photos:

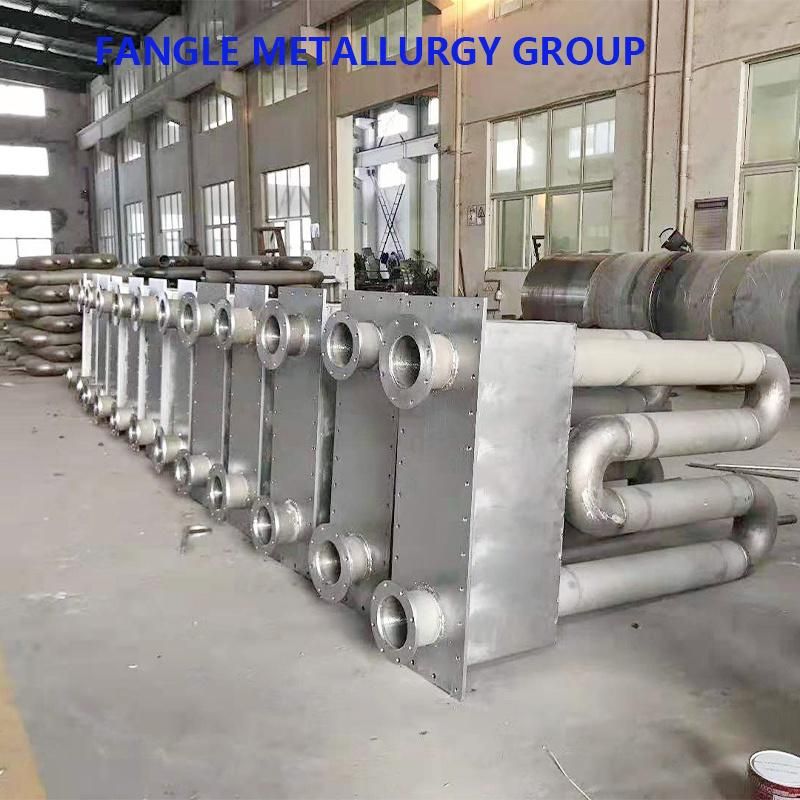

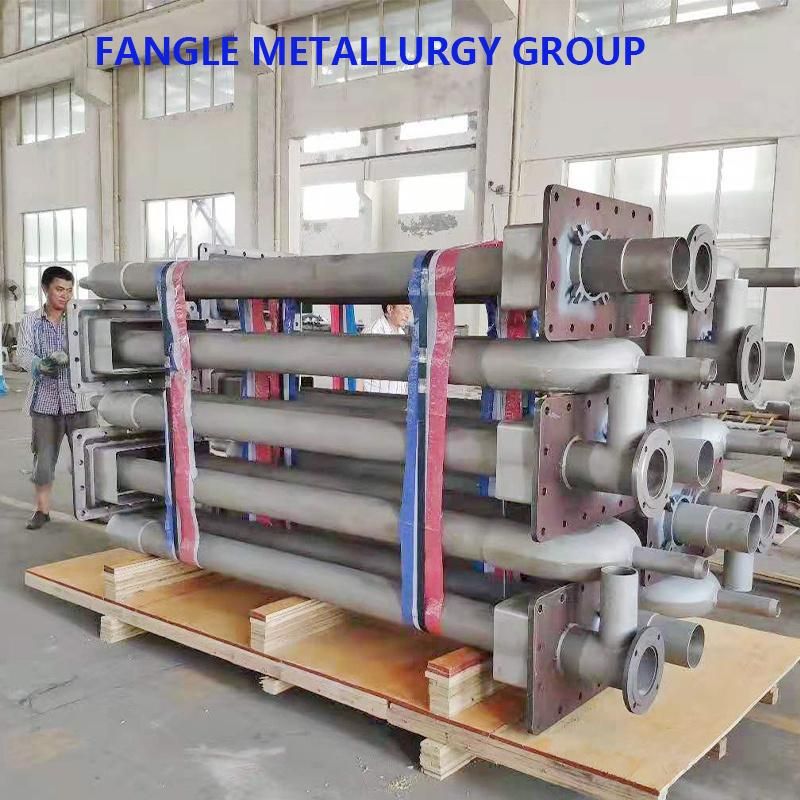

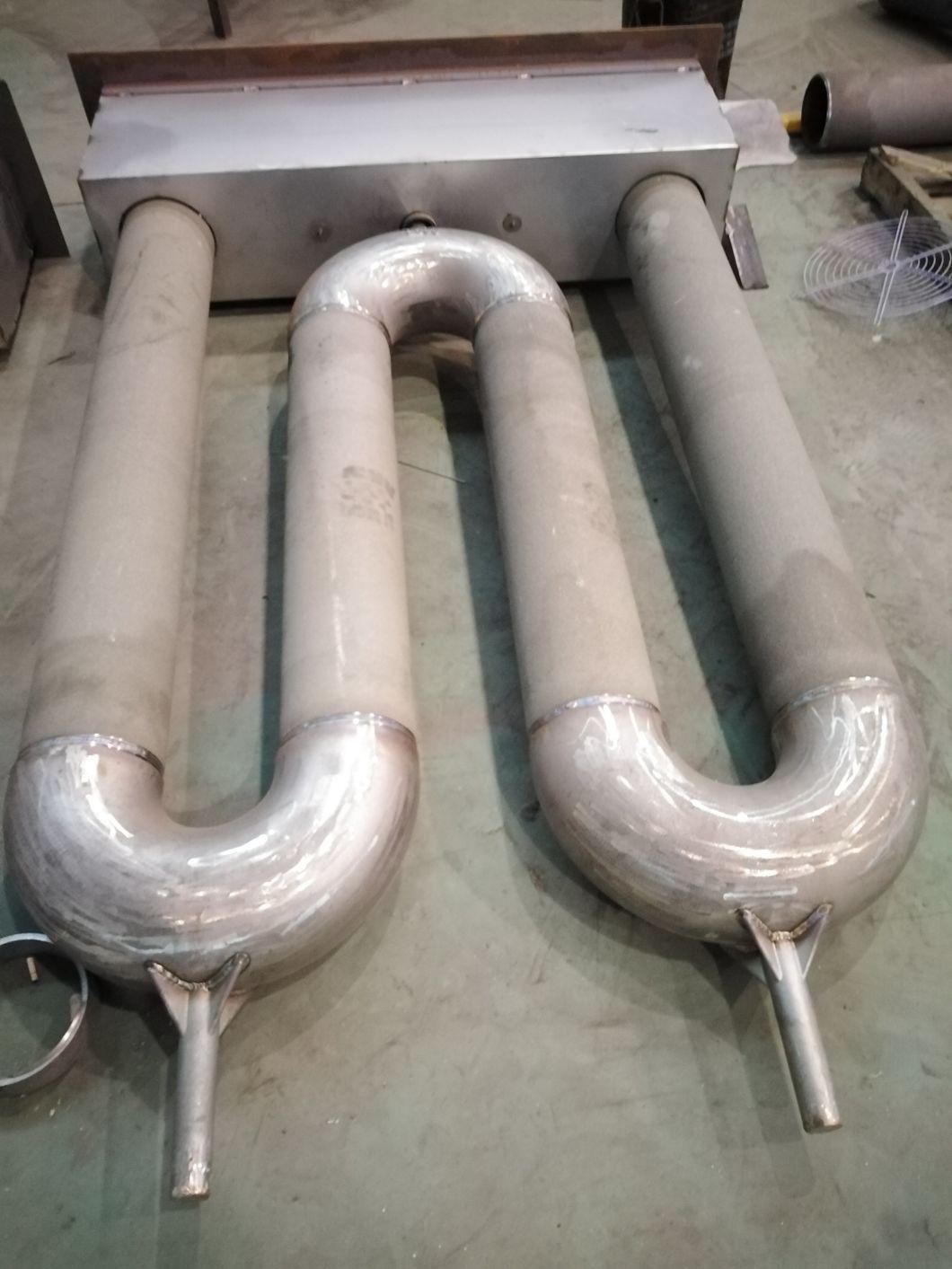

W type radiant tube:

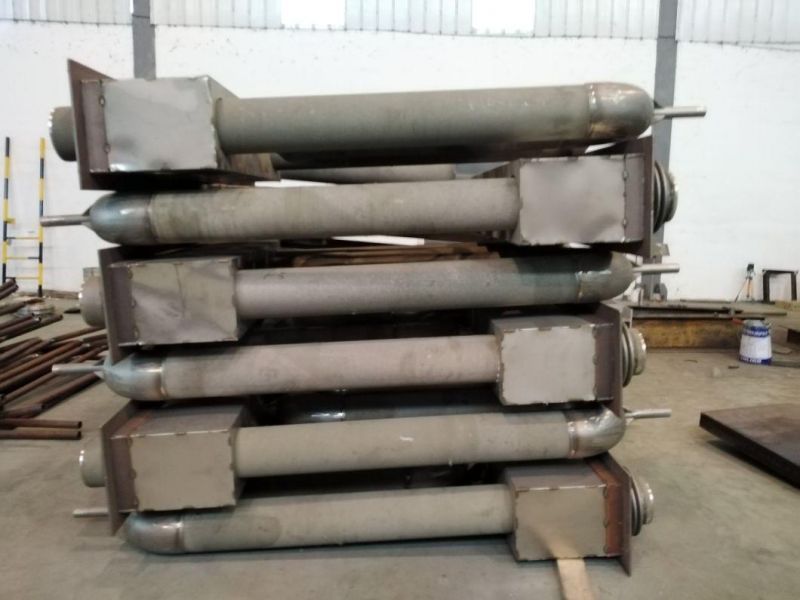

U type radiant tube:
