Tubeless Wheel Rim Roll Forming Machine Tubeless Wheel Rim Making Machine

Nantong Zhenhuan Trade Co., Ltd.
  • After-sales Service：Yes
  • Warranty：One Year
  • Brand：Zhenhuan
  • Rim Diameter：12-18"
  • Rim Width：4-8"
  • Rim Wall Thickness：2-6mm

Base Info

  • Model NO.：GXJ-002
  • Main Shafts Diameter：135mm
  • Main Shafts Length：350mm
  • Main Shaft Speed：50-450mm
  • Hydraulic Pump Motor Power：68kw
  • Lubricating Method：Motorized Centralized Lubricating
  • Machine Dimension：2000 X 1600 X 1800mm
  • Transport Package：Wooden Package
  • Specification：Customized
  • Trademark：Zhenhuan
  • Origin：China

Description

Basic Info.

Model NO. GXJ-002 Main Shafts Diameter 135mm Main Shafts Length 350mm Main Shaft Speed 50-450mm Hydraulic Pump Motor Power 68kw Lubricating Method Motorized Centralized Lubricating Machine Dimension 2000 X 1600 X 1800mm Transport Package Wooden Package Specification Customized Trademark Zhenhuan Origin China

Product Description

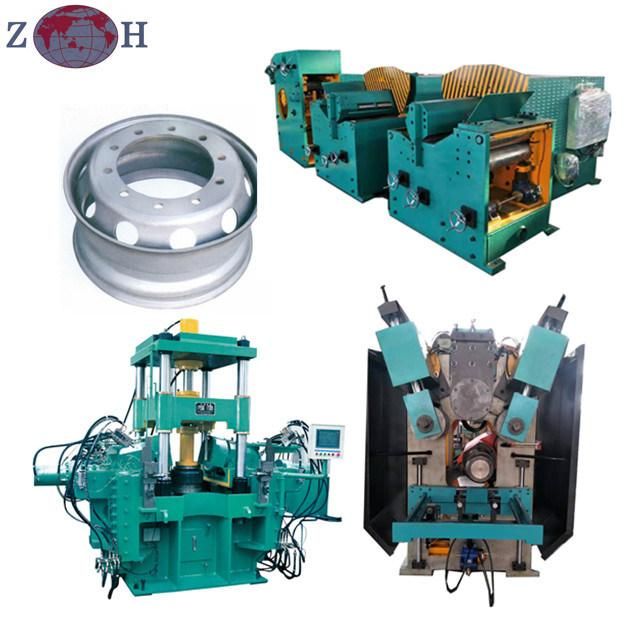

   Tubeless wheel rim roll forming machine
Tubeless Wheel Rim Roll Forming Machine Tubeless Wheel Rim Making Machine

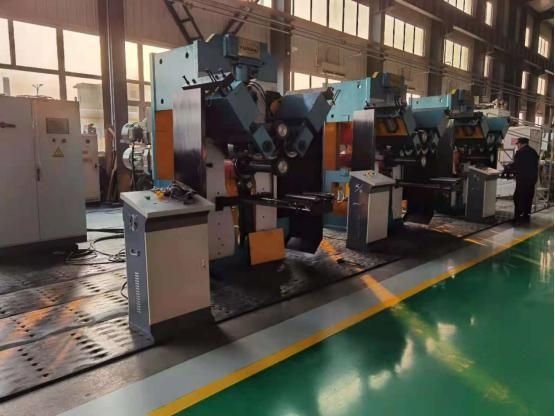

Description of tubeless wheel rim roll forming machine

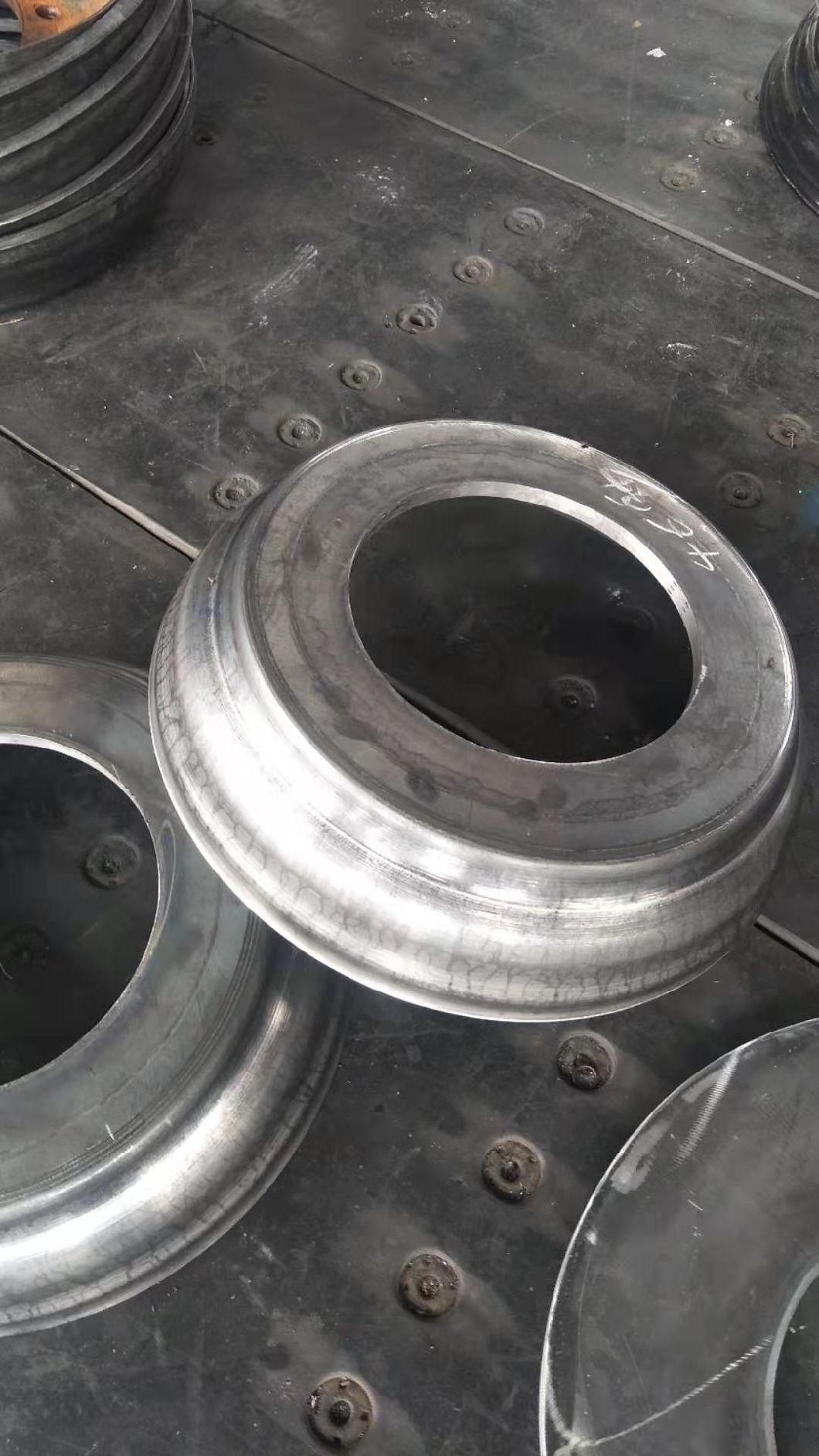

This machine is specially designed for forming flared rims into final shape. Usually there need 3 or 4 same machines with different forming rollers for this processing. If you only want to have one machine to save cost, you should change forming rollers from time to time.
The main shafts are driven by hydraulic; the side guiding shafts are driven by pneumatic.
This machine is equipped with automatic loading system, only one operator is needed for three machines.
The main shafts are made by 40Cr, hardened & tempered, long life. The main shafts can be 3D adjusted (up & down, forward & backward, incline).



Main technical data of tubeless wheel rim roll forming machine
1. Suitable rim diameter: 12 ~ 18
2. Suitable rim width: 4~8"
3. Main shafts diameter: 135mm
4. Main shafts length: 350mm
5. Main forming roller quantity: 2
6. Guiding roller quantity: 2
7. Side guiding shaft diameter: φ90 mm
8. Side guiding stroke: 200mm
9. Main shaft speed: 50~450 rpm
10. Max. distance between centers of the upper and lower main shafts: 362mm
11. Min. distance between centers of the upper and lower main shafts: 262mm
12. Main shafts adjustable tilt angle: 0 ~ 1.5 º
13. Lower main shaft axial adjustable distance: ± 2 mm
14. Lower main shaft raising force: 10000kgf
15. Main shafts torque: 3850N·m
16. Hydraulic pump motor power: 68kW
17. Lubricating method: motorized centralized lubricating
18. Machine dimension: 2000 x 1600 x 1800mm
 Tubeless Wheel Rim Roll Forming Machine Tubeless Wheel Rim Making MachineTubeless Wheel Rim Roll Forming Machine Tubeless Wheel Rim Making MachineTubeless Wheel Rim Roll Forming Machine Tubeless Wheel Rim Making MachineTubeless Wheel Rim Roll Forming Machine Tubeless Wheel Rim Making Machine
Guarantee of tubeless wheel rim roll forming machine: within one year since the date of B/L
We, Nantong Zhenhuan Trade Co., Ltd., are specialized in different kind of machines for more than 10 years. We can provide you not only good quality wheel rim related machines but also good after-sale services.
