Tractor Auto Wheel Rim Butt Welding Machine China
Nantong Zhenhuan Trade Co., Ltd.- After-sales Service：Yes
- Warranty：One Year
- Productivity：2 Rims Per Minute
- Rated Transformer Capacity：800kVA
- Welding Speed：0.8-30mm,Min
- Adjustable Voltage Range：7.6-14.6V
Base Info
- Model NO.：UN-800
- Suitable Steel Wheel Rim Section Area：400-4500mm2
- Duty Cycle：60%
- Suitable Rim Min. Width：100mm
- Suitable Rim Max. Width：500mm
- Machine Dimension：2800 X1800 X2500mm
- Machine Weight：15t
- Transport Package：Wooden Package
- Specification：UN-800
- Trademark：ZHENHUAN
- Origin：China
Description
Basic Info.
Model NO. UN-800 Suitable Steel Wheel Rim Section Area 400-4500mm2 Duty Cycle 60% Suitable Rim Min. Width 100mm Suitable Rim Max. Width 500mm Machine Dimension 2800 X1800 X2500mm Machine Weight 15t Transport Package Wooden Package Specification UN-800 Trademark ZHENHUAN Origin ChinaProduct Description

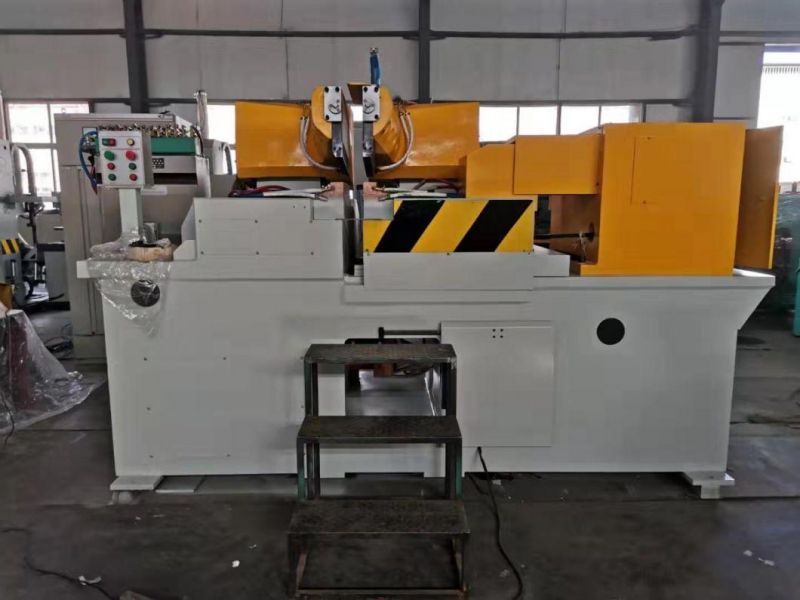

Tractor auto wheel rim butt welding machine
Description of tractor auto wheel rim butt welding machine
This machine is specially designed for welding the rounded part from the first rounding step.
It is PLC control, touch screen operation, linear guide guiding, manual operation or automatic operation. All the actions such as clamping, melting, upsetting, are hydraulic driven.
Clamping jaws are made by cast steel, long life.
Conductive parts are of high conductivity, made from wear-resistant Cr-Al-Mn-Zr-Cu alloy.
Primary windings of welding transformer have good thermal-resistance, anti-shock and insulation performance; Secondary windings have good conductivity and cooling effect.
We, Nantong Zhenhuan Trade Co., Ltd., are specialized in different kind of machines for more than 10 years. We can provide you not only good quality wheel rim related machines but also good after-sale services.
1 | Rated transformer capacity | 800kV |
| 2 | Rated primary voltage | 380V |
| 3 | Suitable wheel rim section area | 400-4500mm2 |
| 4 | Suitable rim max. width | 500mm |
| 5 | Suitable rim min. width | 100mm |
| 6 | Welding speed | 0.8-30mm/min |
| 7 | Max. clamping force | 600KN |
| 8 | Max. upsetting force | 300KN |
| 9 | Jaw max. adjustment | 80mm |
| 10 | Adjustable voltage range | 7.6-14.6V |
| 11 | Hydraulic working pressure | 5-15MPa |
| 12 | Hydraulic pump motor power | 22kW |
| 13 | Cooling water pressure | 0.2MPa |
| 14 | Cooling water flow | ≥ 3000L/N |
| 15 | Duty cycle | 60% |
| 16 | Machine dimension | 2800x2000x2500mm |
| 17 | Machine weight | 15T |
