• Model NO.：Two sizes
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Upright Roll Forming Machine：Upright Roll Forming Machine
• Transport Package：No Packing
• Specification：CE SGS
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

Basic Info.

Model NO. Two sizes Customized Customized Advantage Use Widely Condition New Upright Roll Forming Machine Upright Roll Forming Machine Transport Package No Packing Specification CE SGS Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

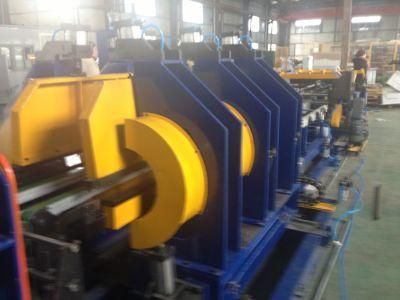

Main technical specification:1: frame: adopt Q235 steel welding
2: base on customer this machine with cooling system
 water pump: 1.5KW
 spout: every two station have one spout
 water box which can make water can circulate working: one piece3: profile details:100x100 upright roll forming machine
Thickness: 3.0mm steel type ASTM A570 Gr45
Coil width: 319mm120x100 upright roll forming machine
Thickness: 3.0mm steel type ASTM A570 Gr45
Coil width: 339mm
4: roll station: 18 stations
5: material of roller: Gcr15 steel, polished and coated with chrome HRC58-60°
6:material of main shaft:45forge steel   diameter roller: 65mm7: working speed:
12m/min (include punching and cutting, length in≥3m)
Maximal speed in 30m/min (not include punching and cutting)
8: main power: 18.5KW, motor fix in side to save space, Siemens brand
9: Transmission: by gear box for each station
10: Sprocket wheel: 1 inch 19 teeth, HRC 58-60°
11: feeding and guide: surface polished and coated with chrome, feeding size is adjustable by hand wheel
12: machine adopts protect cover to protect operator's safe
13: machine structure: cast iron structure
14: Voltage, Frequency, Phase: 380 V, 60 Hz, 3Phase
15: how to change the width 100mm to 120mm.
      Change the rings between the rollers.
      Change the cutting blade
