• Model NO.：colo-668
• Brand No：Colo
• Weight：55kgs
• Kind：Pluse and Smart
• Dimension(L*W*H)：120*79*73
• Voltage：220V,110V
• Powder：50W
• Transport Package：Wodden Case
• Specification：standard
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424909090
• Production Capacity：1000PCS

Basic Info.

Model NO. colo-668 Brand No Colo Weight 55kgs Kind Pluse and Smart Dimension(L*W*H) 120*79*73 Voltage 220V/110V Powder 50W Transport Package Wodden Case Specification standard Trademark COLO Origin Hangzhou. China HS Code 8424909090 Production Capacity 1000PCS

Product Description

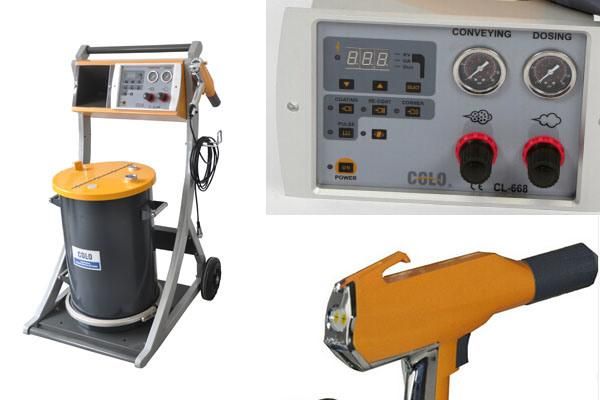

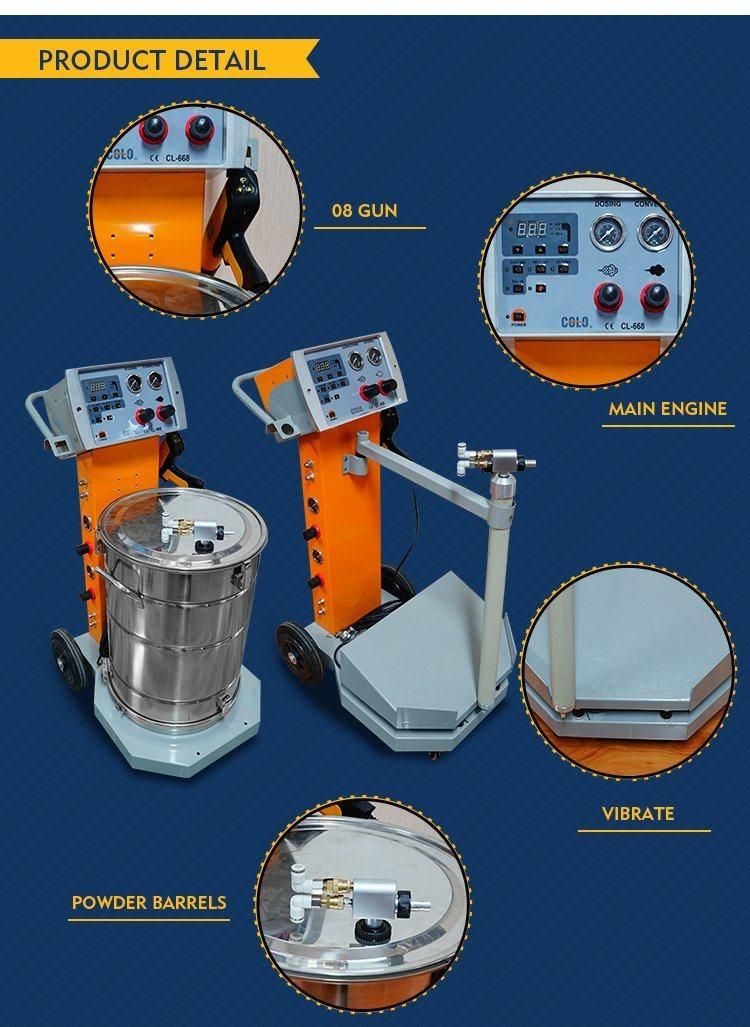

Manual Powder Spary System

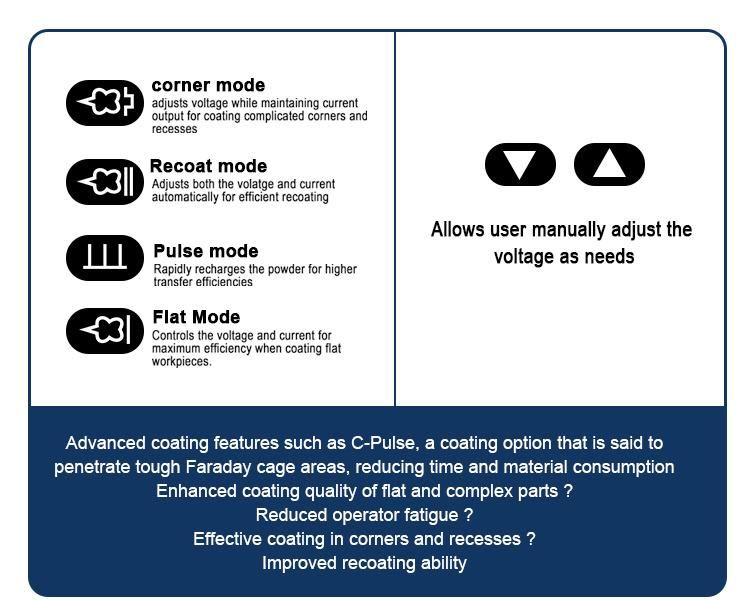

It has pulse and one-touch intelligent function,and is good for flat parts, complex parts,
recoat parts and conner.

Flat model:  maximizes voltage for superior transfer efficiency with coating flats parts.
Complex model: adjust the voltage while holding current when coating complicated shapes and corners.
Recoat model: adjust the voltage and current automatically for recoating of parts.
Pulse model: rapidly recharges the powder to coat complex shapes.
Special features
1.Colo Newly integrated technology can lead to powder savings due to excellent transfer efficiency, easily penetrating corners
2.Colo Anti-static powder hose is developed with colo technology and it can prevent risk of fire by removing spark or electrical arc.
3.Prevents safety accidents caused by electrostatic shocks to the worker.
4.The new technology of one touch button installed in the gun enables you to clean inside of the gun and powder hose easily and quickly.

technitical datas

power range	220v
Frequency	50/60HZ
Temperature range in use	-10   +50
Gun weight:	500g
Rated output voltage	24VDC
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (  adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Maximum input-air pressure	8kg/cm
Optimum input-air pressure	6kg/cm

OPERATION
 The operator should hold the gun in his bare hand
 If gloves are worm ,the palm should be out to assure skin to metal contact
 The operator should wear shoes with conductive shoes e.g leather
 Rubber shoes are not conductive .

Ground the tip of the gun before cleaning or changing nozzles.
When the gun is not in use , it should be hung so that the nozzle is within four inches of a grounded conductor
The operator should wear a filter-type respiator anytime he is exposed to dusty conditions High pressure powder many cause injury ,Keep the rear switch  "off" position in no -use condiction

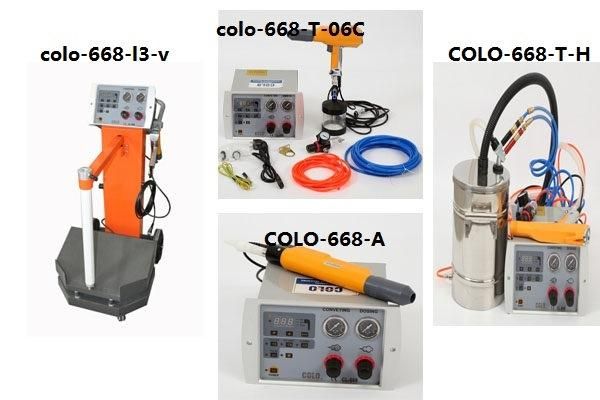

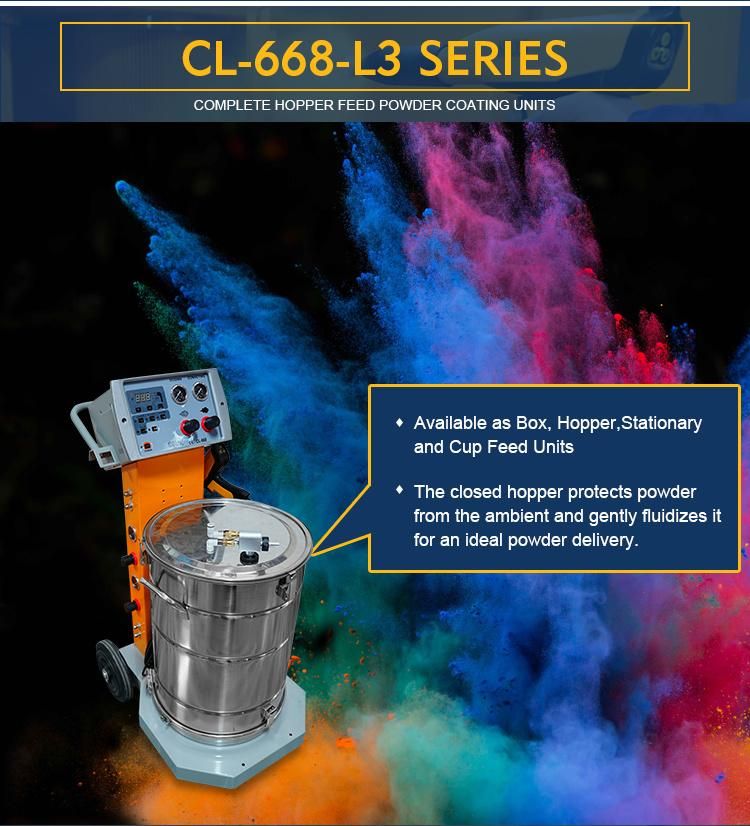

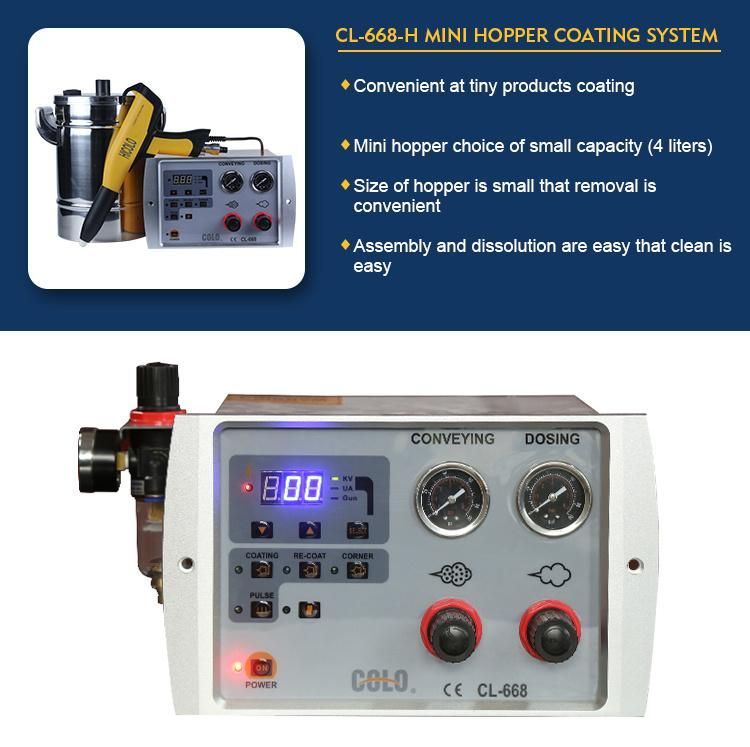

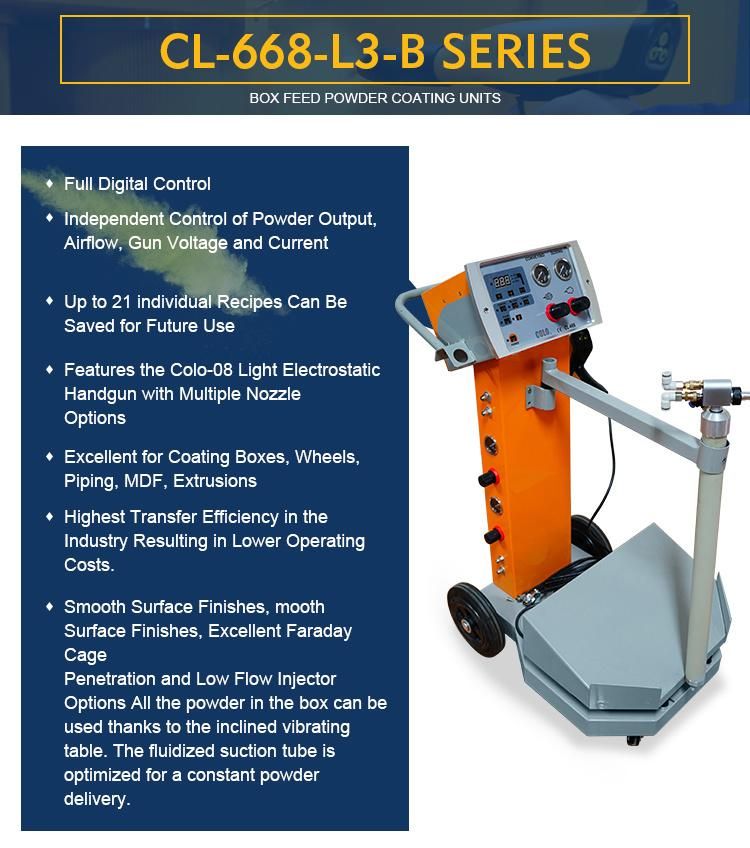

Other types of 668 series

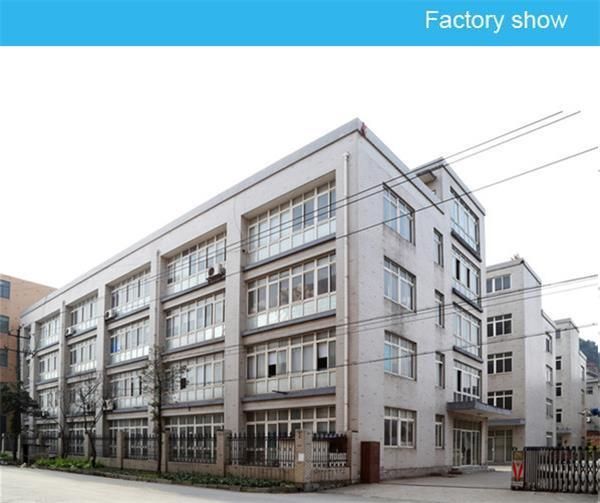

Company Information

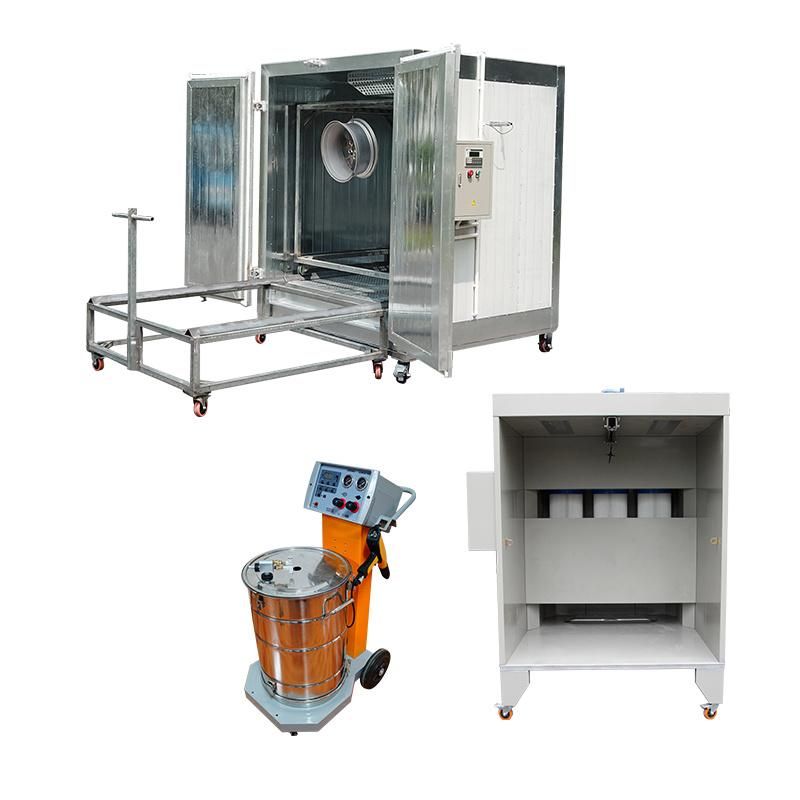

Colo is the leading powder coating equipment manufacturer in China, which provides high quality equipments to more than 90 countries all oven the world with advanced manufacturing machines and professional technicians. Colo offers a wide range of power coating equipments, namely powder
coating machine, power coating gun, spray booth, curing oven, automatic powder coating applicator,
powder coating line andreplacement of spare parts for the famous brand in the world.


Any question,pls cotact sonne
