• Model NO.：colo-668-L3
• Brand No：Colo
• Weight：55kgs
• Kind：Pluse and Smart
• Dimension(L*W*H)：69X56X52 Cm
• Voltage：220V,110V
• Powder：50W
• Transport Package：Wodden Case
• Specification：standard
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1000PCS

Basic Info.

Model NO. colo-668-L3 Brand No Colo Weight 55kgs Kind Pluse and Smart Dimension(L*W*H) 69X56X52 Cm Voltage 220V/110V Powder 50W Transport Package Wodden Case Specification standard Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 1000PCS

Product Description

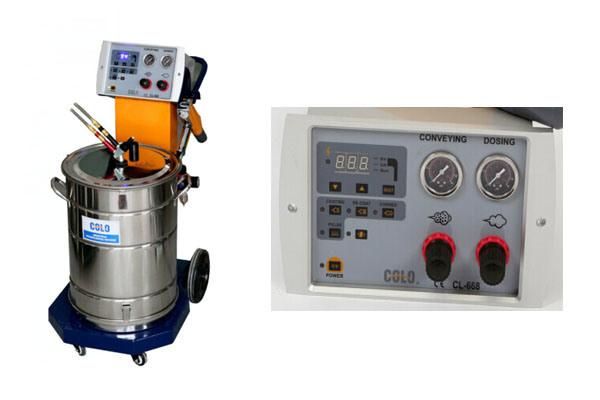

Manual Powder Coating Machine Kit with Pistol

Flat model:  maximizes voltage for superior transfer efficiency with coating flats parts.
Complex model: adjust the voltage while holding current when coating complicated shapes and corners.
Recoat model: adjust the voltage and current automatically for recoating of parts.
Pulse model: rapidly recharges the powder to coat complex shapes.

Special features
 1.Colo Newly integrated technology can lead to powder savings due to excellent transfer efficiency, easily penetrating corners
2.Colo Anti-static powder hose is developed with colo technology and it can prevent risk of fire by removing spark or electrical arc.
3.Prevents safety accidents caused by electrostatic shocks to the worker.
4.The new technology of one touch button installed in the gun enables you to clean inside of the gun and powder hose easily and quickly.


Technical Parameter

power range	220v
Frequency	50/60HZ
Temperature range in use	-10   +50
Gun weight:	500g
Rated output voltage	24VDC
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (  adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Maximum input-air pressure	8kg/cm
Optimum input-air pressure	6kg/cm

The machine equiped with cl-06 manula gun

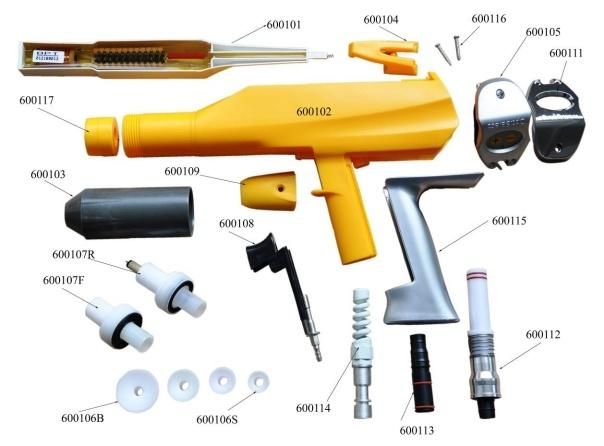

We can also supply the parts of the gun,you just need send the item number or

for us confirmation.

Application for workpiece

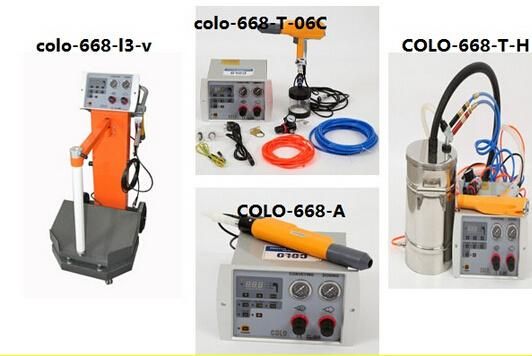

Other types of our colo-668 powder coating machine

COLO-668-L3-V

COLO-668-T-O6C

COLO-668-Automatic

COLO-668--T-H;etc.

HANGZHOU COLOR POWDER COATING EQUIPMENT CO.,LTD is a leading company

in China in the electrostatic powder coating systems industry. We are an innovator

of powder coating equipment, and export into more than 90 Countries including the

US, Mexico, Peru, Colombia, Russia, Poland, UK, Germany, Vietnam, Thailand, Korea,

Malaysia, Egypt, Morocco along with many others.
