• Model NO.：XPTHC-4H
• Transport Package：Carton, Wooden Case
• Specification：CE, ISO
• Trademark：Longteng
• Origin：Wuxi, China (Mainland)
• HS Code：8515900000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. XPTHC-4H Transport Package Carton, Wooden Case Specification CE, ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/Year

Product Description

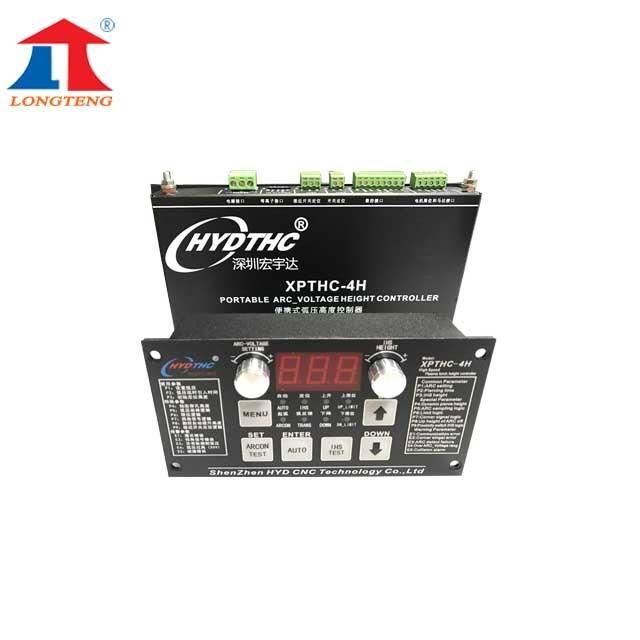

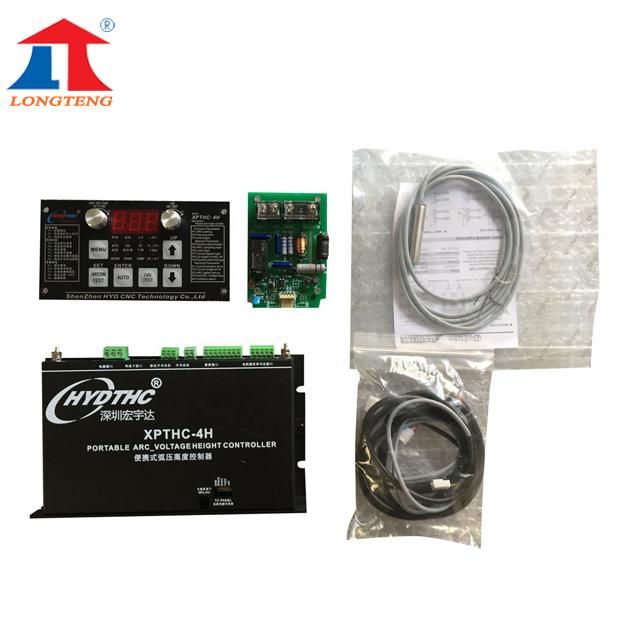

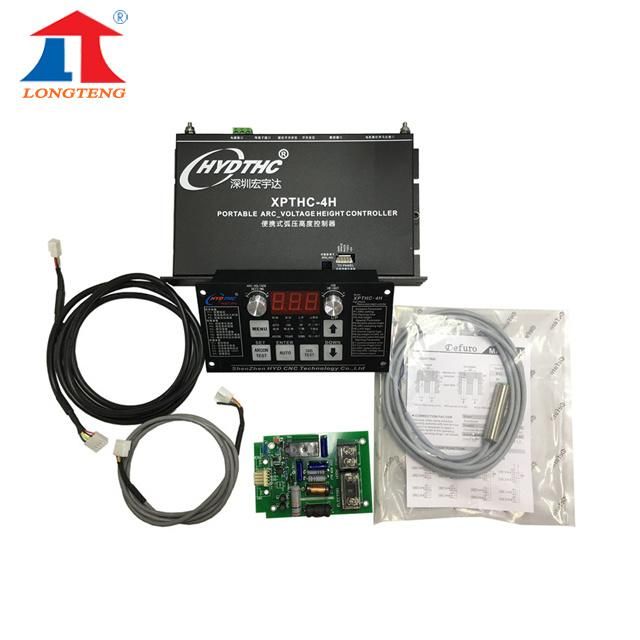

Torch height controller xpthc-4h for CNC cutting machine



1.Model:HYD XPTHC-4H  (XPTHC-4 is not produced now.)

XPTHC-4H is a new design that can completely replace the arc voltage of the old XPTHC-4H
Based on the existing functions of the old model, the new XPTHC-4H adds many new functions:

1. Better operation, new operation panel design.
2. Added Dynamic Pierce, protect torch retaining cap.
3. Better anti-interference design.
4. Better work stability.


2.Other types:XPTHC-100III,XPTHC-100V,XPTHC-300-3,PTHC-200DC...



3.Basic Parameter:

1) Input Power:DC24-36 or AC24V+10%,50Hz/60H z
2) Down/Up Motor:DC24V DC MOTOR
3) Motor Drive: PWM
4) Output Current:1A-4A, Load capacity:100W
5) Working temperature:-10-60ºC
6) Voltage Divide ratio :50:1
7) Control accuracy :±1V -±2V
8) Size :length *width *height:272mm*225mm*80mm
9) The speed of lifting:1000mm/min-4000mm/min(Contact the supplier if it exceeds the range of speed)



4.Application

XPTHC-4H supports almost all plasma cutters on market like Hypertherm, Thermal Dynamics…include HD plasmas like HPR130, 260, Ultra-cut series…
And it supports all CNC cutting controllers on market like Hypertherm, Burny industrial level controllers or Mach3 such DIY controllers, because XPTHC-4HIII can start Auto Height control with or without Auto enable signal from CNC. But with Auto enable/disable signal from CNC, THC would work better.
