• Model NO.：PE-CUT-A1
• Type for Cutting Machine：Flame Cutting Machine
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO9001 & CE&FDA
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. PE-CUT-A1 Type for Cutting Machine Flame Cutting Machine Transport Package Sea-Worthy Packing or Air-Worthy Packing Specification ISO9001 & CE&FDA Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 100 Units/Month

Product Description

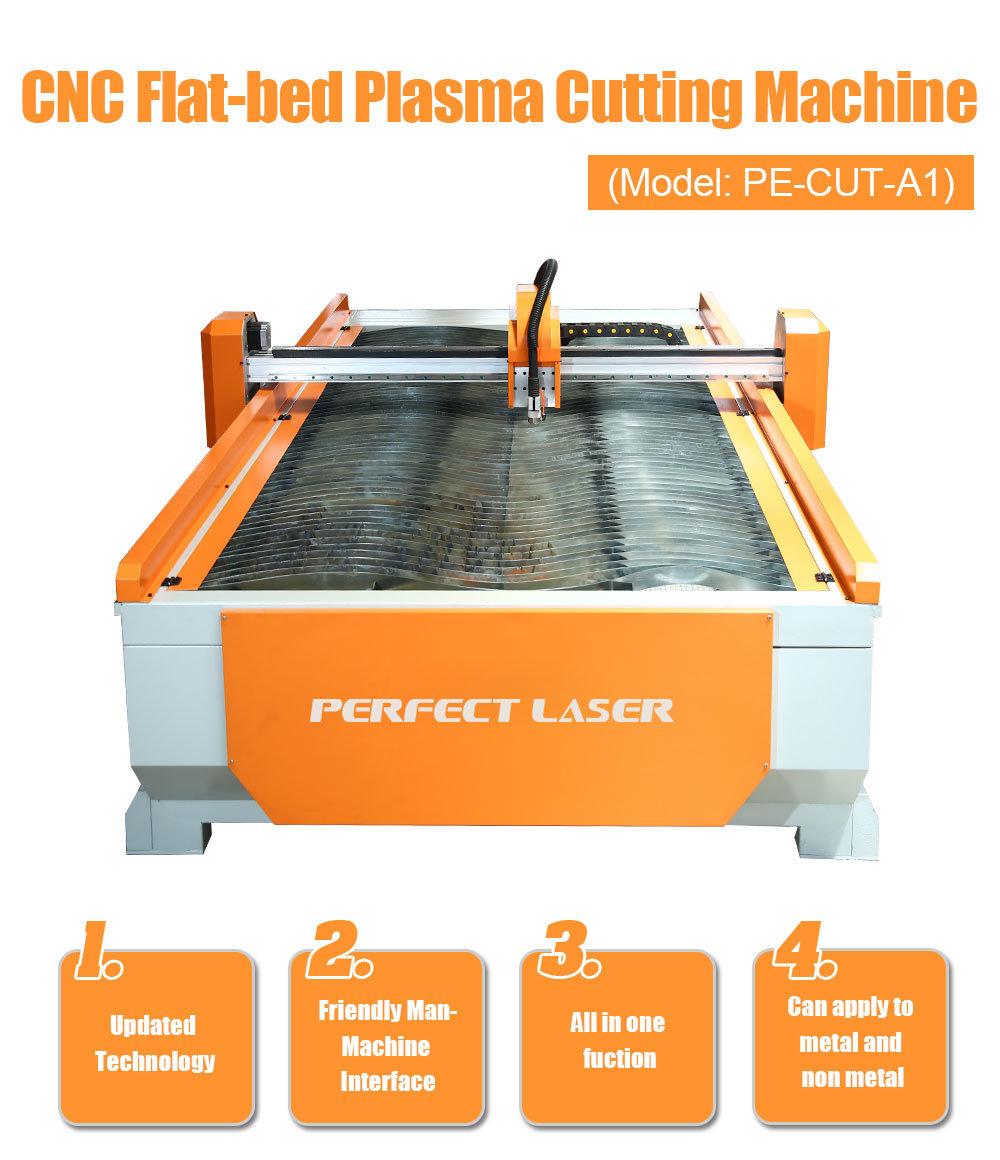

Factory High Precision Heavy Steel Plate Industrial CNC Plasma Cutting Machine
Model:PE-CUT-A1
Contact:Candy

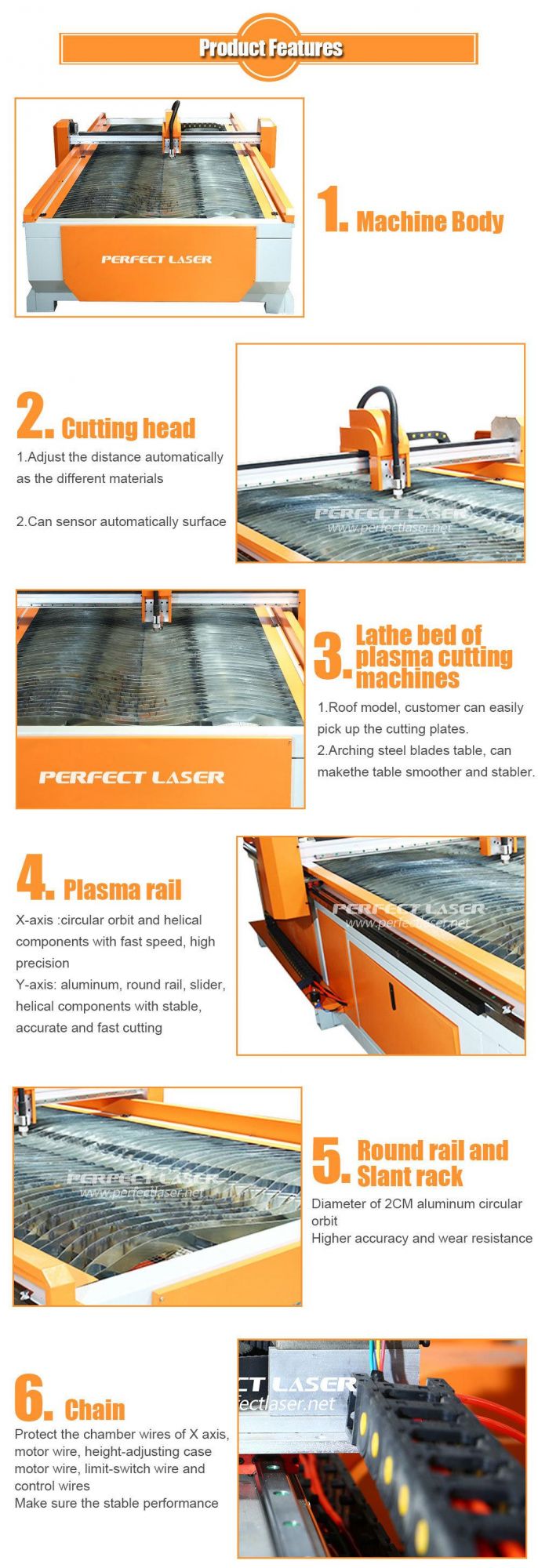

Features:
1. Machine design simple.
2. Bench-gantry structure, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation.
3. All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack
4. Planetary reduce drive system, its input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that it can accurately drive the structure of the implementation of the directives issued by the CNC.
5. Take the initiative to end beam: Vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.
6. All the equipment look to see, such as steel, screws, using black or chrome handle.
7. Spray machine to use more advanced types of paint, the color demand on users.

Need more information from Perfect Laser? Send enquiry to us Right Now!

lateral rail span	2000mm
effective incise width	1600mm
length of vertical rail	3000mm
effective incise length	2600mm
auto-inflame	1 set
NC cutting	1 set
controlled switch	some
lifting height of cutting	≤200mm
cutting speed	0-3500mm/min
roughness of cutting surface	Ra≤12.5μm
driving system	three-phase AC motor dual-driving
