• Model NO.：ZYYX Series
• Advantage：Use Widely
• Condition：New
• Place of Origin：Zhejiang, China (Mainland)
• Brand Name：Zhongyuan
• Certificate：SGS, BV, CE, ISO
• Power：22kw
• Suitable Raw Material：Color Steel Sheet or Galvanized Steel Sheet
• Control System：Mitsubishi PLC
• Forming Speed：About 12 M,Min
• Total Weight：About 15000kg
• Whole Line′s Dimension：About 26m*1.8m* 1.6m (Depend on Final Design)
• Operation Language：English or as Per Client`S Required
• Transport Package：1*40gp+1*20 Gp
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：Zhejiang, China
• HS Code：84552210
• Production Capacity：5sets,Month

Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.8-1.2Yield strength(mpa)235-345Roller material45# steel , coated with Chrome Shaft for rollers Solid shaft with 82mm,processed with cylindrical grinderForming speed(m/min)12Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementNemicon EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)11x2KWTotal power(kw)27.5KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
1. Manufacturing roll forming machine since 2003

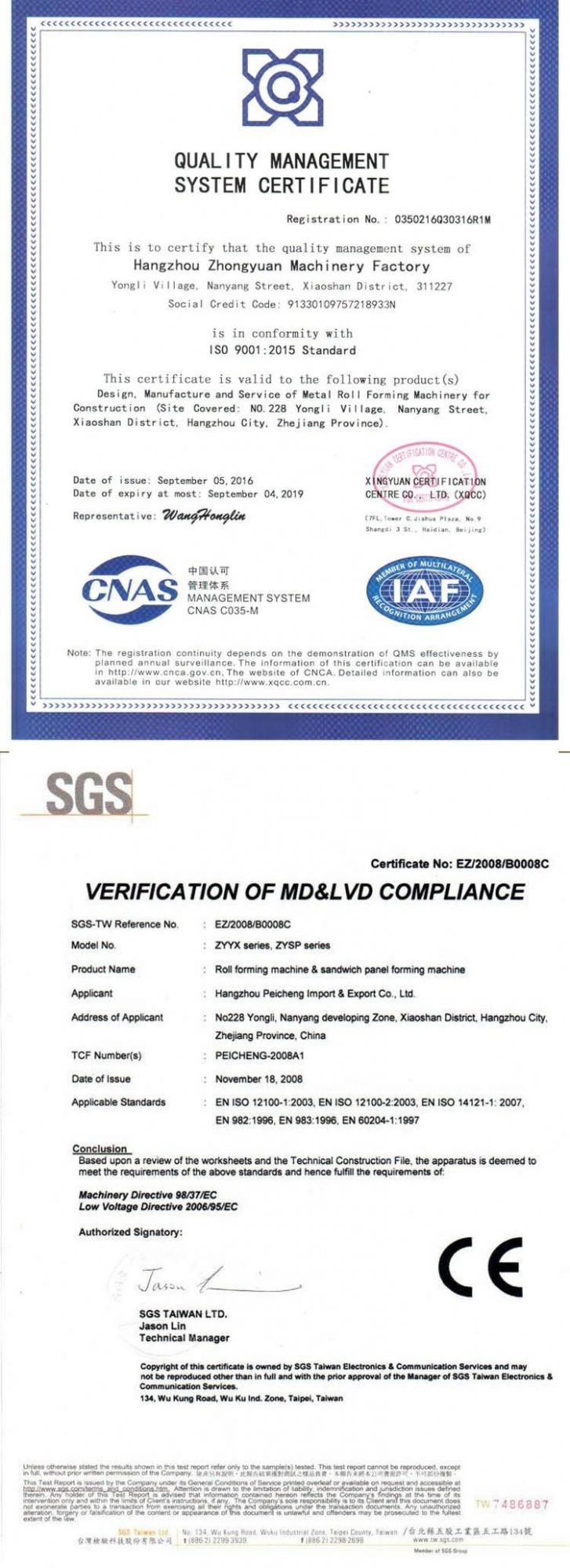

2. With ISO, SGS, BV and CE certificate

3.2 year quality warranty

4. Export to more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil,

Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria,

Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger,

Philippines, Indonesia, India, and others.

5. Technician can be sent to your factory to install the machine and train your workers


About us

1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops

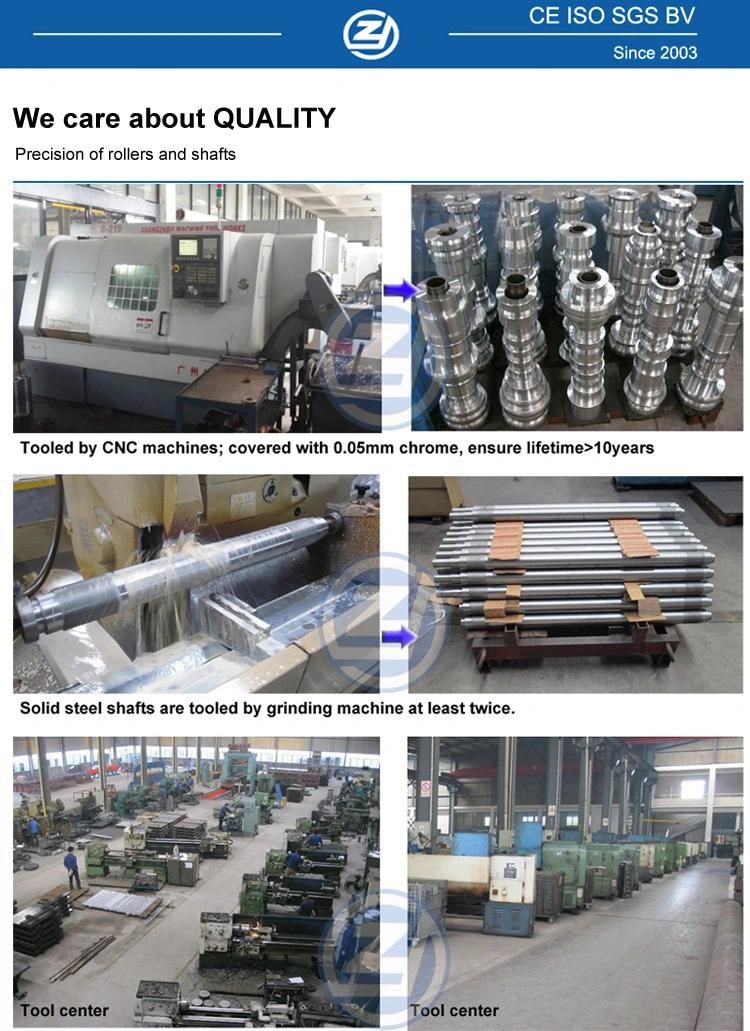

5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.






Please feel free to contact us for more information!
