2018 Roof Tile Machine Concrete Wall Tile Making Glazed Molding Rolling Forming Machine

Hangzhou Zhongyuan Machinery Factory
  • Type：Rolling Machine
  • Forging Forming Method：Cold Roll Forming
  • Power Source：Electric
  • Feature：Automation
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：ZYYX29-216-1080
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Machine Color：Made-to-Order
  • Machine Size：About 10*1.7*1.4m
  • Certifications：ISO, CE, Soncap
  • Control System：Mitsubishi PLC
  • Delivery：About 50days
  • Operation Language：English or Customize
  • Machine Weight：About 9ton
  • Roller Treatment：CNC, Hard Chrome Plated
  • Usage：Tile Roofing
  • Name：Roofing Panel Forming Machinery Roof Tile Roll for
  • Transport Package：1*40gp Container
  • Specification：CE SGS BV ISO
  • Trademark：zhongyuan
  • Origin：China
  • HS Code：84552210
  • Production Capacity：15 Sets,Month

Description

ItemSpecificationMaterialTypeColor steel sheetThickness(mm)0. 5 -0. 6Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 1500-2000mm/min or 4-5m/min. For optionStep distanceAdjustable according to requirement (>=250mm)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)11KWUncoiler's loading capacityMax. Capacity: 5000kgs

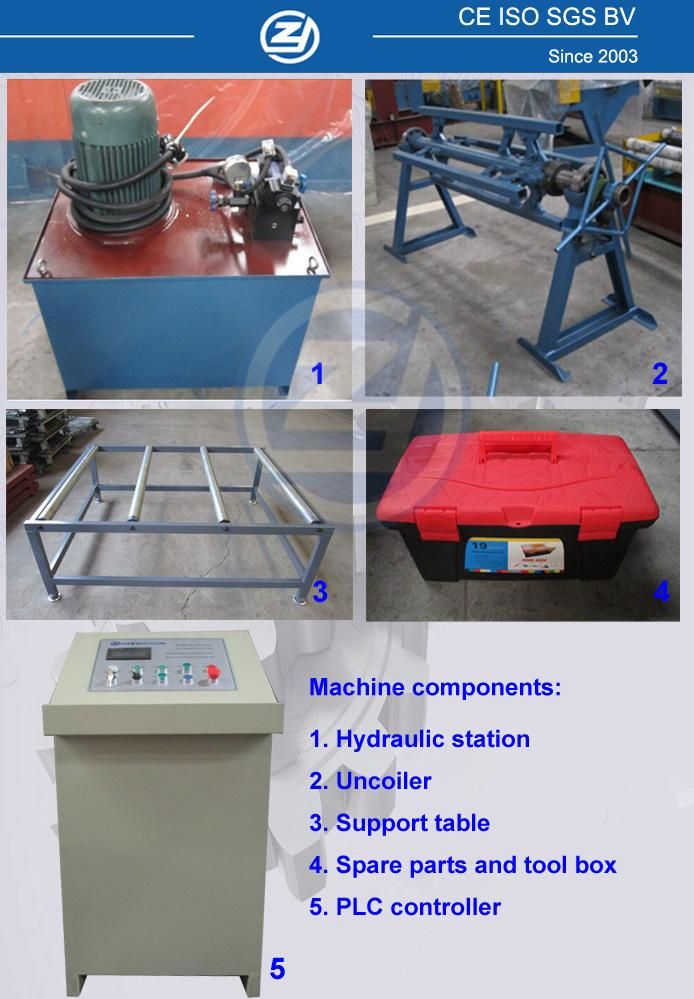

(can be increased to be 10T)Machine`s sizeAbout 10*1.7*1.4m  (Depend on final design)Machine weightAbout 10000kgsComponents of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set   Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table

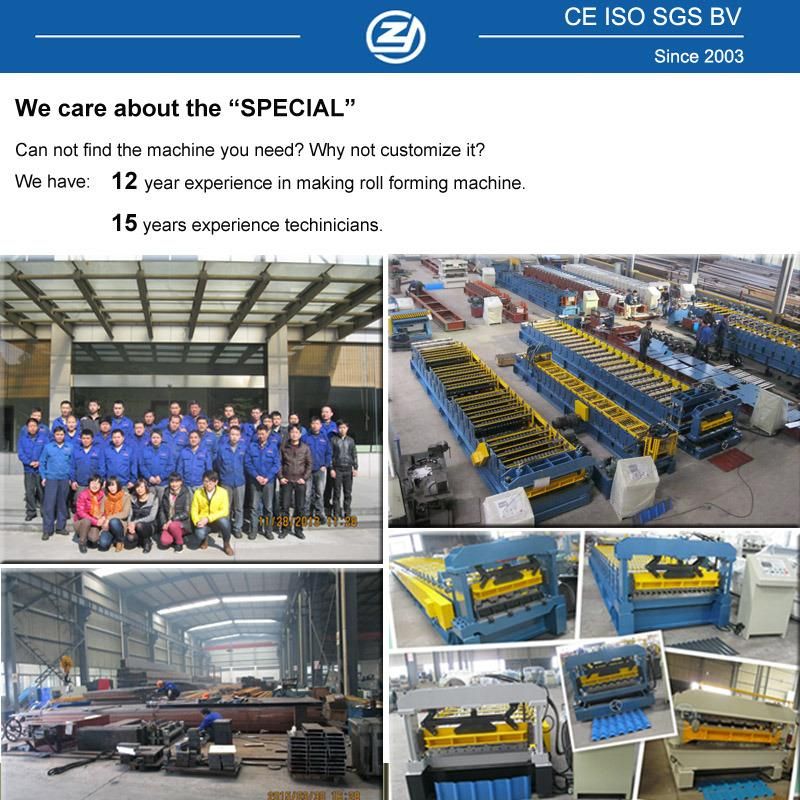

About us
1. Customize roll forming machines since 2003.
2. CE, ISO certificate by SGS.
3. Mitsubishi PLC controller and transducer from Japan
4.12moths warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 20 countries
