Vibration Powder Painting Gun for Quick Color Change
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service:12 Moths
- Warranty:12 Months
- Type:Powder Coating Machine
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
Base Info
- Model NO.:COLO-660-B
- Condition:New
- Name:Vibration Type Powder Painting Gun
- Power Range:220V,110V
- Frequency:50Hz
- Operational Method:Manual
- Packing Dimension:69*54*52mm
- Packing Weight:35kg
- Delivery:2-5days After Payment
- Application:Metal Surface Finishing
- Product:Vibration Type Powder Painting Gun
- Transport Package:Export Packaging
- Specification:CE ISO
- Trademark:COLO
- Origin:China
- HS Code:8424899990
- Production Capacity:100sets,Month
Description
Basic Info.
Model NO. COLO-660-B Condition New Name Vibration Type Powder Painting Gun Power Range 220V/110V Frequency 50Hz Operational Method Manual Packing Dimension 69*54*52mm Packing Weight 35kg Delivery 2-5days After Payment Application Metal Surface Finishing Product Vibration Type Powder Painting Gun Transport Package Export Packaging Specification CE ISO Trademark COLO Origin China HS Code 8424899990 Production Capacity 100sets/MonthProduct Description
Vibration Powder Painting Gun for Quick Color ChangePowder Coating Equipment/ Powder Spray gun
Description

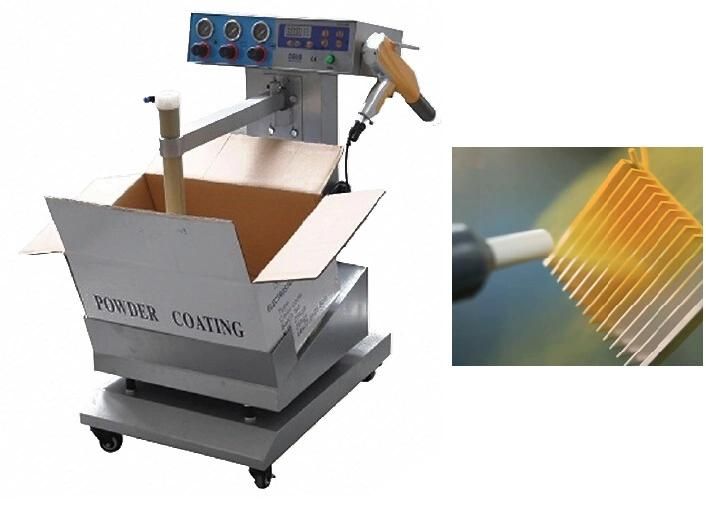

COLO-660-V Vibration Type Powder Painting Gun suitable for any shapes of work-piece, we export to over 100 countries, owns a high reputation, we supply complete set or spare parts .
This type has 4 preset intelligient function:
1) flat coating 2) corner coating 3)re-caoting 4) pluse coating
which has a wide range of accessories to coating
Vibration Type: you can directly put the powder box on the trolley, quick for color change.

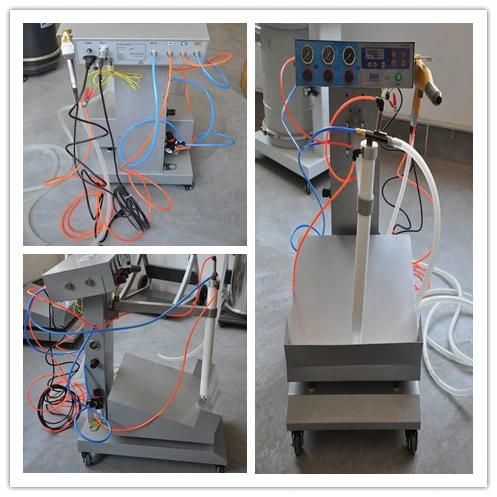

The connection of COLO-660-V Powder Painting Gun
Specifications of COLO-660-V Powder Painting Gun:
Power range 110V/220v
Frequency 60HZ/50HZ
Temperature range in use -10 ºC+50 ºC
Powder Gun
Gun weight: ......... 500G
Rated output voltage ...… 24VDC
Maximum output current ...… 180Ua(max)
Maximum output voltage...... 0-100KV ( adjustable)
Maximum powder injection :...… 600g/min
Polarity ......... negative (-)
Pneumatic technical spec
Maximum input-air pressure ........ 8kg/cm
Optimum input-air pressure..... 6kg/cm
Minimum input-air pressure ... 4kg/cm
Maximum water vapor content or compressed air ….. 1.4g/N m3
Maximum oil vapor content of compressed air ..... 0.1ppm
Maximum cimpressed-air consumption...… 13.2 m3/h
TPulse coating ........ ........ ........ 15~20 clock/sec

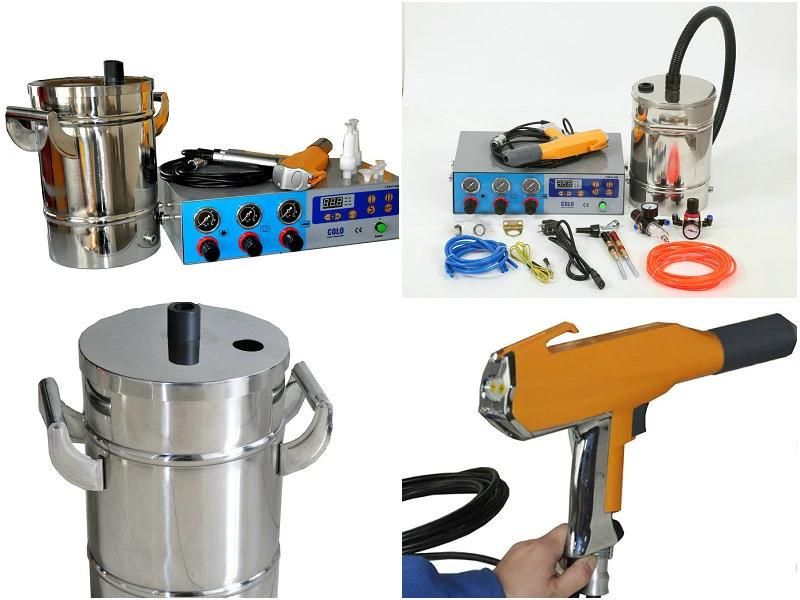

COLO-660 also have types for testing job or small production job,
COLO-660T-H Powder Painting Gun, Hopper size :D20*H40cm

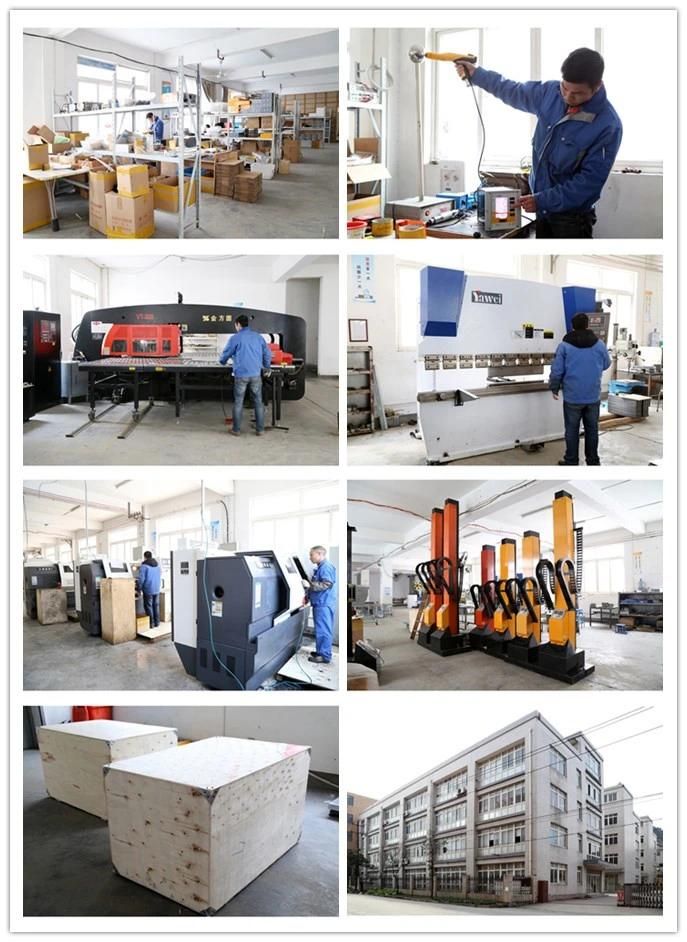

Company view
