• Model NO.：HY-GW 250KW
• Transport Package：Wood Packing
• Specification：350kg
• Trademark：HengYang
• Origin：China
• HS Code：851420009
• Production Capacity：100sets,Per Months

Basic Info.

Model NO. HY-GW 250KW Transport Package Wood Packing Specification 350kg Trademark HengYang Origin China HS Code 851420009 Production Capacity 100sets/Per Months

Product Description

Application of Melting furnace
Intermediate Frequency Electrical Melting Furnace, also called as Induction Smelting Furnace, which converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting. It is applicable to melting, heating or insulting of steel, copper, iron, aluminum, zinc, tin, nickel silver and other ferrous, nonferrous metal. It can also be used for other heating treatment before forging, sintering and tube-bending forming in the casting and melting industries.Special Function:Automatic constant temperature function:Values can be preset liquid temperature requirements, one-click startup and attain the goal of automatic constant temperature; Compared with the traditional artificial temperature control, automatic constant temperature function will save time and more sensitive and more accurate, easier to control liquid temperature and oxidation burning loss less, metal components uniform casting product quality is better;

 Automatic heating lining function:Heating lining is a relatively complicated and long process of temperature rise curve, to extend the service life of intermediate frequency furnace hearth, reduce production cost, the right build furnace lining technology is very important. The function of automatic lining of innovation, can according to the requirements of the different refractory lining temperature, to preset required by the different stages of heating lining temperature and time; PLC according to the preset time and temperature values, one-click start, automatic matching and stepless regulation of intermediate frequency power, the size of the control of heating speed, prevent lining cracks, and achieve the goal of automatic lining curve. Is to avoid the artificial misoperation and at the same time reduce the labor time and intensity of the workers.

Prevent wear furnace alarm function: prevent alarm system working principle is: wear furnace chamber of a stove or furnace use time to a certain degree, the wall will gradually thinning, the current will vary according to the furnace wall, after the current rate reaches the preset value will make alarm to remind in advance, then automatically cut off the power and predict wear furnace and achieve the goal of safe production in advance.

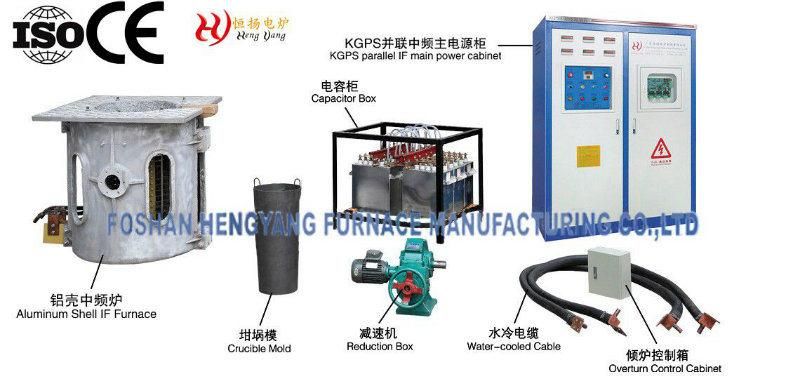

A set of the furnace:





Item	Product Name	Qty

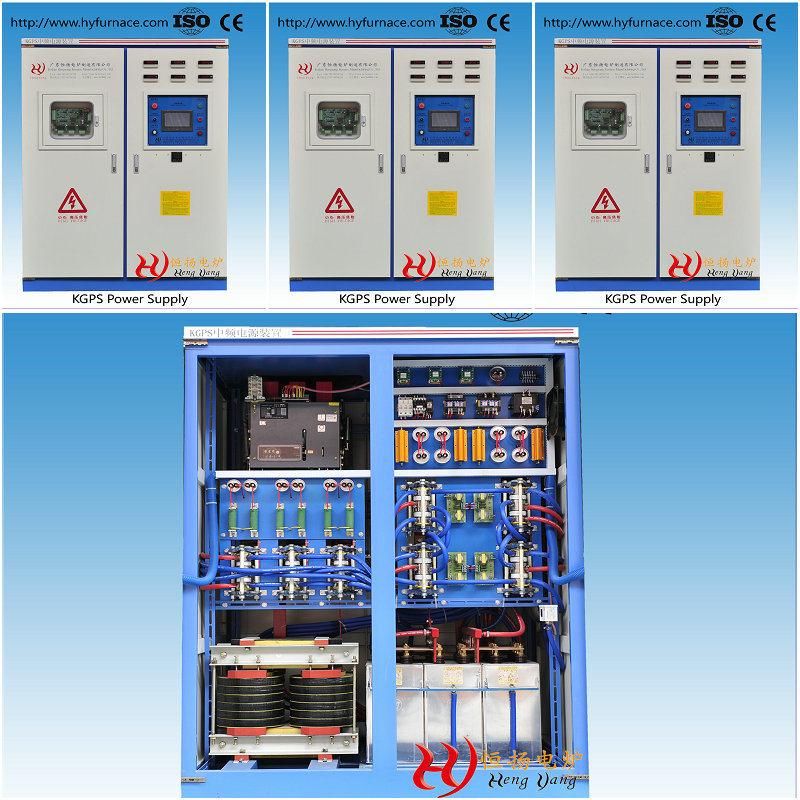

1	Power Supply Cabinet	1
2	Capacitor Cabinet	1

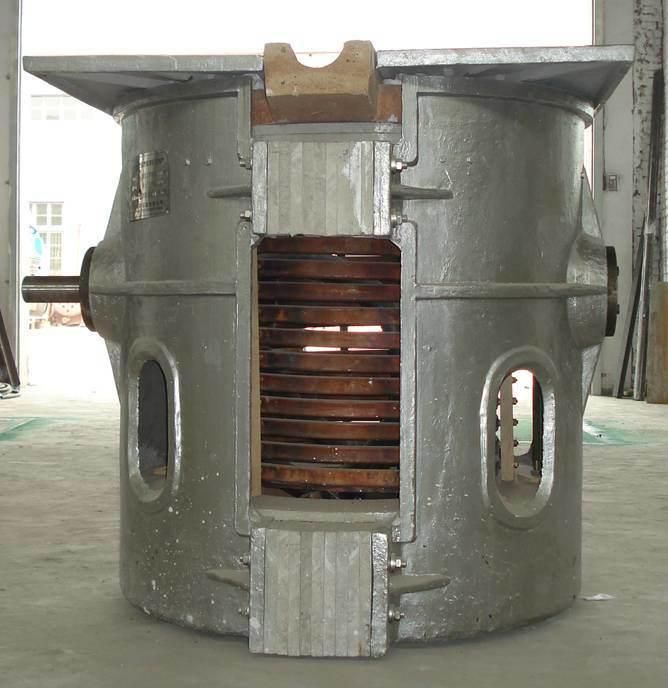

3	Furnace body	1
4	Reduction Gear	1
5	Crucible Mold	2
6	Water Cooling Cable	2
7	Titling Control Box	1
8	Water Cooling System(Optional)	1
9	Instruction manual	1

Advantage:

1. This kind of furnace has the advantages of high melting efficiency, good power saving effect, compact structure and strong overload capacity.

2. The surrounding of the furnace is low temperature, smoke less, the working environment is good .

3. Simple operation and reliable operation.

4. Fast temperature heating-up, furnace temperature easy to control, high production efficiency.



Why Choose us:
1,Low power consumption
Large current system made of pure copper as conductive medium, the whole circuit with less resistance. Electrode arm shaped as copper-clad box type, resistance and heat can be reduced efficiently. Reasonable arrange of all conductive systems to minimize the resistance of every circuit.

2,Safety & Stability
Full set of hydraulic driving system equipped with accumulator to ensure stability of facilities in the operation process. Whist, equipments can go on the motion when there any emergency accidents happen.

3,High Power Factor
Our power factory could reach over 98%, which could greatly reduce the capacitor box quantities. However we still equip enough capacitor box quantities, which mean your furnace is much much more efficient.

4.High flexibility & Maximum simplicity of operation
HMI used in electrical automation control, interface simulates the real form of furnace, which make the operation more convenient. Mixing feedstock, charging feedstock, melting, tapping all the commands can be implemented by computer.

5.More Durable
We get 6 thyristors on the left, 8 on the right, so even if one thyristor is damaged, our furnace still could be continued use. But many other factories only get only 4 on the right,the whole equipment cannot be used anymore when one thyristor is damaged.
