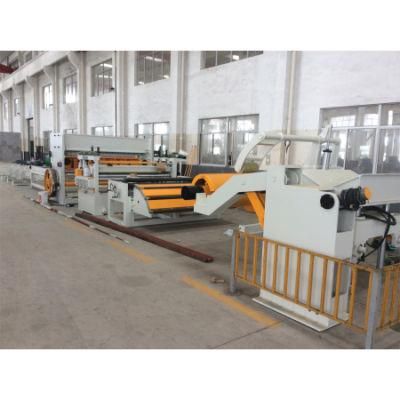

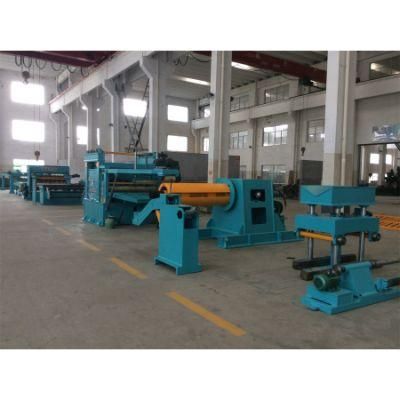

Automatic Steel Coil Cutting Shearing Line Cut to Length Line Machine
Taicang Global Machinery Co., Ltd.- Type：Shearing Machine
- Power Source：Electric
- Feature：Automation
- Certification：CE
- Warranty：12 Months
- Customized：Customized
Base Info
- Advantage：Use Widely
- Condition：New
- Material：Carbon Steel & Stainless Steel & Galvanized Steel
- Coil Thickness：0.3 - 20.0 mm
- Coil Width：300 - 2300mm
- Cutting length：300-12000 mm
- Cutting Accuracy：Min. 0.5mm
- Line Speed：Max 100m,Min
- Contro System：PLC
- Transport Package：Wood Box
- Trademark：TGMCO
- Origin：China
- HS Code：8462312000
- Production Capacity：50sets,Year
Description
δs≤230N/mm2, Cold-rolled Coil, Stainless Steel Coil, Galvanized CoilCoil Thickness 0.3~2.0mm 0.3~2.0mm 0.5~3.0mm Coil Width 300~800mm 800~1250mm 800~1250mm(1600mm) Coil Weight ≤10 tons ≤20 tons ≤20(25) tons Coil ID ф508mm ф508mm ф508mm(ф610mm) Coil OD ≤ф1800mm ≤ф1800mm ≤ф1800mm Cutting length 300~3000mm 300~4000mm 300~4000mm Cutting Accuracy ±0.5mm ±0.5mm ±0.5mm Line Speed 0~100m/min 0~100m/min 0~100m/min Control System PLC PLC PLC

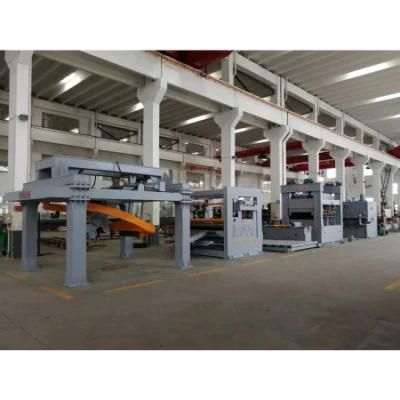

Heavy Duty Cut to length Machine Lineδs≤230N/mm2, Hot-rolled Coil, Stainless Steel CoilCoil Thickness 1.0~6.0mm 3.0~12.0mm 4.0~16.0mm 8.0~25.0mm Coil Width 800~1600mm 800~2000mm 1000~2100mm 1000~2300mm Coil Weight ≤25 tons ≤25 tons ≤30 tons ≤40 tons Coil ID ф508 & 610 & 760mm ф610~ф820mm ф610~ф820mm ф610~ф820mm Coil OD ≤ф2000mm ≤ф2000mm ≤ф2000mm ≤ф2200mm Cutting length 500~6000mm 500~12000mm 500~12000mm 500~12000mm Cutting Accuracy ±1.0mm ±1.5mm ±1.5mm ±2.0mm Line Speed 0~35m/min 0~25m/min 0~25m/min 0~20m/min Control System PLC PLC PLC PLC
High speed fly shear cut to length lineCopper coil, Aluminum coil, Stainless Coil, Galvanized CoilCoil thickness 0.25~2mm 0.5~2.5mm Coil width 300~1250mm(1600mm ) 300~1250mm(1600mm ) Coil weight ≤20T (25T) ≤20T (25T) Coil ID φ508mm φ508mm Coil OD ≤φ1800mm ≤φ1800mm Cutting Accuracy ≤±0.5mm ≤±0.5mm Line Speed 70~100m/min 70~100m/min Electrical Control System PLC PLC
Pickling coil Cut to length linePickling coilCoil thickness 1.0~6.0mm 1.0~6.0mm 1.0~6.0mm Coil width 500~1250mm 500~1600mm(1800mm) 500~2000mm Coil weight ≤20T ≤25T (28T) ≤30T Coil ID ф508 ф610 ф760mm ф508 ф610 ф760mm ф508 ф610 ф760mm Coil OD ≤ф2000mm ≤ф2000mm ≤ф2000mm Length range 750~6000mm 750~6000mm 750~6000mm Cutting accuracy ±0.5mm ±0.5mm ±0.5mm Line speed 0~60m/min 0~60m/min 0~60m/min Electrical control PLC PLC PLC
Certificate
Main Customers

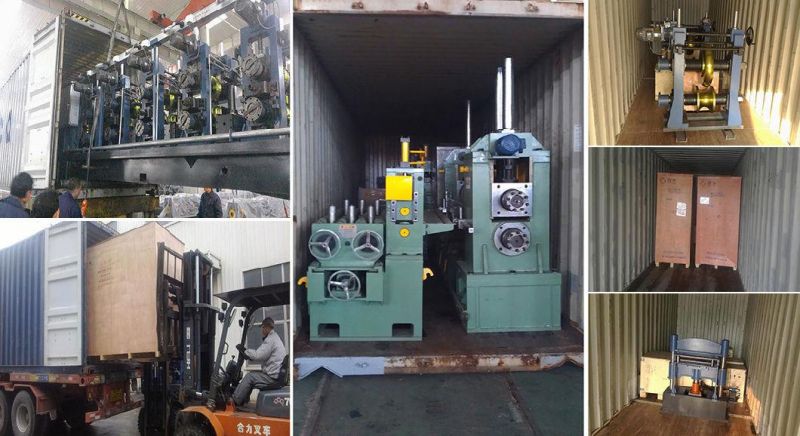

Packing & Delivery
Not only the Good Machine, but also the Most Attentive Service
Integrity Solution & Turnkey Project
Creat the Value of Steel
