Professional High Speed Stainless Steel Thin Sheet Cut to Length Line

Taicang Global Machinery Co., Ltd.
  • Type:Shearing Machine
  • Power Source:Electric
  • Feature:Automation
  • Certification:CE
  • Warranty:12 Months
  • Customized:Customized

Base Info

  • Advantage:Use Widely
  • Condition:New
  • Material:Carbon Steel & Stainless Steel & Galvanized Steel
  • Coil Thickness:0.3 - 20.0 mm
  • Coil Width:300 - 2300mm
  • Cutting length:300-12000 mm
  • Cutting Accuracy:Min. 0.5mm
  • Line Speed:Max 100m,Min
  • Contro System:PLC
  • Transport Package:Wood Box
  • Trademark:TGMCO
  • Origin:China
  • HS Code:8462312000
  • Production Capacity:50sets,Year

Description

δs≤230N/mm2, Cold-rolled Coil, Stainless Steel Coil, Galvanized CoilCoil Thickness0.3~2.0mm0.3~2.0mm0.5~3.0mmCoil Width300~800mm800~1250mm800~1250mm(1600mm)Coil Weight≤10 tons≤20 tons≤20(25) tonsCoil IDф508mmф508mmф508mm(ф610mm)Coil OD≤ф1800mm≤ф1800mm≤ф1800mmCutting length 300~3000mm300~4000mm300~4000mmCutting Accuracy±0.5mm±0.5mm±0.5mmLine Speed0~100m/min0~100m/min0~100m/minControl SystemPLC PLC PLC
Heavy Duty Cut to length Machine Lineδs≤230N/mm2, Hot-rolled Coil, Stainless Steel CoilCoil Thickness1.0~6.0mm3.0~12.0mm4.0~16.0mm8.0~25.0mmCoil Width800~1600mm800~2000mm1000~2100mm1000~2300mmCoil Weight≤25 tons≤25 tons≤30 tons≤40 tonsCoil IDф508 & 610 & 760mmф610~ф820mmф610~ф820mmф610~ф820mmCoil OD≤ф2000mm≤ф2000mm≤ф2000mm≤ф2200mmCutting length500~6000mm500~12000mm500~12000mm500~12000mmCutting Accuracy±1.0mm±1.5mm±1.5mm±2.0mmLine Speed0~35m/min0~25m/min0~25m/min0~20m/minControl SystemPLC PLCPLC PLC
High speed fly shear cut to length lineCopper coil,  Aluminum coil, Stainless Coil, Galvanized Coil  Coil thickness 0.25~2mm 0.5~2.5mm Coil width 300~1250mm(1600mm )300~1250mm(1600mm )Coil weight ≤20T (25T)≤20T (25T)Coil ID φ508mm φ508mm Coil OD ≤φ1800mm ≤φ1800mm Cutting Accuracy ≤±0.5mm ≤±0.5mm Line Speed 70~100m/min 70~100m/min Electrical Control System PLC PLC
Pickling coil Cut to length linePickling coilCoil thickness 1.0~6.0mm 1.0~6.0mm 1.0~6.0mm Coil width 500~1250mm 500~1600mm(1800mm) 500~2000mm Coil weight ≤20T ≤25T (28T) ≤30T Coil ID ф508 ф610 ф760mmф508 ф610 ф760mmф508 ф610 ф760mmCoil OD ≤ф2000mm ≤ф2000mm ≤ф2000mm Length range 750~6000mm 750~6000mm 750~6000mm Cutting accuracy ±0.5mm ±0.5mm ±0.5mm Line speed 0~60m/min 0~60m/min 0~60m/min Electrical control PLC PLC  PLC
Certificate

Professional High Speed Stainless Steel Thin Sheet Cut to Length Line

Main Customers

Professional High Speed Stainless Steel Thin Sheet Cut to Length Line

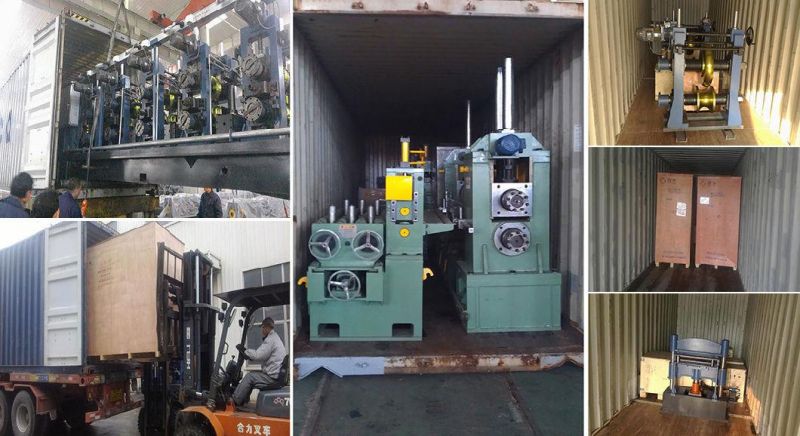

Packing & Delivery

Professional High Speed Stainless Steel Thin Sheet Cut to Length Line


Not only the Good Machine, but also the Most Attentive Service

Integrity Solution & Turnkey Project
Creat the Value of Steel
