• Machine Name：Rainwater Gutter Roll Forming Machine
• Roll Station：15 Stations
• Forming Speed：0-15m,Min
• Transport Package：Sea Packing
• Specification：CE SGS
• Trademark：SAIBO
• Origin：China
• HS Code：84552210
• Production Capacity：300set,Year

Basic Info.

Model NO. YX115 Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Machine Name Rainwater Gutter Roll Forming Machine Roll Station 15 Stations Forming Speed 0-15m/Min Transport Package Sea Packing Specification CE SGS Trademark SAIBO Origin China HS Code 84552210 Production Capacity 300set/Year

Product Description

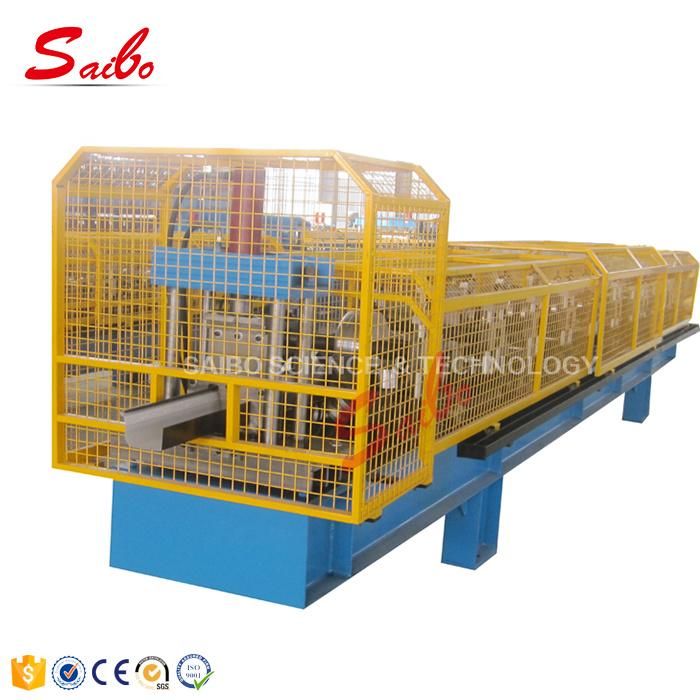

Rainwater Gutter Roll Forming Machine
Machine Detailed Parameters:

1	Machine structure	Guide pillar structure
2	Total power	Motor power-5.5kw Hydraulic power-4kw
3	Roller stations	About 15 stations (according the final design)
4	Productivity	0-15m/min
5	Drive system	By 1.0 inch single chain
6	Diameter of shaft	¢65mm solid shaft
7	Voltage	380V 50Hz 3phases (Customized)
8	Container need	40GP container

Details of each composition
A: Roll forming main machine
1: Coil width: Base on customer profile
2: Working speed: 0m-20m/min (not contain cutting)
3: Roll station: 15 stations
4: Material of roller: 45#forge steel, polished and coated with chrome
5: Material of main shaft: 45forge steel diameter roller: 56mm
6: Main power: 5.5kw
7: Forming thickness: 0.4-0.7mm color steel
8: Transmission: By Chains
9: Size of machine: About 8500 x 1200 x 1200 (L x W x H)
10: Weight: About 5500Kgs
11: Color: Blue and yellow (also can change depend on customer request)
12: Machine adopts new station to make machine stronger.
13: Cutting:
(1) Machine adopts hydraulic cutting
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm

B. De-coiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 450mm_550mm
Mode of expand &fight: Inner expand &fight by manual
Way of feeding: Manual

C: Control panel Panasonic
(1)Voltage, Frequency, Phase: 220 V, 60 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)

D: Hydraulic station
1: Hydraulic station power: 4kw
2: Hydraulic pressure: 12Mpa

E: Manual out table
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide*0.6-1mhigh
(3)One out table with two support rollers
