Two-Die Hydraulic Rebar Rolling Machine Threading Tool with Chaser
Henan Yugong Machinery Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：CCC, ISO9001, CE
- Warranty：24 Months
Base Info
- Model NO.：YG-40
- Customized：Non-Customized
- Advantage：Easy to Maintenance
- Condition：New
- Model：Yg-40
- Rebar Diameter：14-40mm
- Motor Power：5.5kw
- Voltage：380V,50Hz Three Phase
- Spindle Speed：40-62r,Min
- Working Effiency：3-4cm,Min
- Max Thread Length：250mm
- Weight：450kg
- Dimension：1500*600*1000mm
- Transport Package：Wooden Case Export Package
- Specification：1500*600*1000mm
- Trademark：Yugong
- Origin：China, Henan
- HS Code：8479819000
- Production Capacity：5000,Month
Description
Product Description
This machine is mainly used in the construction of ribbed steel bar straight screw thread processing, is to achieve reinforced straight thread connection process of key equipment.

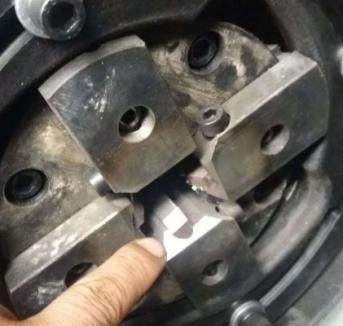

It consists of frame, clamp, guide, slide, reducer, stripping rib rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit structure, cooling system, electrical control box and control system.
Work procedure of rebar thread rolling machine
1.Strip rebar rib first.
2. Roll parallel thread on rebar end.
3.Splice two pieces of threaded rebar with coupler.
