• Warranty：12 Months
• Customized：Customized
• Condition：New
• Product Name：Steel Bar Straightening and Cutting Machine
• Application：Rebar Wire Straightening and Cutting
• Model：Ygt 5-16
• Diameter Adjustment Range：5-16mm
• Wire Pulling Speed：50m,Min
• Traction Motor Power：2.2kw-6
• Modulation Motor Power：15kw-4
• Cut off Motor Power：5.5kw-4
• Cutting Error：800-9000mm
• Straightening Degree：±2 mm,M
• Transport Package：Standard Wooden Case
• Specification：Electric
• Trademark：YUGONG
• Origin：China
• HS Code：8461500090
• Production Capacity：1000 Sets , Month

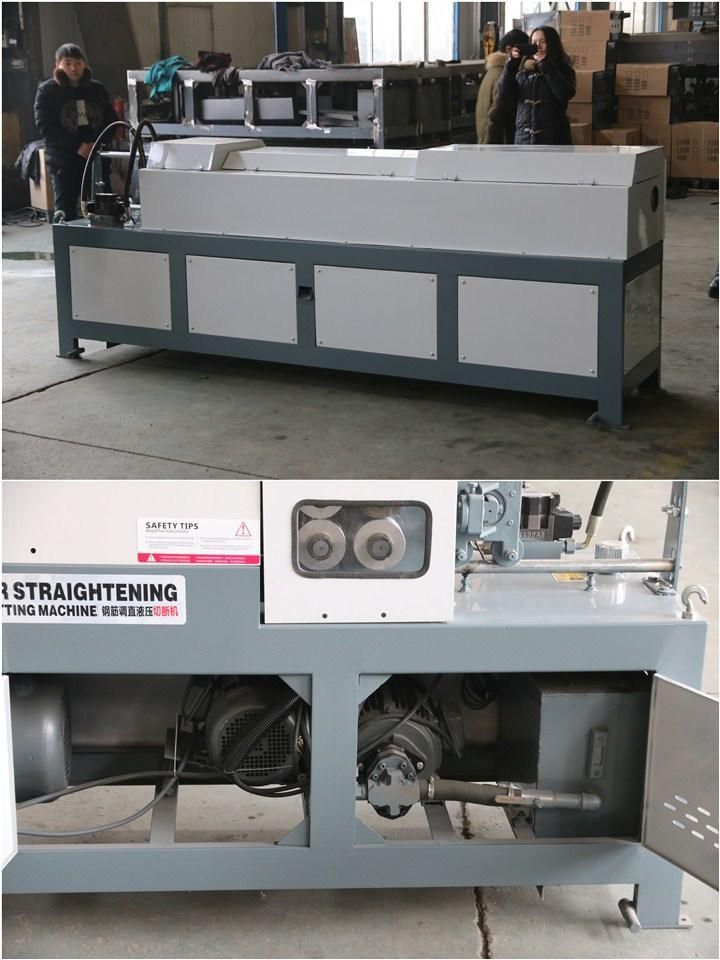

Steel Bar Straightening and Cutting Machine

Model

YGT 4-14

YGT 5-16

Diameter adjustment range

 4-14mm ( III grade steel)

5-16mm ( III grade steel)

Wire pulling speed

50m/min

50m/min

Voltage

380V three-phase 50Hz

380V three-phase 50Hz

Traction motor power

2.2kw-6

2.2kw-6

Modulation motor power

7.5kw-4

15kw-4

Cut off motor power

5.5kw

5.5kw-4

Cutting error

±0.5-1cm

±0.5-1cm

Wire Length

800-9000mm (can be lengthened)

800-9000mm (can be lengthened)

Straightening degree

±2 mm/m

±2 mm/m

Weight

1500kg

1500kg

Size

2800*650*1200mm

3300*650*1300mm

• Microcomputer control, automatic straightening, automatic length, automatically cut off;
• "Fool" type of operation, who can use it that understand the "123" ;

• Multiple batches simultaneously enter the length and number of computer memory;
• Hydraulic cut, more accurate, more quiet;

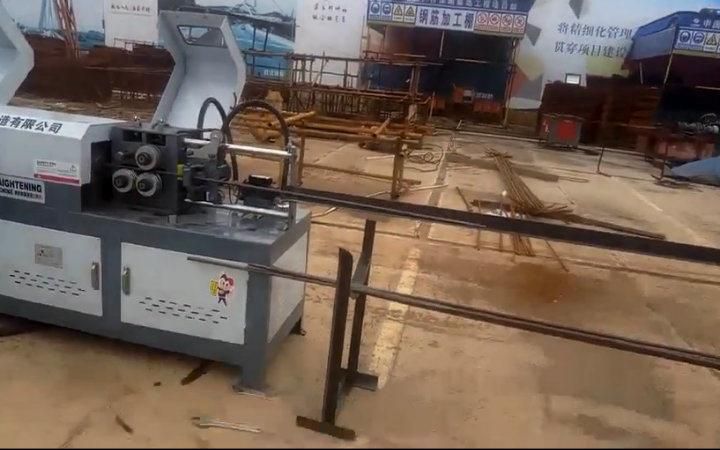

Working

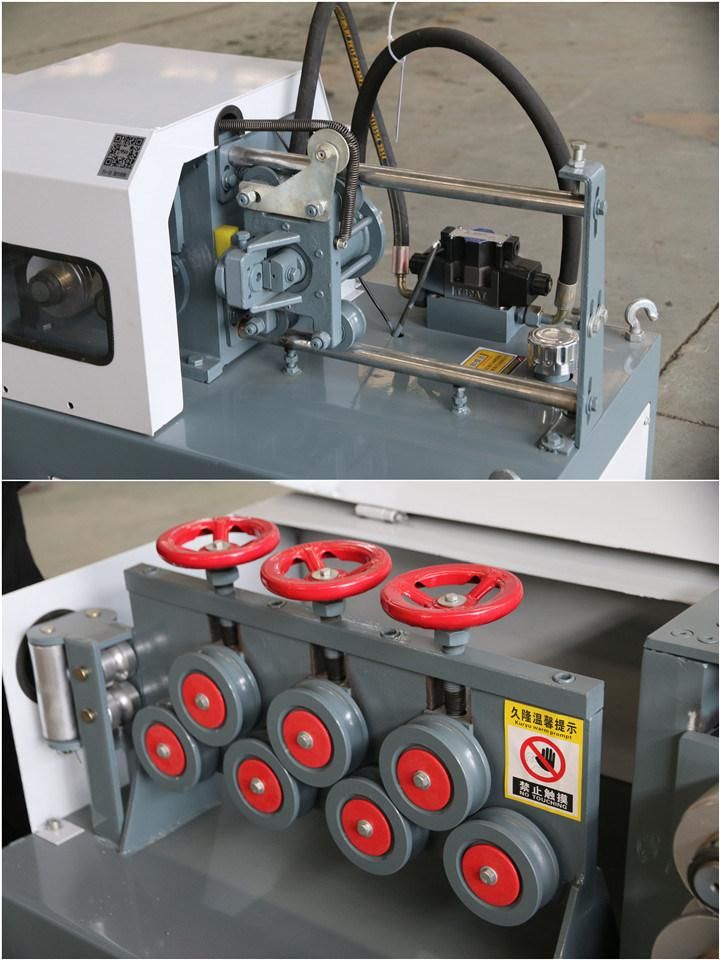

Steel Straightening Cutter machine is one of the steel processing machines, for straightening and cutting off the diameter of 4-14mm for the steel, and rust. By the straightening cylinder, holding the body, cut off institutions, reinforced fixed frame, rack and drive components.
