• Model NO.：as the drawing
• Application Range：Pqf and Fqm Mill
• Diameter Size：100mm-500mm
• Length：Max 20m

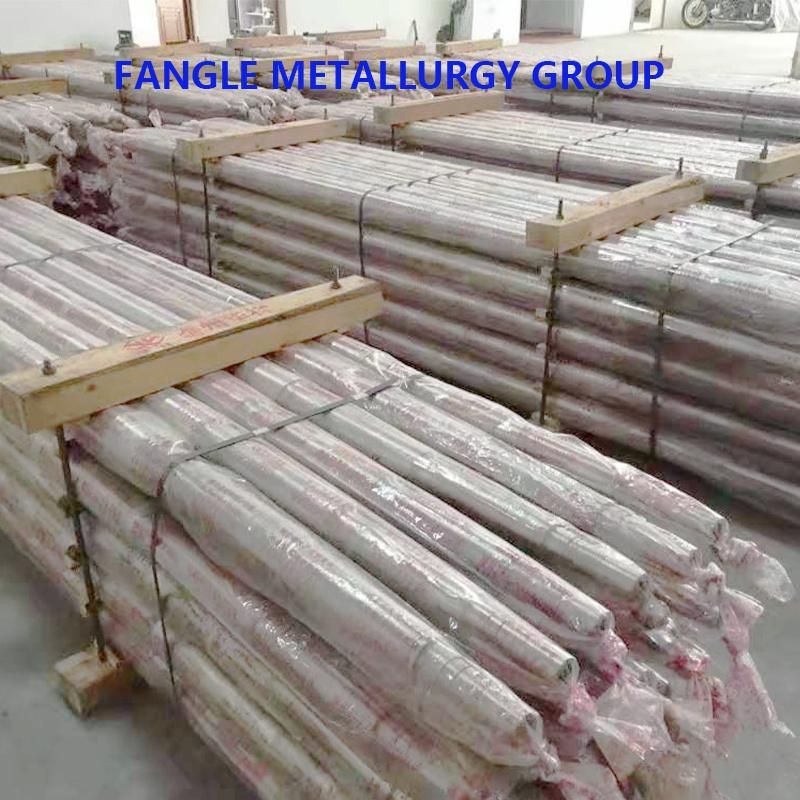

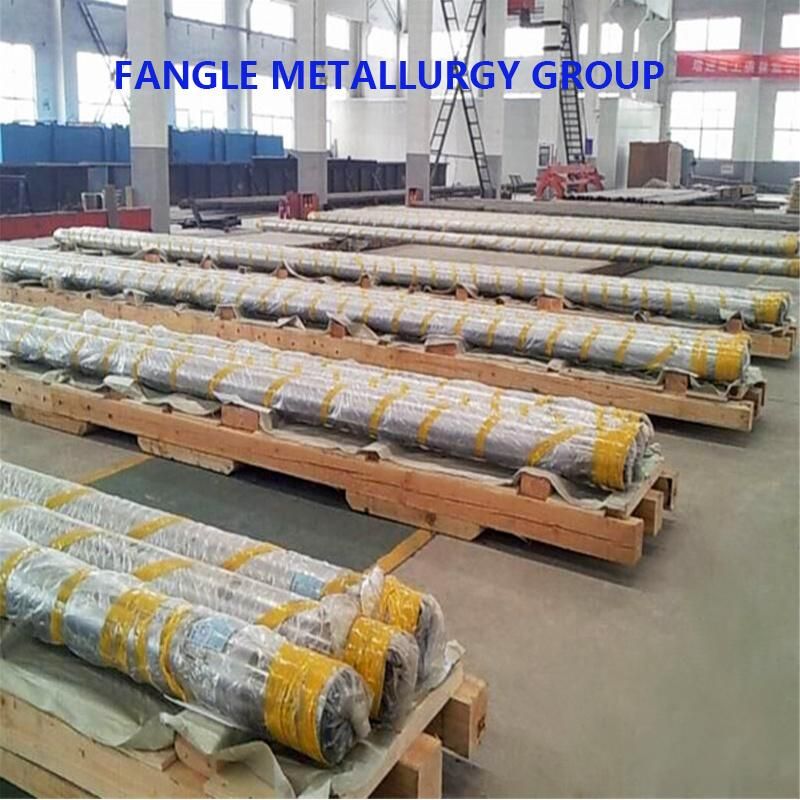

• Transport Package：Woodern Case
• Specification：Export package
• Trademark：FANGLE
• Origin：China
• Production Capacity：100000tons,Year

Basic Info.

Model NO. as the drawing Application Range Pqf and Fqm Mill Diameter Size 100mm-500mm Length Max 20m Transport Package Woodern Case Specification Export package Trademark FANGLE Origin China Production Capacity 100000tons/Year

Product Description

PQF and FQM Three-roll Retained Mandrel is very important rolling tool.

PQF and FQM Three-roll Retained Mandrel quality directly affects the quality of the finished steel tube.

Our advantages:

We can produce the PQF&FQM mandrel max length 20m. The diameter is ranging from 100mm to 500mm.

Retained mandrel is composed of three parts: mandrel working body,mandrel extension and mandrel tail.The material of PQF&FQM mandrel working body is H13, and the material of non-working section is structural alloy steel.

The smelting process:

• electric arc furnace + refining outside the furnace + ingot casting

• electric arc furnace + electroslag furnace + ingot casting

Hot forming process: Forging

Heat treatment process:

The retained mandrel adopts oil or water-based liquid (mist) quenching and tempering, which can make the mandrel fully quenched, So that there is no need for heating treatment before resuing. In order to improve the hardness of the mandrel, the mandrel must be polished and plated with hard chromium.After chrome-plated, the retained mandrel should be dehydrogenated to improve the bonding strength between the hard chrome-plated layer and the mandrel, increase the wear resistance of the mandrel, and ensure the service life of the mandrel.
