• Model NO.：as the drawing
• Application Range：Aluminum Foils,Plates and Stainless Foils&Plates

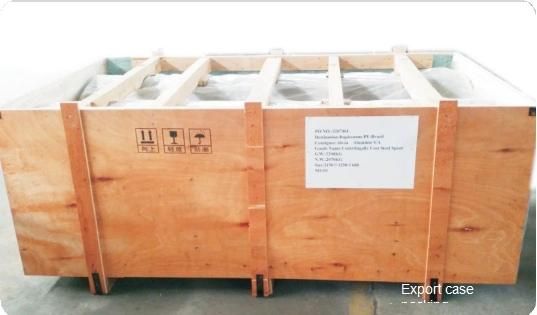

• Transport Package：Seaworthy Package
• Specification：as the requirement
• Trademark：FANGLE
• Origin：China
• Production Capacity：50000tons,Year

Basic Info.

Model NO. as the drawing Application Range Aluminum Foils,Plates and Stainless Foils&Plates Transport Package Seaworthy Package Specification as the requirement Trademark FANGLE Origin China Production Capacity 50000tons/Year

Product Description

Centrifugal Casting Bush For Aluminum Cold Rolling Mill
The cold rolling mill steel bush is mainly used for aluminum foils,plates and stainless foils&plates coiling .we can supply the steel bush size from Ф110 to Ф1000mm ,the most suitable material will be chosen according to the customers requirement.
Common size: Φ565*Φ505*1500,Φ565*Φ505*1550,Φ665*Φ605*1700,Φ665*Φ605*1850 Φ665*Φ605*2350,Φ670*Φ605*2500,Φ670*Φ605*2880 etc
Common material :ZG310-570,ZG35CrMo,ZG35CrNiMo,ZG25Cr2Mo1V,KCP-12 etc.

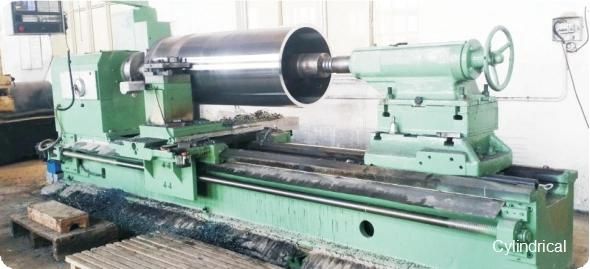

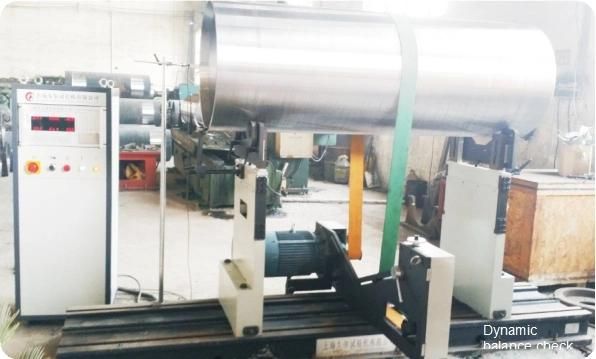

Quality assurance: starting from the centrifugal casting blank, each piece is numbered, and the number runs through every process of parts processing. Every process has a strict machining precision process card, with detailed field records and on-site quality inspectors to track the whole process.Production inspection is carried out in accordance with the first part inspection, self-inspection and special inspection, so as to ensure the processing accuracy and traceability of each steel sleeve product.
Performance:

Materail	strength of extension(MPa)	Yield strength(MPa)	ductility(%)	hardness(HB)
ZG310-570	570	310	≥ 17	217-255
35CrMo	≥985	≥835	≥ 12	≥229
35CrMoV	≥1080	≥930	≥ 10	≥240
35NiCrMo	≥830	≥660	≥ 8	≥240
KCP-12	≥1080	≥835	≥ 8	240-260

Chemical material:

Material	C	Si	Mn	Cr	Ni	Mo	V	S,P	illustration
ZG310 -570	0.50	0.60	0.90					<=0.040	Low plasticity and toughness, poor high temperature resistance, Low purchasing cost
35CrMo	0.32 - 0.40	0.17 - 0.37	0.40 - 0.70	0.80 - 1.1		0.15 - 0.25		≤0.035	High strength, toughness and hardenability, General high temperature resistance Low purchasing cost
35CrMoV	0.30 - 0.38	0.17 - 0.37	0.40 - 0.70	1.00 - 1.30		0.20 - 0.30	0.10 - 0.20	≤0.035	Slightly better than 35CrMo, Can meet the general use requirements, Economical purchasing cost
35NiCrMo	0.30 - 0.37	0.60 - 0.90	0.70 - 1.00	0.40 - 0.90	0.60 - 0.90	0.40 - 0.50		<=0.035	High strength and toughness , good high temperature resistance, high purchasing cost

Certificate:



Clients visiting:
