Electrical Cable Wire Single Twister Twisting Bunching Stranding Winding Machine Machinery
Kunshan Fuchuan Electrical and Mechanical Co., Ltd.- Applied Wire：PVC,PE Core Wire or Copper Wire
- Color：Sky Blue
- Bundling Mode：Central Bundling or Side Bundling
- Replace Pitch Mode：Computer Pitch or Gear Pitch
- Take up Tension：Pneumatic Tension Automatic Regulate
- Direction of Lay：Optional for Left or Right
Base Info
- Model NO.：FC-1250
- Twist Type：Cantilever Type
- Single Twist：Cable Laying Machine
- Transport Package：Simply Packed
- Specification：ISO9001
- Trademark：FC
- Origin：Jiangsu Kunshan
- HS Code：8479811000
- Production Capacity：30set,One Month
Description
Basic Info.
Model NO. FC-1250 Twist Type Cantilever Type Single Twist Cable Laying Machine Transport Package Simply Packed Specification ISO9001 Trademark FC Origin Jiangsu Kunshan HS Code 8479811000 Production Capacity 30set/One MonthProduct Description

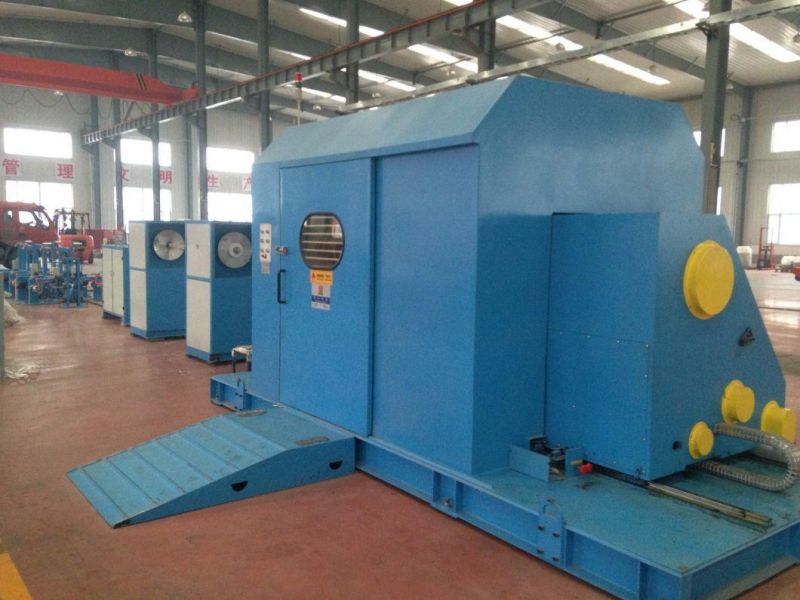

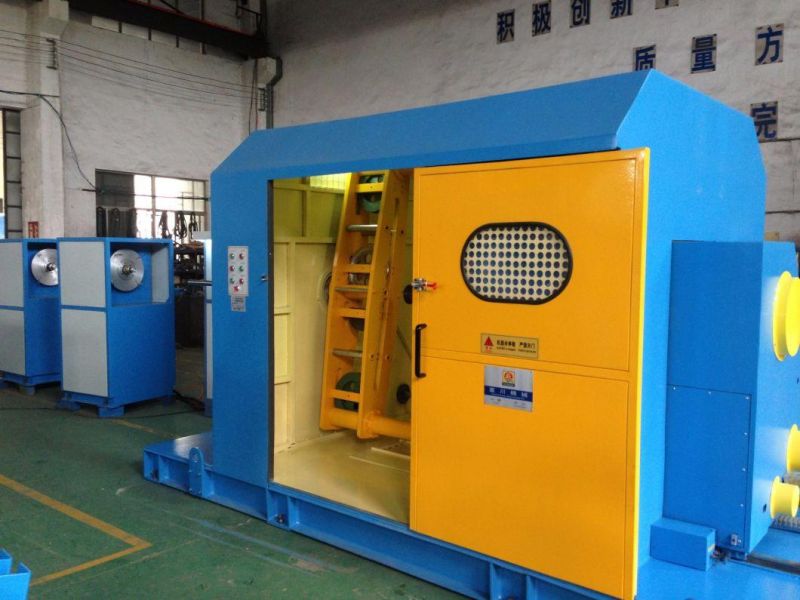

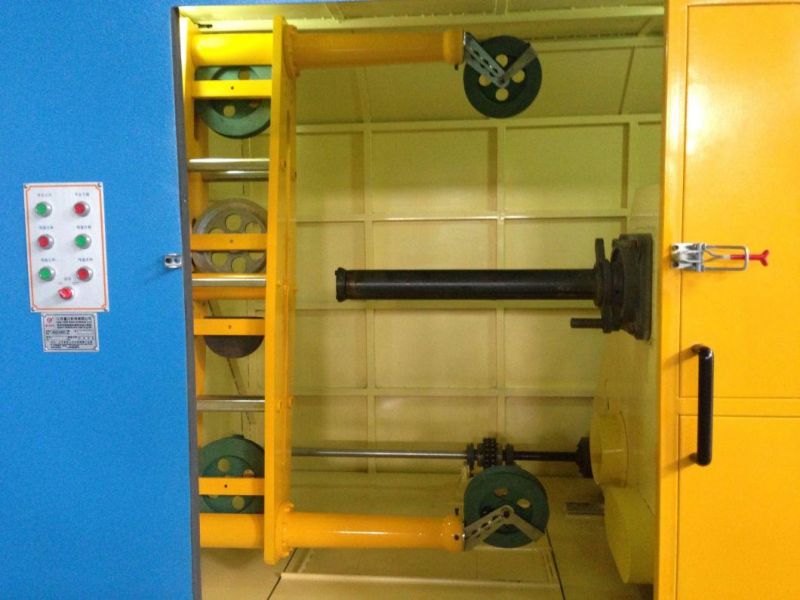

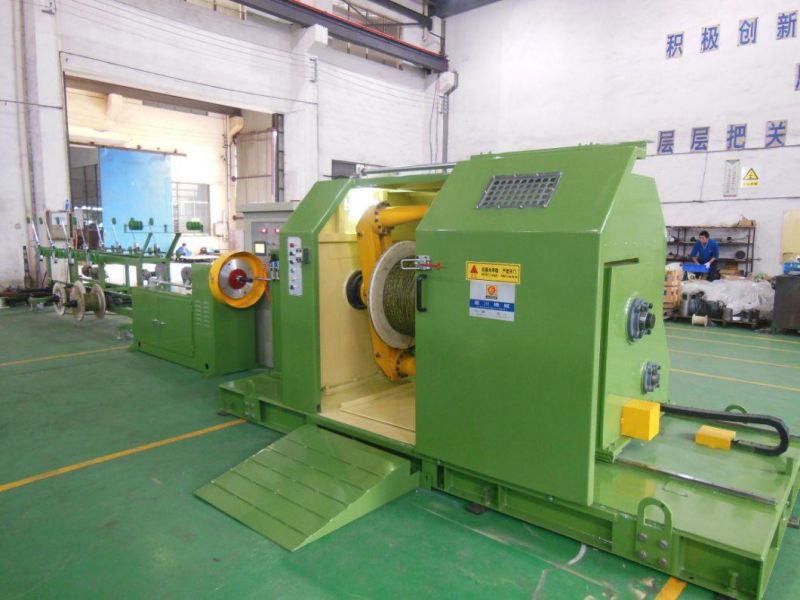

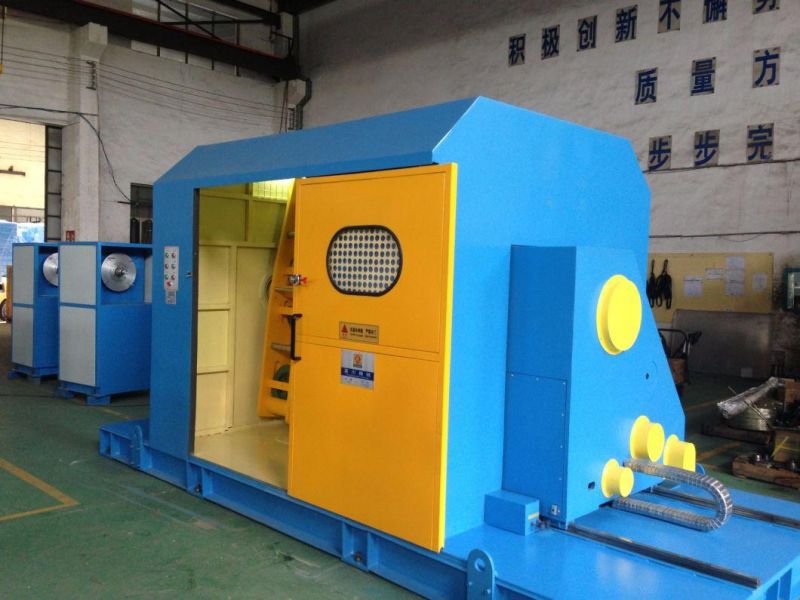

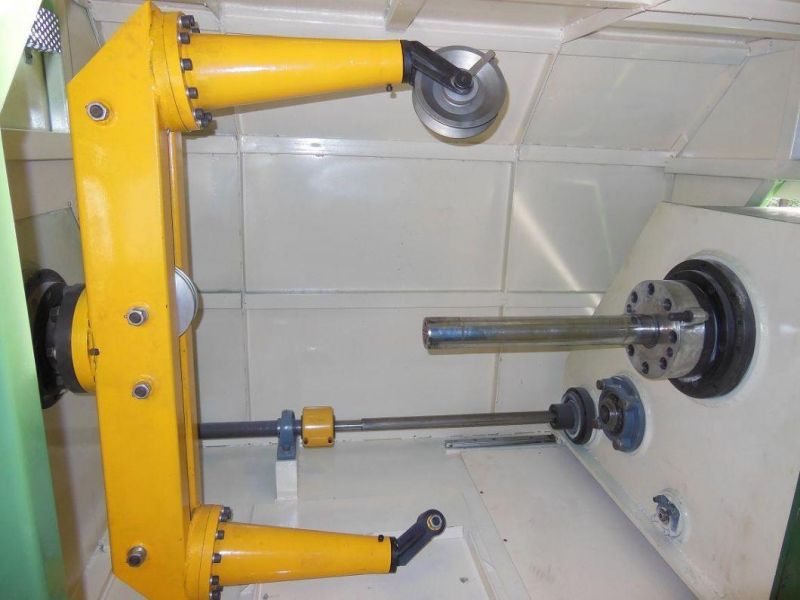

It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil tapping.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable-laying)machine and electrical control cabinet.Equipment models:FC-1250
Applicable dia: dia1.0-6.0mm
Max twist outer:dia 30mm
Pitch:30-400
Direction of lay: optional for right or left
Take up bobbin size: dia1250mm
Rotating speed:500 rpm
Traverse type:according to bobbin ratate speed and reciprocating motion to stepless adjust
Take up tension: pneumatic tension automatic regulate
Brake mode:pneumatic booster brake
Bundling type:central bundling or side bundling
Replace pitch mode:computer pitch
