• Model NO.：QC11Y-12×3200
• Voltage：380V 50Hz 3phase
• Throat Depth：150mm
• Power Type：Hydraulic
• Color：Customize
• Weight：11000kg
• Components：Simens , Schneider, Rexroth, Atos
• Travel of Back-Gauge：20-800mm
• Max Cutting Plate Width：3200mm
• Max Cutting Plate Thickness：12mm Mild Steel, 6 Stainless Steel
• Main Motor：18.5kw
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：L*W*H=3950*1920*2400
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84623990
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. QC11Y-12×3200 Voltage 380V 50Hz 3phase Throat Depth 150mm Power Type Hydraulic Color Customize Weight 11000kg Components Simens / Schneider/ Rexroth/ Atos Travel of Back-Gauge 20-800mm Max Cutting Plate Width 3200mm Max Cutting Plate Thickness 12mm Mild Steel/ 6 Stainless Steel Main Motor 18.5kw Transport Package Base Framed by Channel Steel and Plastic Bag Specification L*W*H=3950*1920*2400 Trademark ZDMT Origin China(Mainland) HS Code 84623990 Production Capacity 100 Sets Per Month

Product Description

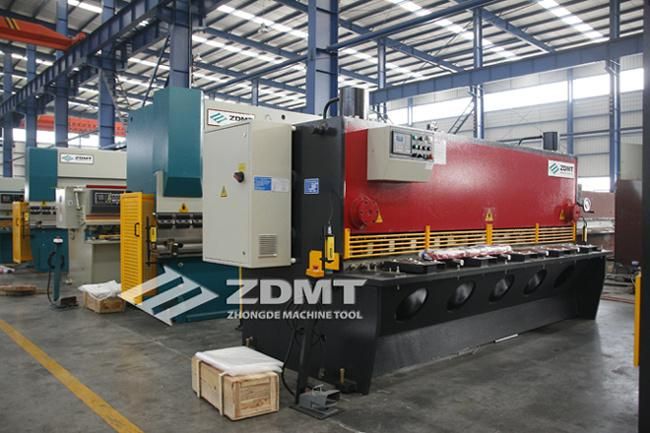

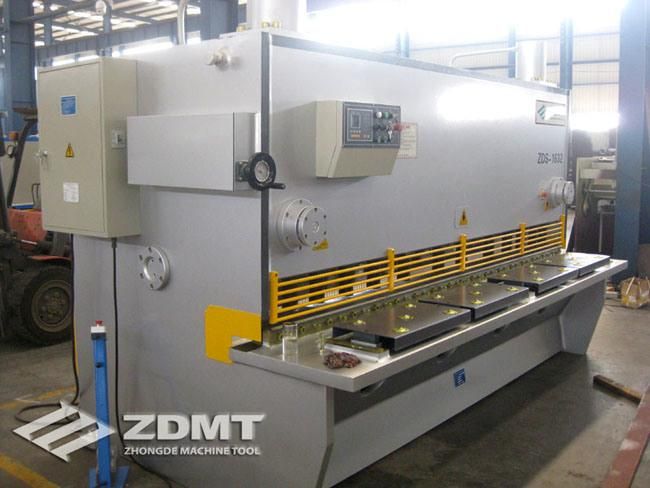

QC11Y-12×3200 Hydaulic Guillotine shear machine with NC E21S control back-gauge and cuttine time



Steel welded structure with stress-free
Three guide trolleys enable accurate movement and fine shearing results.
Hydraulically driven blade holder, retracted by cylinder accumulator.
Adjustable rake gauge travel can be manually adjusted and knob fined, digital desplayed.

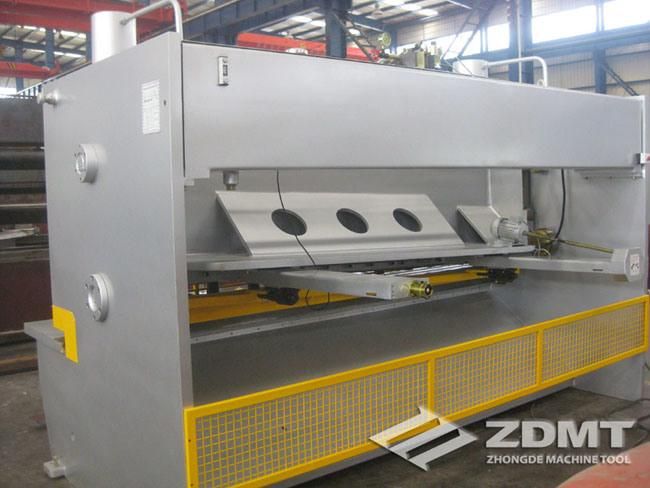

Swing away back guage fuction for cutting longer sheets.
Indicator -based adjustment of blades clearance is easy, convenient and swift.
4 cutting edges blade
Full or shorter stroke of blade holer is adjustable

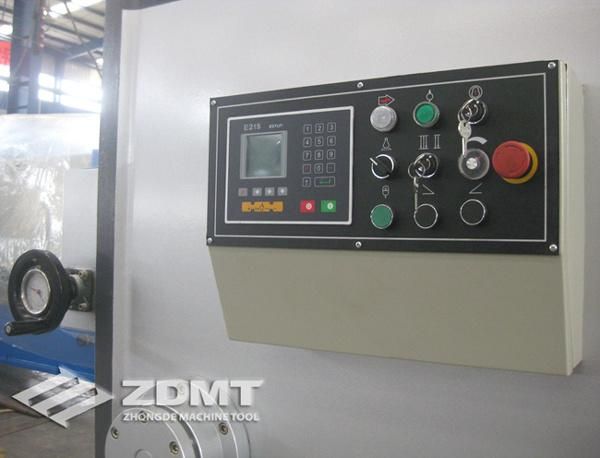

E21S Main featurers :

Back-gauge control
Controlfor general AC motors; frequency inverter
Intelligent positioning
Double programmable digtial output
Stock counter
Program memory up to 40 programs; Up to 25 steps per program
One side positioning
Retract function
One key backup/restore of parameters
mm/inch
English and Chinese language

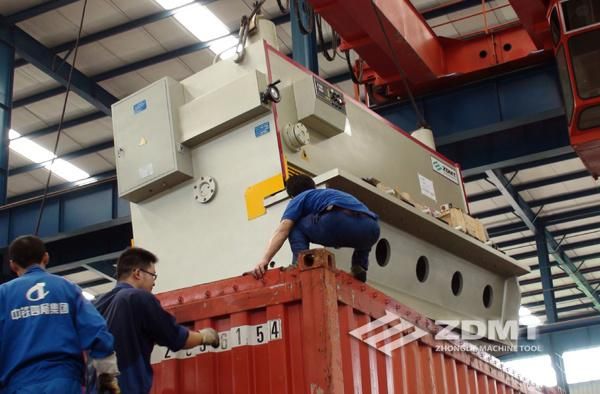

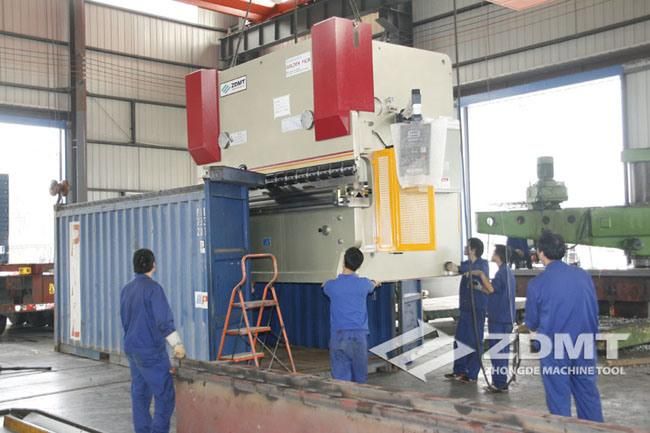

Shipment:
