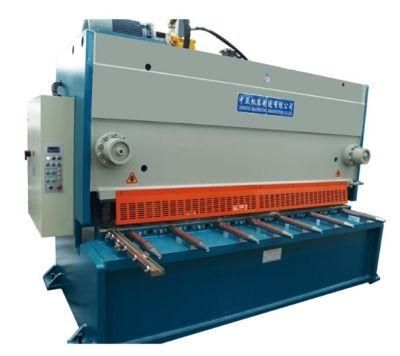

• Model NO.：ZYS(RAS)-12,2500
• Cutting Thickness：12mm
• Cutting Length：2500mm
• Transport Package：Plastic Cover
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：China
• HS Code：8462319000
• Production Capacity：3000 Sets,Year

No.Parts NameBrandBrand Location1Main motorSiemensGermany2Backgauge motorJiahuangHangzhou China3ElectricsSchneiderFrance4Oil CylinderYuhuaMaanshan China5Seal ringNokJapan6Hydraulic valveFirstUSA7PumpVickersUSA8ControllerDAC360Delem Holland9BladesJinshanShanghai China10Pipe connectorEMBGermany11FootswitchKarconSouth Korea12Ball screwHiwinTaiwan13Controller with moveable armYES14Front and back protection fenceYES15Backgauge with ball screwYES16Backgauge with liner guideYES17Backgauge travel600MM18Shadow line lightYES19Emergency buttonYES20Blades gap and cutting angle controlleredYES
ZYS(RAS)Series Technical Parameters:TypeCutting
Thickness
(mm)Cutting Length(mm)Angle Range
(°)Backgauge Stroke (mm)Main Power(kw)Weight
(Ton)Dimension
(mm)6×2500625001-37507.54.23140*1740*20406×3200632001-37507.55.73750*1770*21506×4000640001-3750118.54830*1840*21506×5000650001-375011115830*1840*21506×6000660001-375011146480*2100*23008×2500825001-3750114.43040*1700*17008×3200832001-37501163860*1700*17008×4000840001-3750118.94640*1700*17008×5000850001-37501111.55400*2400*20008×6000860001-375011166480*2100*23508×8000880001-37501129.58580*2130*235010×25001025001-3750116.53400*1800*170010×32001032001-37501583860*1830*190010×40001040001-3100015124650*2100*200010×50001050001-3100015165750*2100*200010×60001060001-3100015246500*2100*230012×25001225001-31000158.53285*1830*239012×32001232001-3100018.5103855*1830*239012×40001240001-3100018.513.54850*1830*239012×60001260001-3100018.5266850*1930*265012×80001280001-3100018.5468950*2130*285012×90001290001-3100018.5659980*2300*295012×1000012100001-3100018.58511050*2500*310016×25001625001-3100022133440*1940*283016×32001632001-3100022154010*1940*283016×40001640001-310002216.55010*1980*283016×50001650001-3.5100022255900*2600*283016×60001660001-3.5100022316900*2700*283016×80001680001-3.5100022758900*2900*243020×25002025001-3.5100037173440*1980*283020×32002032001-3.5100037204010*1900*283020×40002040001-3.5100037224850*2600*290020×60002060001-3.5100037506700*3000*300030×25002525001-3.5100037293440*1900*283030×32002532001-3.5100037384200*1900*300040×25003025001-3.5100037383440*2000*3000

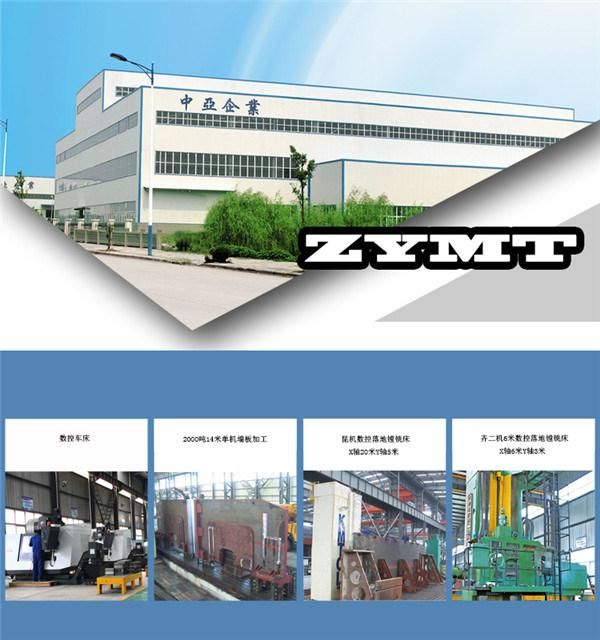

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press

Our Services
1.Shearing blades and accessories-Customized to your specifications
In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases - even for complex technical ones.
2.Service package
Basic:we offer you rapid troubleshooting through telephone support and costs for on-site missions are reduced.
Special:Engineers available to service machinery overseas for the necessary maintenance.
Partner:Our located dealers or customers who sell or use our machines are fully behind you,they are our friendly partner and supply good advice to you.
3.Technical Service(After-sale service

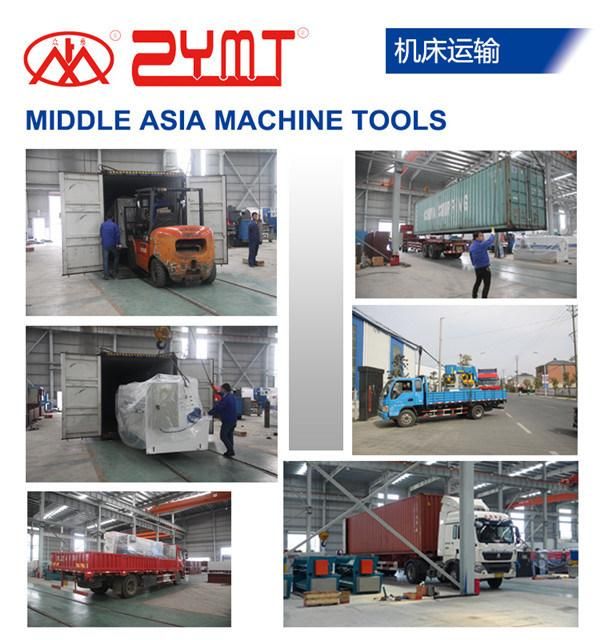

Packaging & Shipping
(1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied. (2)before loading,stable package,professional and skilled loader reduce damage of product during transport.(3)after loading,our professional documentary staff will follow the order till the product departs from port.

If you have any demand, please contact me directly, or browse through our web site: leolivia.en.made-in-china.com
