• Model NO.：PX500C
• HS Code：84798110
• Production Capacity：500sets

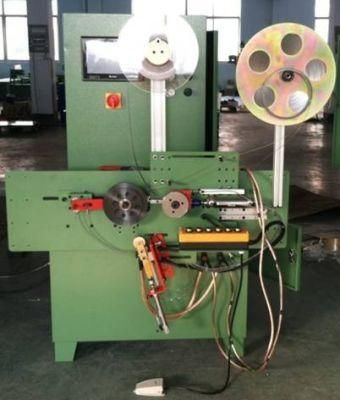

STYLEPX500C-VPX500C-VFAutomatic winding machine for SWG  (newest design)Working modeBoth Manual and Automatic modeSS strip pre-formed SS strip in pancake both pre-formed SS strip in pancake or 20-25kgs spool of flat strip Producing abilityStandard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra chargeSWG thickness 4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding for option)Automatic functionPLC size controlling,
Automatic spot weldingPLC size controlling,
Automatic spot welding
with SS strip forming roller, Maximum gasket OD500mmMinimum gasket ID25mmGasket OD tolerance±0.2mmSpindle speed0--300rpmTotal power8kwSpindle motor power1.5kwWelder power6kwPower supply voltage380V or 220V for option, 3 phasesAIR COMPRESSER0.6-0.8 MPAPLCxinjieProduction rate20--30s  /pc      (for ANSI 6" 150LB)Machine measurement1400*1050*1650mmMachine net weight400kg
