• Model NO.：SD30
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Color：Green
• Transport Package：Wooden Box
• Specification：SGS
• Trademark：Rainbow
• Origin：China
• Production Capacity：200sets

Basic Info.

Model NO. SD30 Warranty 12 Months Customized Customized Advantage Use Widely Condition New Color Green Transport Package Wooden Box Specification SGS Trademark Rainbow Origin China Production Capacity 200sets

Product Description

Machine Instruction

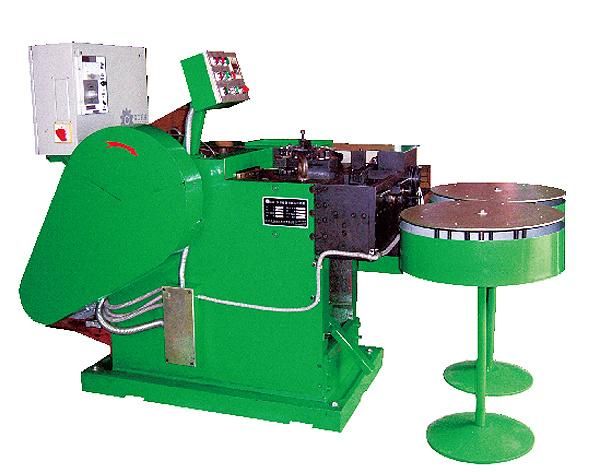

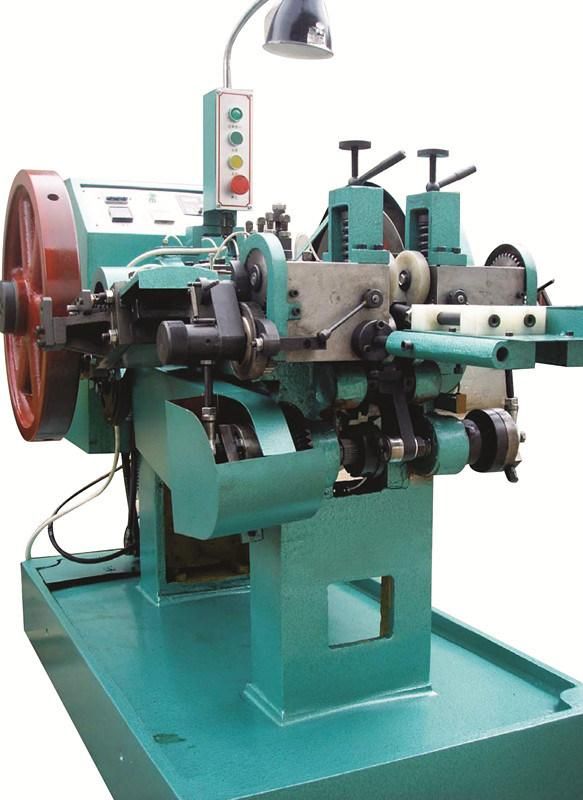

Bimetal Composite Contact Cold Header can make six different metals be compounded together under cold state to produce composite contacts according to the technique requirements. Its working process includes the following steps: Sending two different kinds of metal wire into the machine firstly, transmitting them into the mould after being cut off. Then by two times upsetting process, the two kinds of metal become the composite contacts. Finally, the products retreat from the mould and enter into the finished product box.

Technical specification

Model HSD-30P bi-metal rivet & button making machine
Dia. Of rivet head: 2.5-6mm
Dia. Of rivet shank: 1.2-3mm
Dia. Of Button: 2.5-6mm
Thickness of button: 0.5-2.2
Thickness of silver layer: 0.18-0.35
Stroke of slider: 40mm
Motor power: 2.3kw
Output: 90- 130PCS/min
Package size: 1300X1400X1300mm
Weight: 1100kgs

Model HSD-50 bi-metal rivet machine
Dia. of rivet head:          6-10mm
Dia. of rivet shank:         3-5mm
Thickness of silver layer:    0.25-0.70
Stroke of slider:              40mm
Motor power:                3kw
Output:                 80- 110pcs/min
Package size:        1300X1400X1300mm
Weight:                  1400kgs
