• Model NO.：According to Castomer′s Drawiags
• Material：Alloy
• Application：Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery
• Designing：Available
• OEM：Available
• Surface Processes：Multi-Option
• Transport Package：Carton and Vacuum
• Specification：According to Customer′s Drawings
• Trademark：According to Customer′s Brand
• Origin：Wuhan, China
• HS Code：8515900000
• Production Capacity：5000 Pieces , Year

Basic Info.

Model NO. According to Castomer′s Drawiags Material Alloy Application Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery Designing Available OEM Available Surface Processes Multi-Option Transport Package Carton and Vacuum Specification According to Customer′s Drawings Trademark According to Customer′s Brand Origin Wuhan, China HS Code 8515900000 Production Capacity 5000 Pieces / Year

Product Description

Material:
2A12-T4

Product Use:

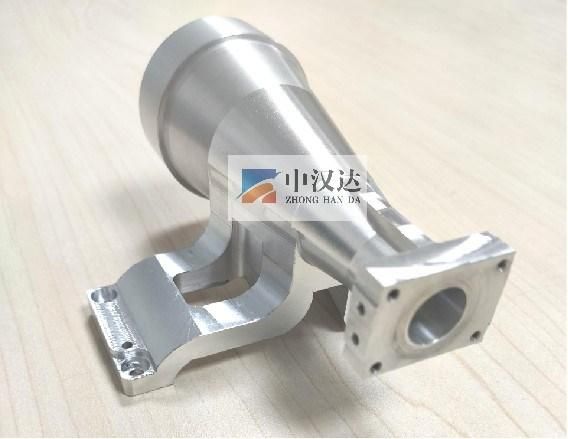

Holder for optical lens

Machining characteristics:
1.Lathe rough turning, stock left out.
2. CNC 4-axis rough machining.
3.Aging treatment to fully remove the cutting stress in the workpiece.
4.Lathe finish machining, dimensions machined to the requirement, cylindricity of  installation positions of internal optical components is within 0.007mm, and concentricity within 0.01mm.
5.The shaft is to be finished by milling inside and outside the workpiece, and the position accuracy, perpendicularity and flatness shall be within 0.02mm.

Surface Treatment:
Black anodizing, meeting the requirements of environmental protection

Inspection:
The places where accuracy is required meet the requirements of drawing, and the flatness and perpendicularity are within 0.02mm, and cylindricity 0.007mm, and co-axiality 0.01mm.  it is inspected with CMM, and finished product reports from CMM are generated.
