• Model NO.：OURS-2014
• Dimension：as Per The Client
• Weight：as Per The Client
• Warranty：1 Year
• Power：50-200kw
• Transport Package：Standard Container
• Specification：CE, SGS, ISO
• Trademark：jsours
• Origin：China(Mainland)
• HS Code：8424200000
• Production Capacity：6-7 Sets,Year

Basic Info.

Model NO. OURS-2014 Dimension as Per The Client Weight as Per The Client Warranty 1 Year Power 50-200kw Transport Package Standard Container Specification CE, SGS, ISO Trademark jsours Origin China(Mainland) HS Code 8424200000 Production Capacity 6-7 Sets/Year

Product Description

Turn-Key Powder Coating Production Line with Full Stages

Product advantages:
1. Operation under normal temperature
2. Simple structure with high-performance
3. Highly efficient process automation

Operating principle:
The workpiece is the positive electrode and the paint atomization device is the negative electrode which is connected with Negative High Voltage, thus high-voltage electrostatic field appears between the two poles, then the paint sprayed by the gun is electrified. The paint covers the workpiece and flow to the surface of the workpiece with certain direction along the power line, which creates the uniform membrane with strong adhesive force.

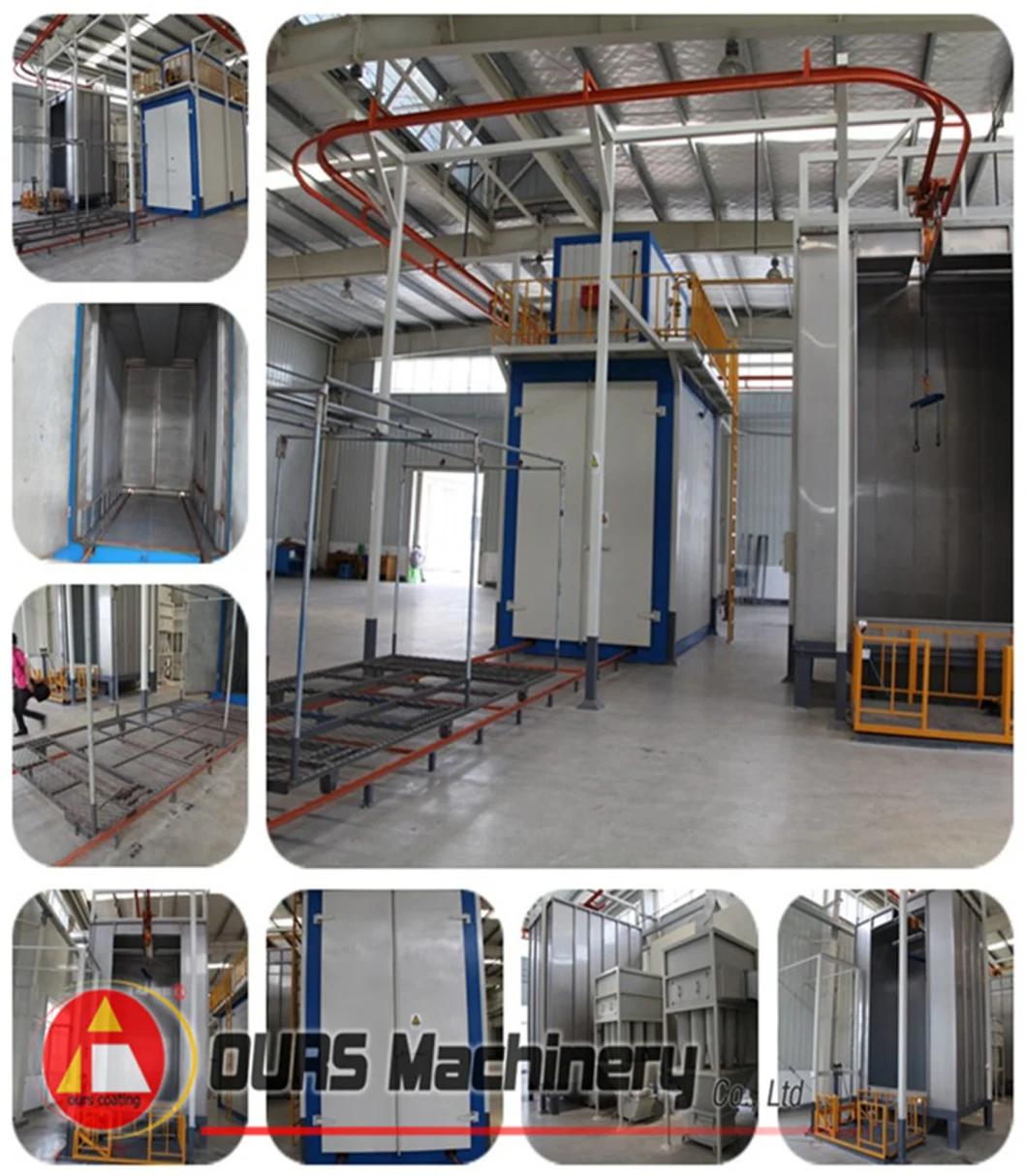

Main parts of the full line:
1. Pretreatment device
2. Powder coating gun
3. Electrostatic control equipment
4. Powder supplying system
5. Recovery system
6. Powder spraying booth
7. Auxiliary systems



No.	Item	Description
1	Voltage	60-90 KV
2	Power	10-20μA
3	Velocity pressure	0.30-0.55 MPa
4	Atomizing pressure	0.30-0.45 MPa
5	Pressure for cleaning the gun	0.5MPa
6	Fluidization pressure of powder-supplying barrel	0.04-0.10 MPa
7	Space between the spraying mouth and the workpiece	150-330mm
8	Speed of conveying chain	4.5-5.5m/min



*Buyer Feedback:
We are professional in electrophoretic painting line project as customized. To provide you more details and quotation, would you pls let me know the following information:
1. What is the max. and min. size of workpiece? Would you pls send us some pictures?
2. What is the max. weight of  the workpiece?
3. How many workpieces will you paint per day? How many working hours is it per day?
4. What is your available space for this coating line project?
5. What is the heating source?(Natural gas, LPG, diesel oil, electricity)
6. Do you need to change colors frequently?
7. What is the curing condition (180-200ºC in 15-20mins, or 200ºC in 10mins?)
8. What kind of pretreatment system do you use (spray pretreatment or dipping type)?

If you are interested in our products, pls don't hesitate to contact us, we will give you the most professional reply and support within a short time.
