• Model NO.：ZYYX
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Certificate：CE,
• Operation Language：English or as Per Client`S Required
• Quality System：ISO9001
• Guarantee Time：First Year Free, Lifetime Services
• Controlling System：Mitsubishi PLC & Converter
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom

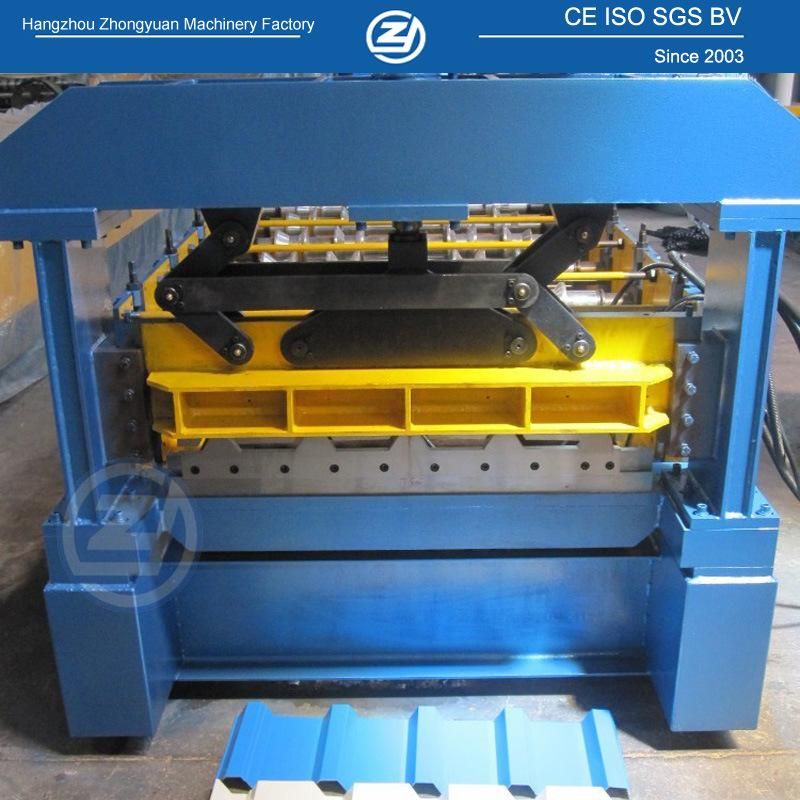

• Cutting Style：Automatic Cut to Length
• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Machine Size：About 10*1.6*1.4m
• Main Motor：7.5kw
• Transport Package：40gp
• Specification：CE SGS BV ISO
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

ItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.9 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

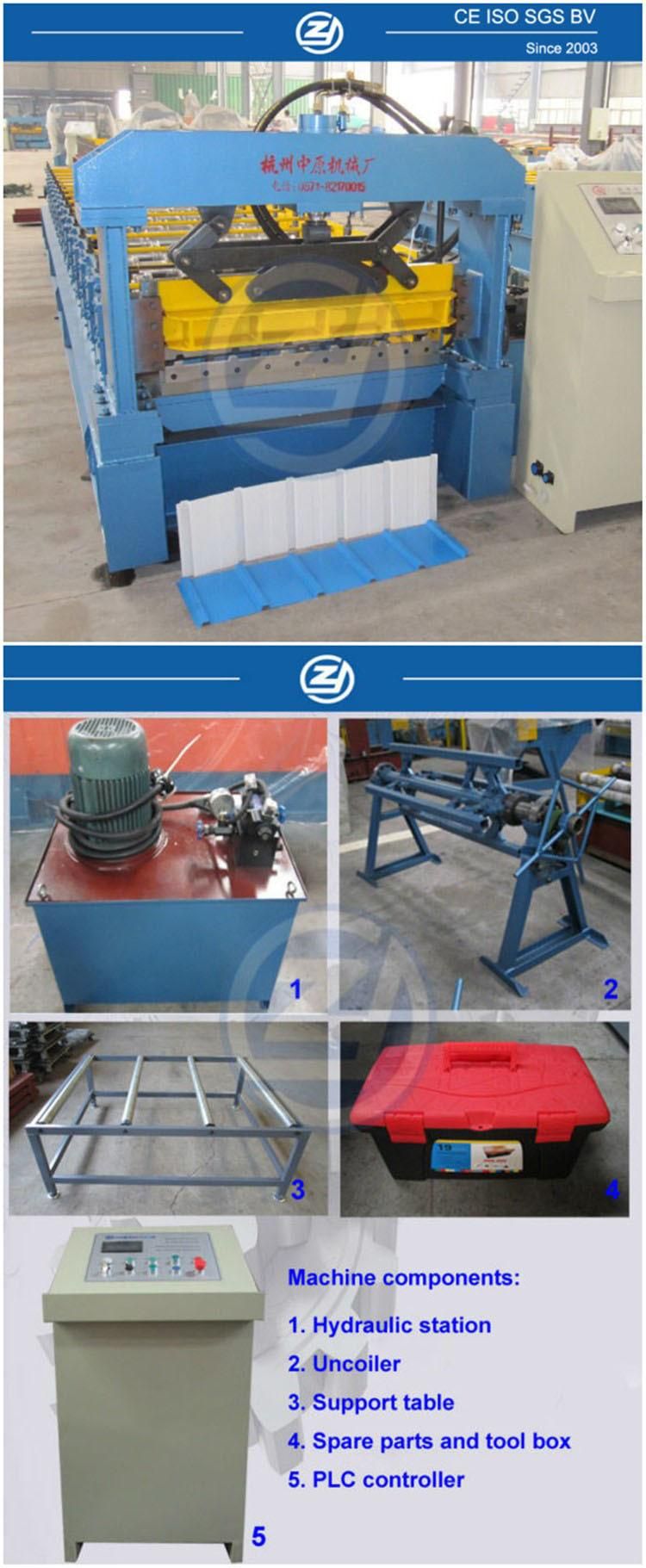

Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set





Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days after received advaced payment.



WHY US?

We care about QUALITY
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.

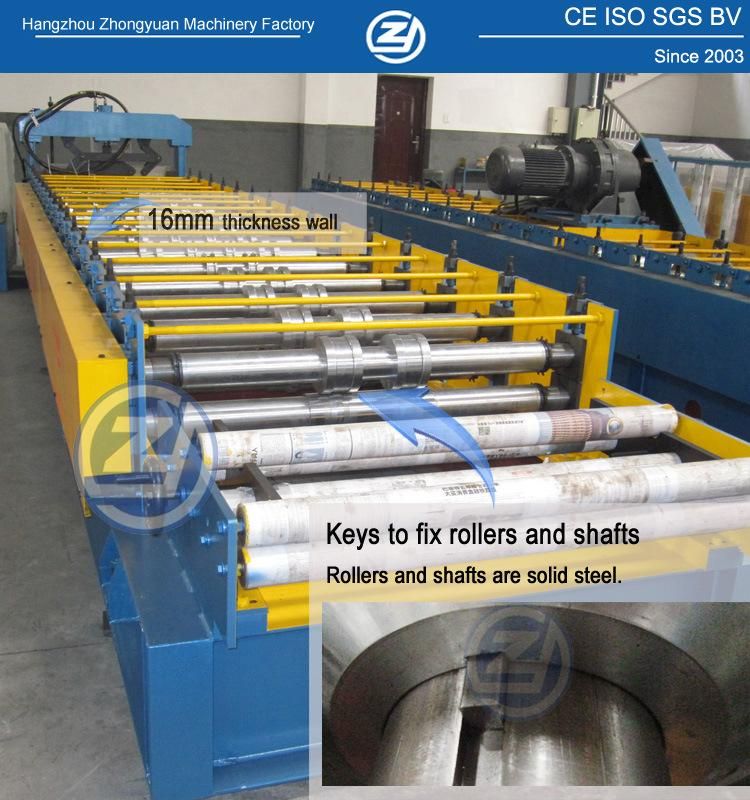

Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.

We care about USER EXPERIENCE
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

We care about YOUR CONCERN
 Delivery: in only 5-8 weeks
 Container was sealed
 Machine installing and training: engineer overseas sevices
 Inspecting and testing machine: before shiping

We care about the "SPECIAL"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
                    15 years experience engineers




FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
