• Model NO.：KDEQ-02-034
• Power Source：Hydraulic Pressure
• Cutting Mode：Saw Cutting
• Transport Package：Plywood Case
• Specification：800mm*800mm*1700mm
• Trademark：Kiande
• Origin：China
• HS Code：8461500090
• Production Capacity：10 Set Per Month

Basic Info.

Model NO. KDEQ-02-034 Power Source Hydraulic Pressure Cutting Mode Saw Cutting Transport Package Plywood Case Specification 800mm*800mm*1700mm Trademark Kiande Origin China HS Code 8461500090 Production Capacity 10 Set Per Month

Product Description

Busbar profile cutting machine busbar housing shearing machine

Technical parameter of busbar enclosure shearing machine:

Item	Parameters
Cutting angle	45°/ 90°
Max. sawing width	300/300/400/600/680mm
Max sawing height	125/155/220/340/460mm
Sawing capacity; round bar	120/140/220/310/420mm
Sawing capacity; square tube	110*110mm; 130*130mm; 190*190mm; 280*280mm; 400*400mm
Main motor power	4.0/4.0/5.5/7.5/11KW
Blade size	Φ355-455mm; Φ355-500mm; Φ355-610mm; Φ355-850mm; Φ500-1200mm
Spindle speed	3600/2850/2200/1950/1000rpm
The height of the worktable	850/850/920/1050/1380mm
Required air pressure	5-8kg/cm2

Introduction of Kiande--professional supplier of busbar machine:

We are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine. If you want to know how we use the machine to assemble the busbar, please kindly get the referenced pictures as below.

Step 1 Prepare all busbar finished components

Step 2 Use related busbar machines to process the busbar

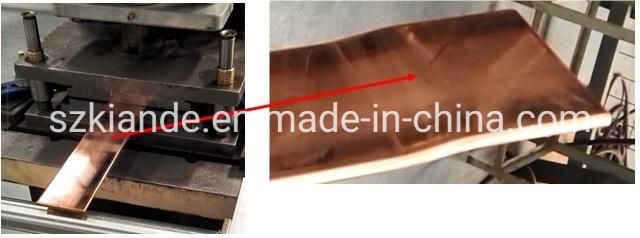

Busbar machine copper processing
Need Kiande's busbar gas-hydraulic copper bar punching machine(This is one-time punching forming. In the market, some busbar manufacturer buys three-in-one busbar machine to bend and punch copper or aluminum bar. As the bar experiences many procedures, the accuracy is not good which will cause the phase distance too small to cause the short circuit.)

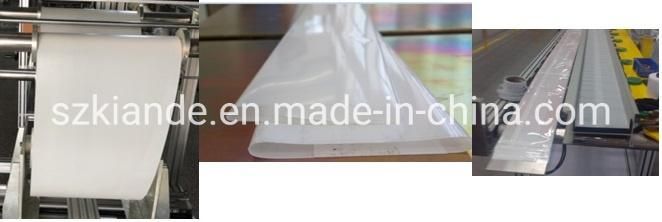

Busbar machine mylar sleeve processing machine polyester film forming machine
Need Kiande's mylar/polyester film forming machine. In the market, some busbar manufacturer requests workers to wrap the bar manually. Different workers have different workmanship. If employer meets the inexperienced workers, the wrapping part will have some gaps which will cause the short circuit.

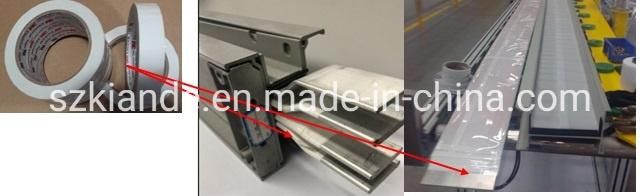

Busbar machine busbar accessory 3M insulation film Conductor(Copper bar/Aluminum bar) end wrapping

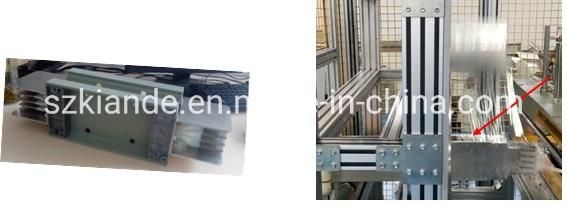

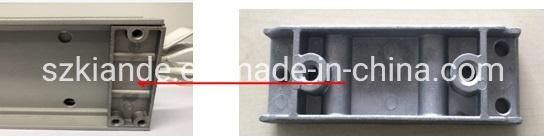

Busbar machine busbar accessory Aluminum profile capped casting capped end / Busbar support

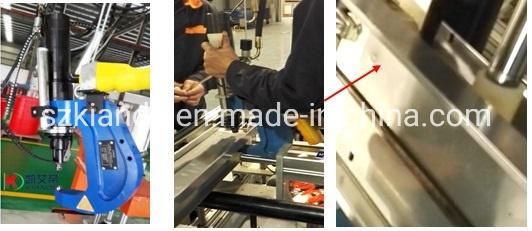

Busbar machine Busbar riveting machine

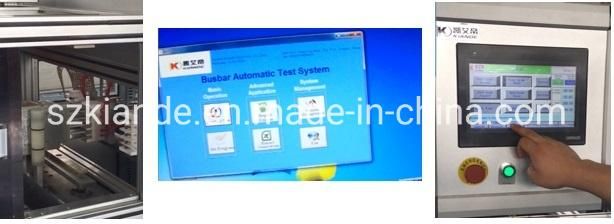

Busbar machine busbar inspection machine busbar testing machine

Busbar machine busbar packing machine busbar packaging machine

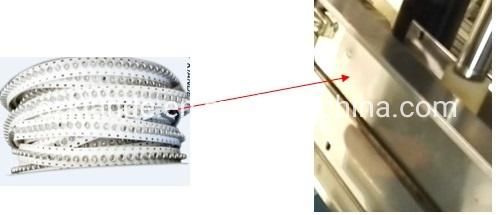

Busbar machine busbar accessory rivet the rivet is to connect the profiles instead of bolts more stable and strengthen

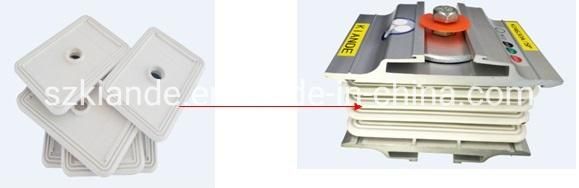

Busbar machine busbar accessory joint isolator Busbar joint pack

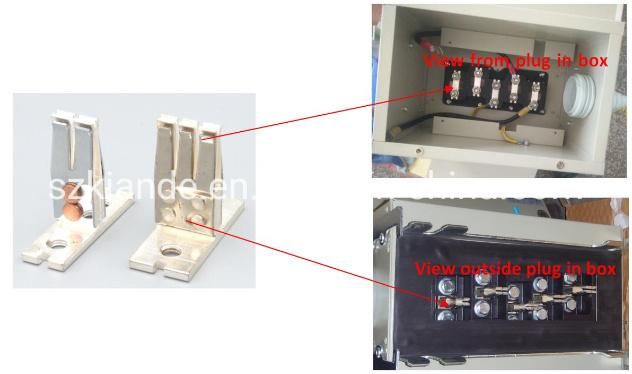

Plug-in contacts clips Busbar accessory Plug-in earth contact clip
