• Model NO.：COLO-150AB
• Material：Metal
• Application：Polishing Machine
• Type：Abrasive Polishing
• Rated Voltage：220V,380V
• Frequency：50Hz,60Hz
• Weight：380kgs-1500kgs
• Capacity：150L,350L,450L,650L
• Motor Power：2.2kw--7.5kw
• Transport Package：Carton or Wooden Box
• Specification：150L,350L,450L,650L
• Trademark：FEIFU
• Origin：Mainland, China
• HS Code：8479820090
• Production Capacity：50000jpcs,Ye

Basic Info.

Model NO. COLO-150AB Material Metal Application Polishing Machine Type Abrasive Polishing Rated Voltage 220V/380V Frequency 50Hz/60Hz Weight 380kgs-1500kgs Capacity 150L/350L/450L/650L Motor Power 2.2kw--7.5kw Transport Package Carton or Wooden Box Specification 150L/350L/450L/650L Trademark FEIFU Origin Mainland, China HS Code 8479820090 Production Capacity 50000jpcs/Ye

Product Description

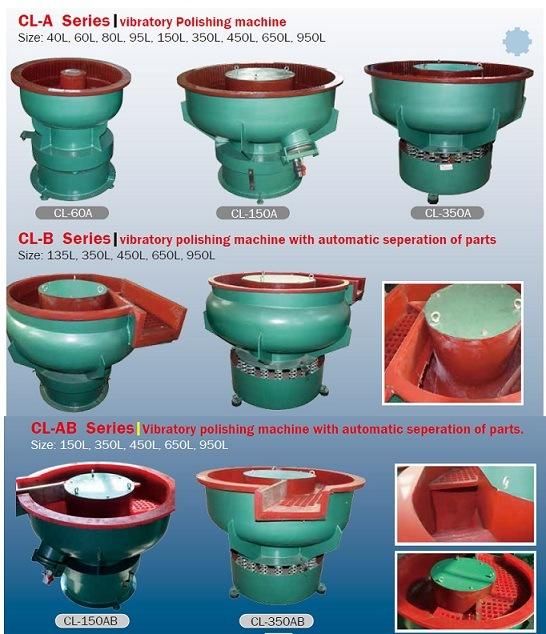

COLO Vibratory Abrasive Polishing Equipment

We also have the A type,B type and AB type for your choices depend on your different requests. A type are without  seperator. B type are especially for the heavy-duty workpieces as cast steel,die cast zinc or others. AB type are for the not so much heavy parts such as alu.parts,resin, or wood,plastics parts.






The parameter as below.

Model	Capacity	Motor power(kw)	Speed (r/min)	Amplitude (mm)	Rubber lining(mm)	Weight (kg)	Size L*W*H(mm)
CL-40(A)	40	0.55	1450	0.8-3	6-12	65	600*500*600
CL-60(A)	60	0.75-1.1	1450	0.8-3	6-12	100	700*640*700
CL-80(A)	80	1.1	1450	0.8-3	6-12	110	840*640*740
CL-95(A)	95	1.1	1450	0.8-3	6-12	125	860*800*750
CL-135(B)	135	2.2-3.0	1450	0.8-4	6-15	350	1150*1060*900
CL-150(A)	150	2.2-3.0	1450	0.8-4	6-15	380	1150*1050*900
CL-150(AB)	150	2.2-3.0	1450	0.8-4	6-15	380	1150*1100*900
CL-150B	150	2.2-3.0	1450	0.8-4	6-15	380	1150*1100*900
CL-350(B)	350	5.5	1450	0.8-6	6-20	800	1500*1350*1050
CL-350(A)	350	5.5	1450	0.8-6	6-20	800	1450*1350*1050
CL-350(AB)	350	5.5	1450	0.8-7	6-20	800	1450*1350*1050
CL-350B	350	5.5	1450	0.8-7	6-20	800	1450*1350*1050
CL-450(A)	450	5.5	1450	0.8-6	6-20	1000	1550*1430*1050
CL-450(AB)	450	5.5	1450	0.8-7	6-20	1000	1600*1430*1050
CL-650(A)	650	7.5	1450	0.8-8	6-20	1500	1900*1850*1300
CL-650(B)	650	7.5	1450	0.8-8	6-20	1500	1850*1800*1400
CL-650(AB)	650	7.5	1450	0.8-8	6-20	1500	2000*1850*1300



1.How to work?

Vibratory tumble finishing systems produce a cutting action by shaking the processing vessel (the finishing tub) at a high speed,causing the tumbling media and parts to scrub against each other. This scrubbing action precisely abrades the parts to remove burrs.A shaft with rotating eccentric weights mounted on the tub produces the shaking action.


2. for what workpieces?

Mainly used in bicycles, aluminum die casting, zinc die casting, furniture hardware accessories, clothing hardware accessories, luggage hardware accessories, glasses accessories, watches andclocks accessories, locks, electronic accessories, all kinds of jewelry, jewelry and powder metallurgy, resins.

3. What is the Features and advantages for the Vibration Polisher ?

Use special vibration motor, vibration performance, low maintenance, production cost-effective.
The machine's amplitude, flip strong, high cutting force, suitable for large quantities, small size workpiece grinding, polishing and processing.
The process will not destroy the original size and shape of the workpiece.
Can be customized according to customer requirements frequency control, time control, plus environmental protection, cover noise work



Welcome to us for more informations.
