• Model NO.：200-300 kg,h
• Capacity(Kg/H)：100-1000
• Pre-Mixer Volume (L)：300-1000
• Cooling Band Nip Roll Length(mm)：600-1500
• Extruder Screw Diameter(mm)：46-80
• Grinding System Pin Disk Speed(Rpm)：7000-2900
• Grinding System Feeding Motor Power(Kw)：0.55-0.75
• Cooling Band Stainless Steel Belt(mm)：3000-5000
• Transport Package：Stardard Export Package
• Specification：CE, Sira, ISO9001: 2003, SGS
• Trademark：Yuanli
• Origin：Yantai, Shandong
• HS Code：84743900
• Production Capacity：50 Sets Per Month

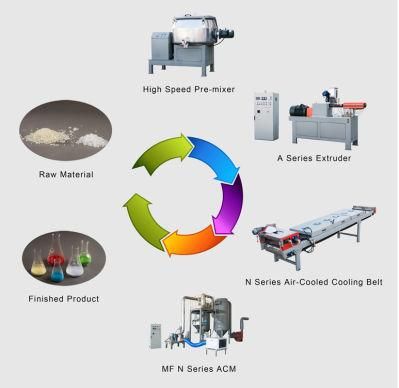

Capacity(kg/h)Pre-mixerExtruderCooling BeltGrinding System100~150GHJ-100GSFJ-44AJFY-408NMF-10N150~200GHJ-150G
FHJ-300ASFJ-46AJFY-408N
JFY-406GMF-15N200~300GHJ-300G
FHJ-300ASFJ-55AJFY-508N
JFY-408GMF-20N400~500GHJ-500W
FHJ-600ASFJ-64AJFY-510N
JFY-508GMF-30N600~750GHJ-500W
FHJ-800ASFJ-66AJFY-610N
JFY-510GMF-40N800~1000GHJ-500W
FHJ-1000ASFJ-80AJFY-612N
JFY-610GMF-50N
±2°C Double temperature PID auto-control. Accuracy ±2Speed adjust systemAdjustable speed by means of frequency inverterFeeding systemVariable by means of frequency inverterCooling systemWater cooledEquipped withScrew feedingPermanent strong-magnetic deviceOverall dimension(mm)
 2650*900*19002900*900*20003600*950*2260
C. Water-cooled Cooling BandModelJFY-306GJFY-408GJFY-510GJFY-610GJFY-612GJFY-515GCapacity(kg/h)100~200200~300400~500500~600600~800800~1200Stainless steel belt(mm)300040005000600060005000Nip roll length(mm)6008001000100012001500Drive power(kw)0.550.751.5445.5Cooling systemWater coolingNip roll diameter(mm)Φ268Variable speedAdjustable speed by means of frequency inverterOverall dimension(mm)3050*1000*11004050*1200*13005050*1400*13006050*1600*13006050*1700*13005050*1800*1300
D. ACM Grinding SystemMain specificationModelMF-10NMF-15SMF-20/25SMF-30SMF-35SMF-40/50SMF-60SMain motor power(kw)7.51115222230/3745 2Pin disk speed(rpm)700065006000/45004500400040002900Classifier motor power(kw)1.12.233444Classifier speed(kw)0~28000~28000~28000~28000~28000~28000~2800Feeding motor power(kw)0.550.550.550.550.750.750.75Grinder cover motor power(kw)
 0.180.180.180.250.25
 Discharge motor power(kw)0.370.370.370.370.370.370.37Rotary sieve motor power(kw)1.51.51.51.51.51.51.5Blower motor power(kw)7.51115/22223030/3745Blower flow rate(m3/min)203040/70707680
 Seperating efficiency≥98%≥98%≥98%≥98%≥98%≥98%≥98%Particle size MESH120~350120~350120~350120~350120~350120~350120~350Capacity(kg/h)100~150150~200200~300/300~400400~500500~600600~800800~1000

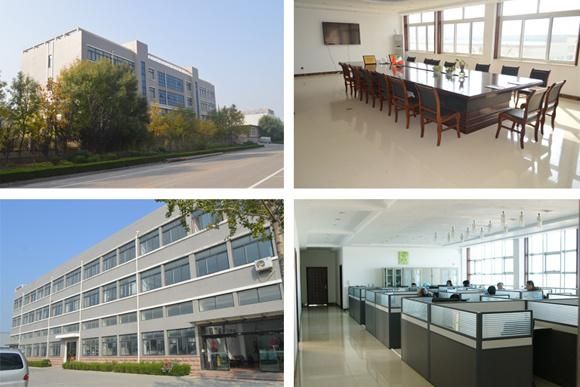

2. Company Profile:

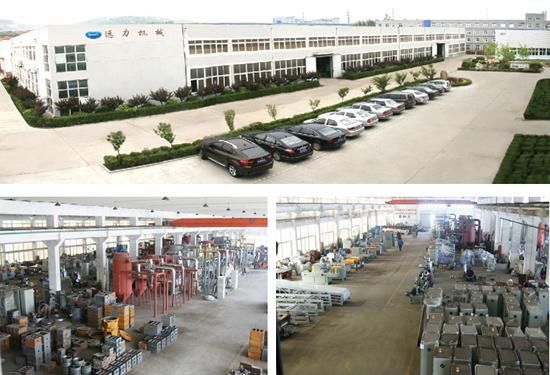

As a first and pioneer powder coating machinerymanufacturer in China,Yantai Yuanli Machinery Manufacturing Co., Ltd.was founded in 1988 with the following ability:
13000m2 of factory; 5500 m2 of workshop
Advance NC and CNC machine shop; High qualified employees
More than 10,000 complete lines have been supplied to China domestic market
More than 100 complete lines have been exported to USA, Germany,Uk,
Turkey,Iran,India,Pakistan,Malaysia,Poland,Vietanam,Italy,etc.
The supplier of very famous brand powder coating producer in China
ISO 9001:2008,CE standard.



3. Our Exhibition:


4. Our Certificatte:


We sincerely welcome customers from all over the world come to visit and negotiation with us!
